Note: The software has been updated.  It can be compatibled with GG, SMS and SG-1000 games.

Note: We have two different instructions, one is for single chip, the other is for dual chip. Please contact me if you need the instructions. Thank you.

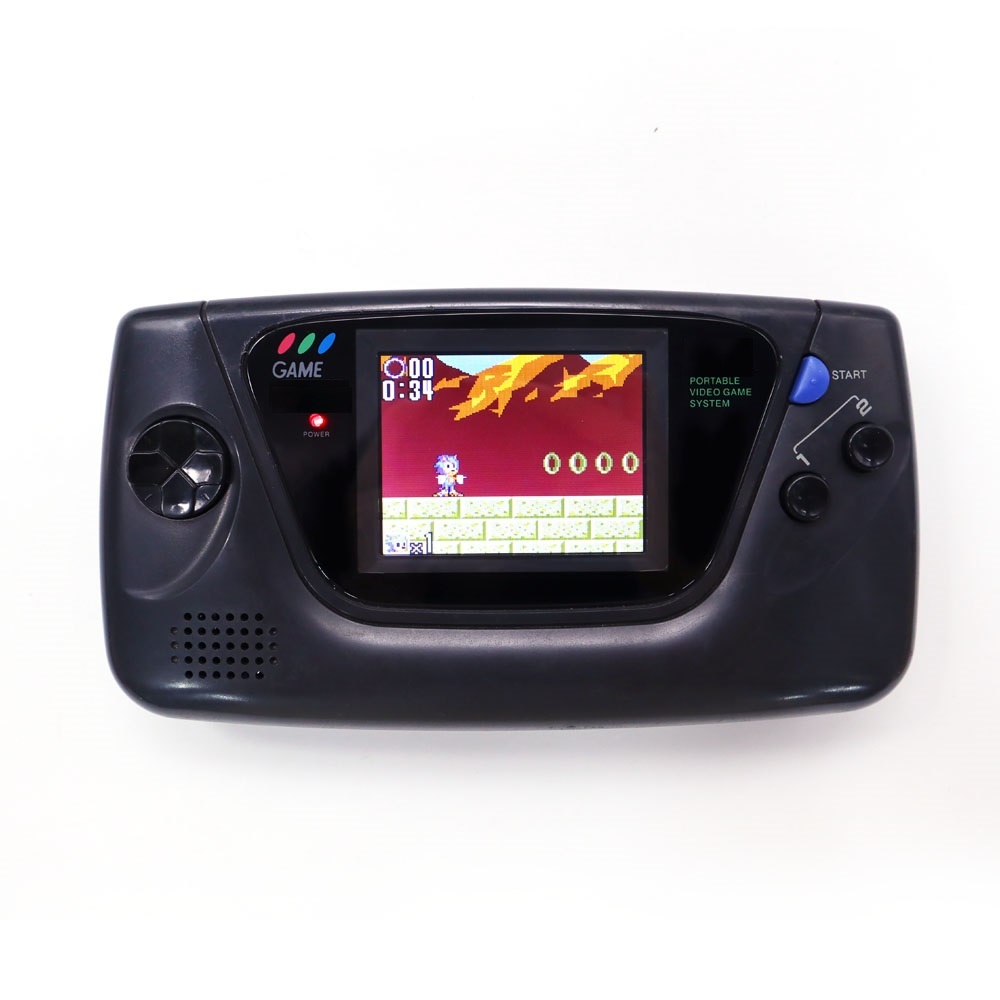

Description:

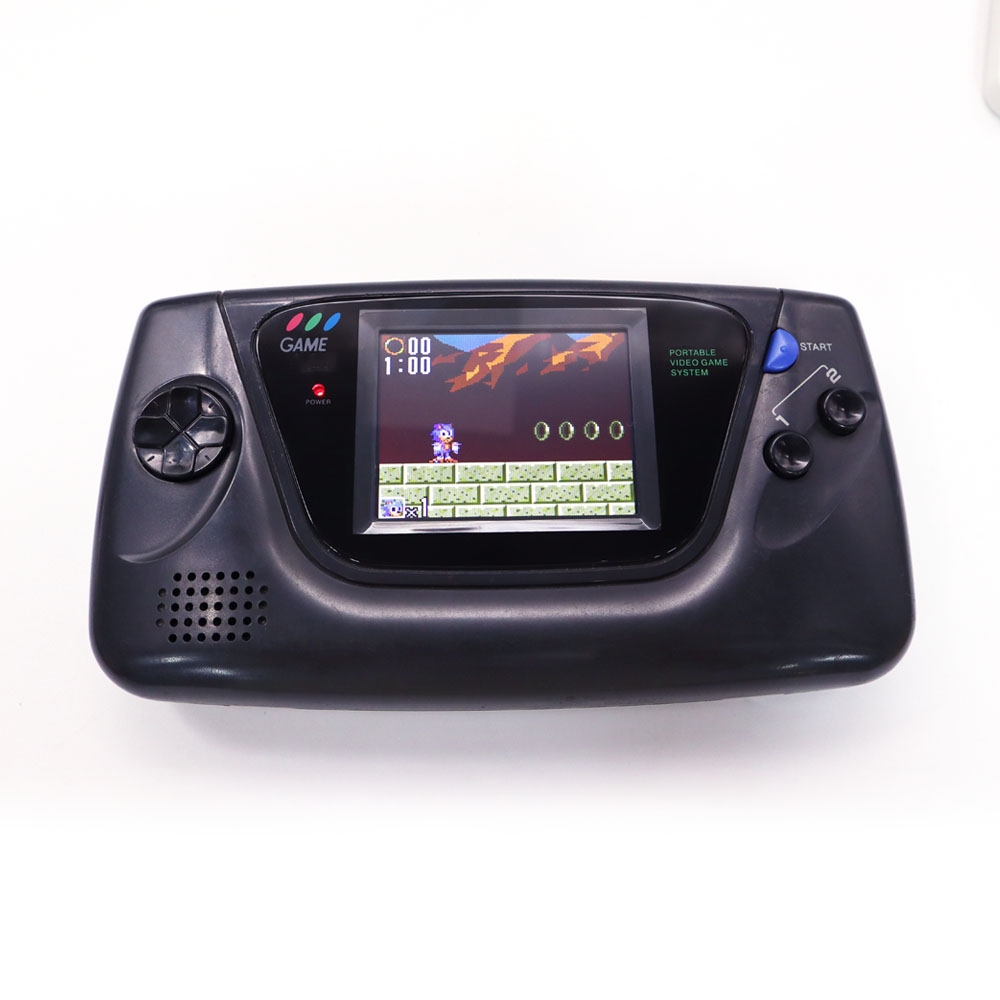

1. 3.5-inch a-Si TFT LCD liquid crystal screen, 320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors
2. Support Sega single chip motherboard and dual chip motherboard:
—-Single chip motherboard:1 ASIC PCB revisions 837-9130/837-9024/837- 8560
—-Dualchip motherboard:2 ASIC PCB revisions 837-7996/837-7719-01 VA0

Note 1: Doesn’t supported: Majesco Game Gear VA4/VA5.

Note 2: The motherboard with the “MADE IN TAIWAN” logo on the motherboard of the game console does not support.

Technical Information:

1. One chip design. More environmentally friendly. More power-saving.
2. Built-in SDRAM cache in the Chip.
3. FPC connect cable design. Simpler wiring and easier installation.
4. Adjust brightness via the thumbwheel.

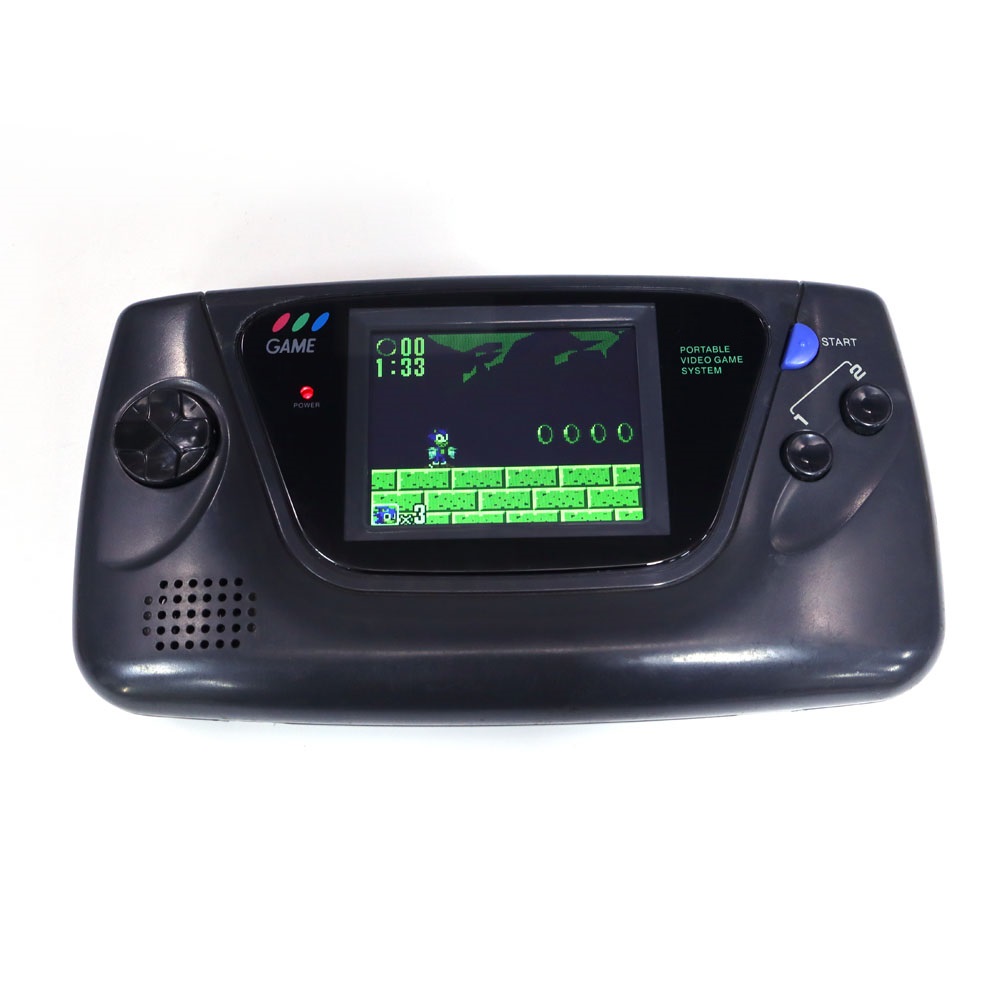

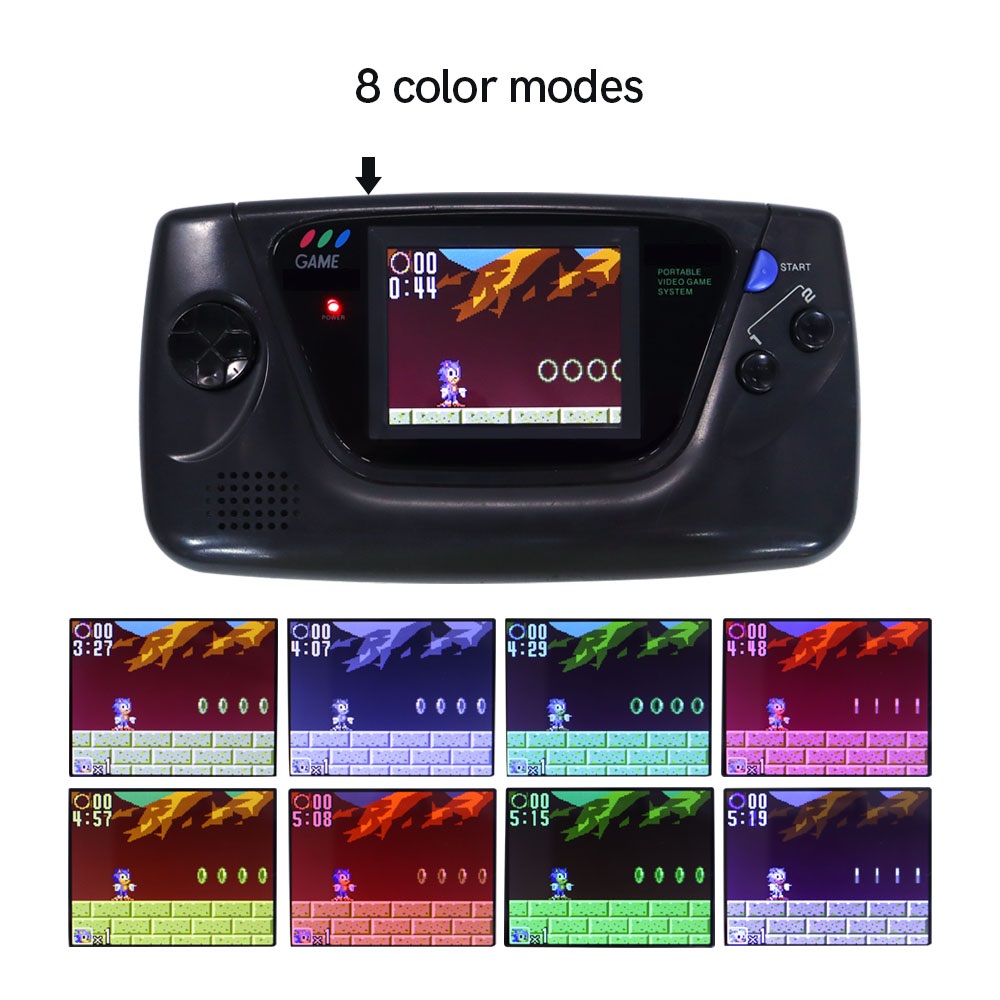

5. 8 color modes. 3 Image Aspect Ratios.
6. VGA output.

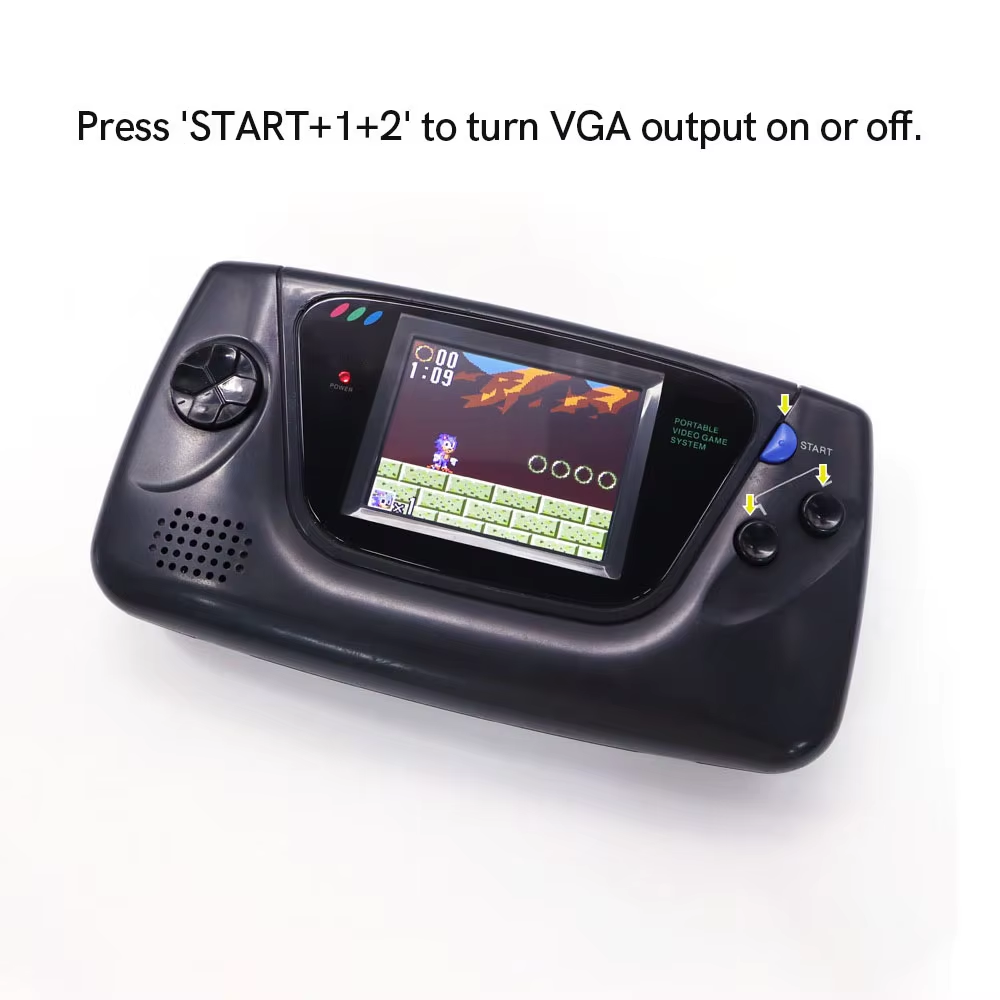

Press ‘START+1+2’ to turn VGA output on or off.

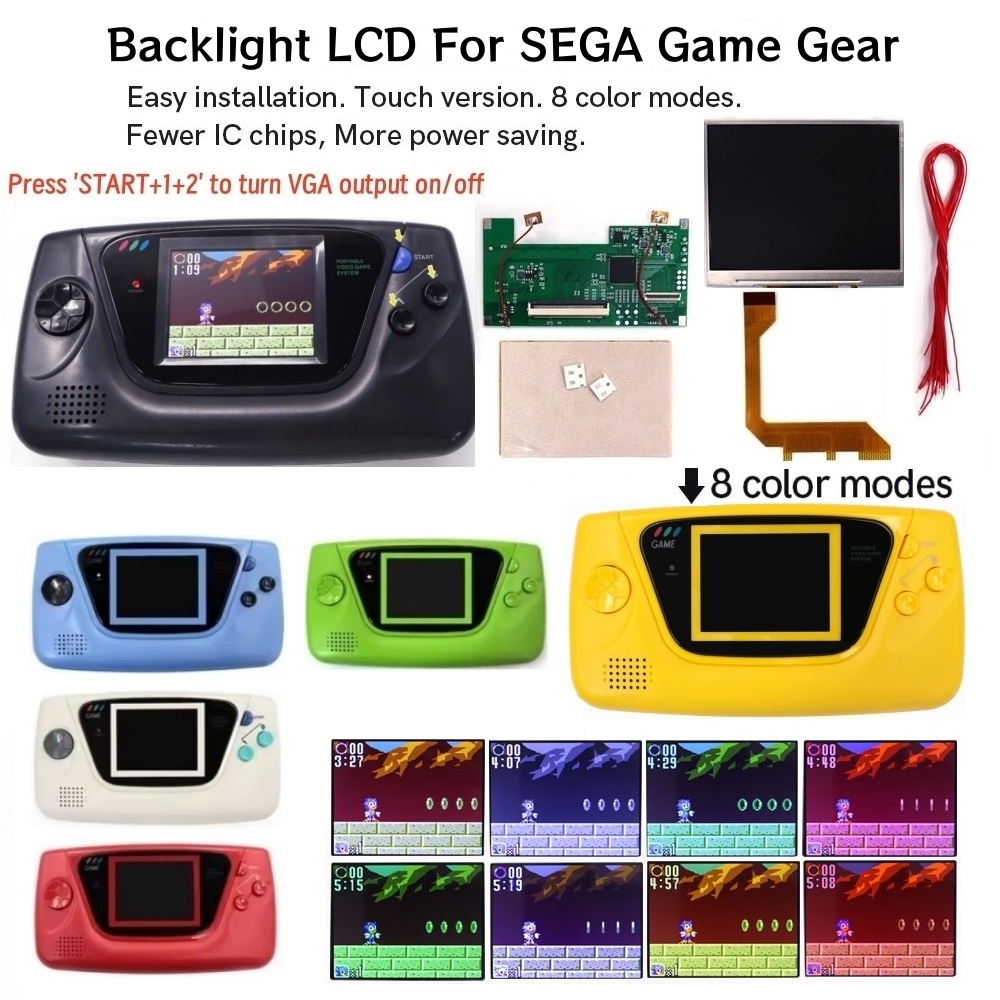

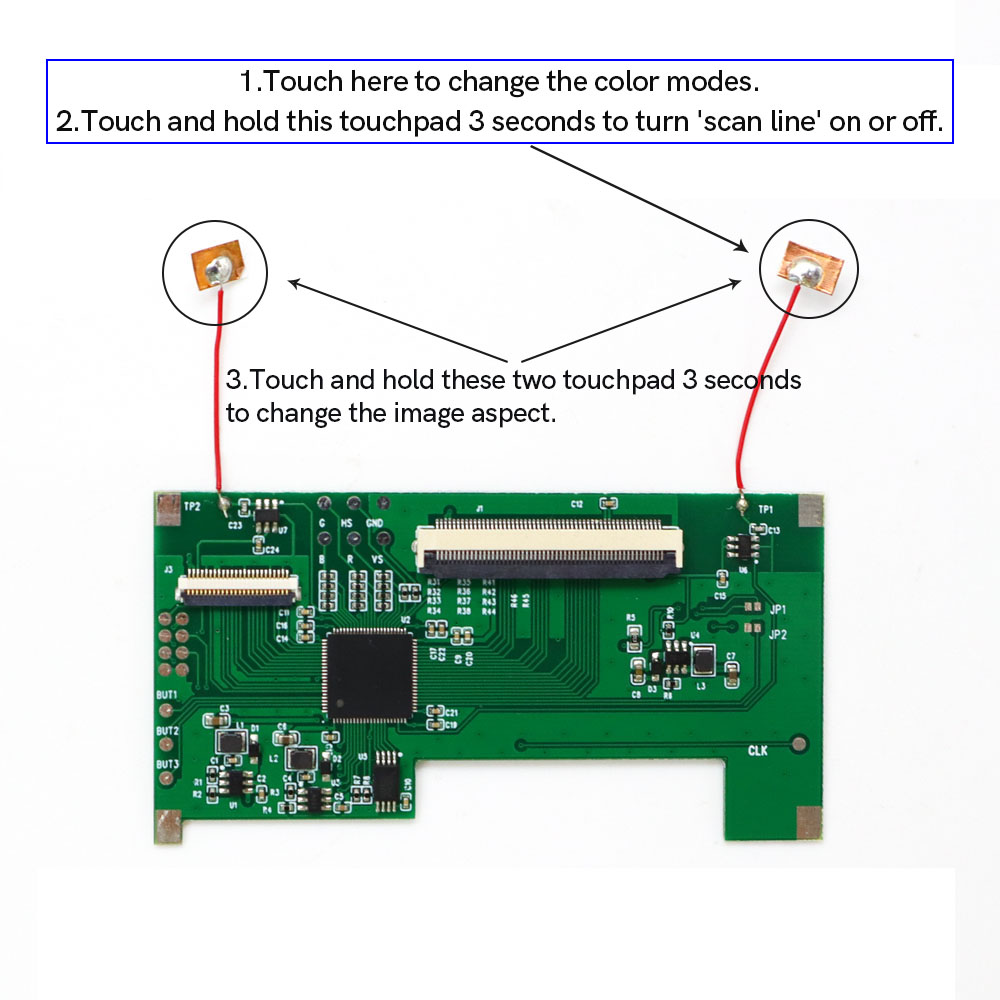

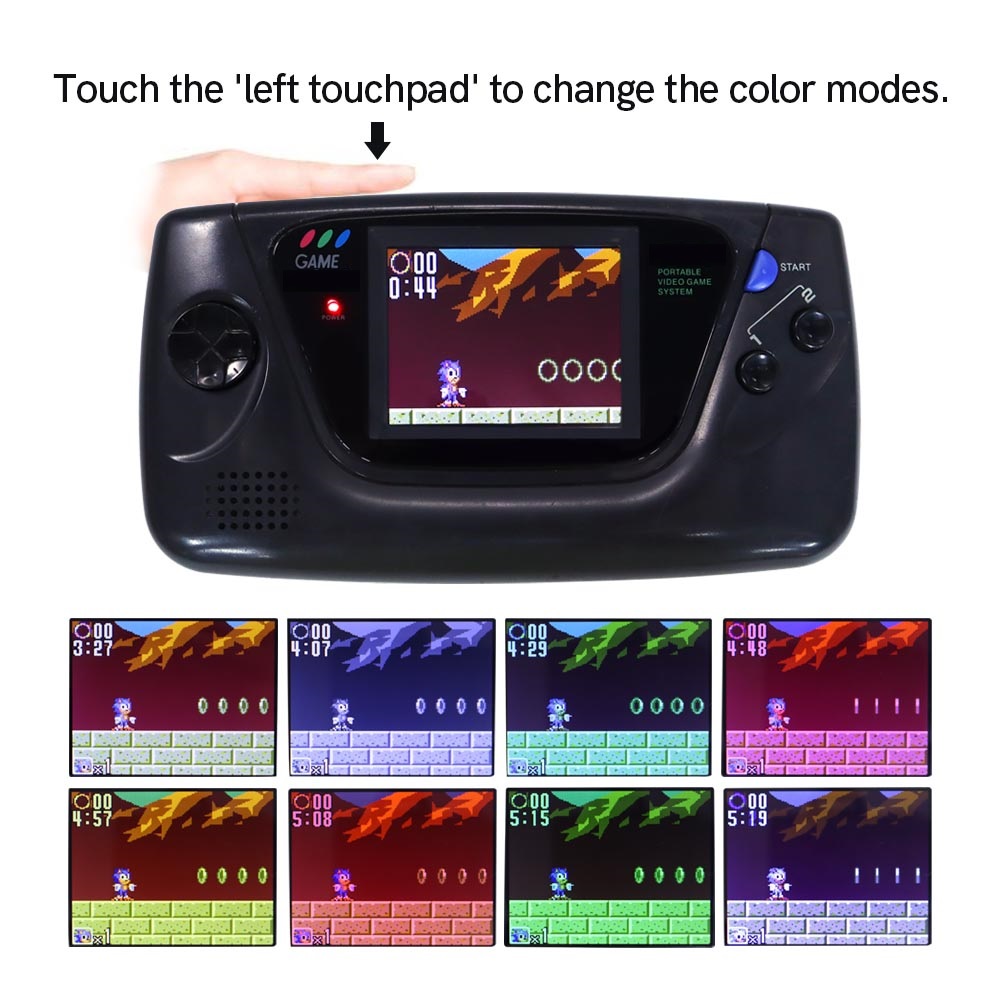

*Touch the ‘left touchpad’ to change the color modes.

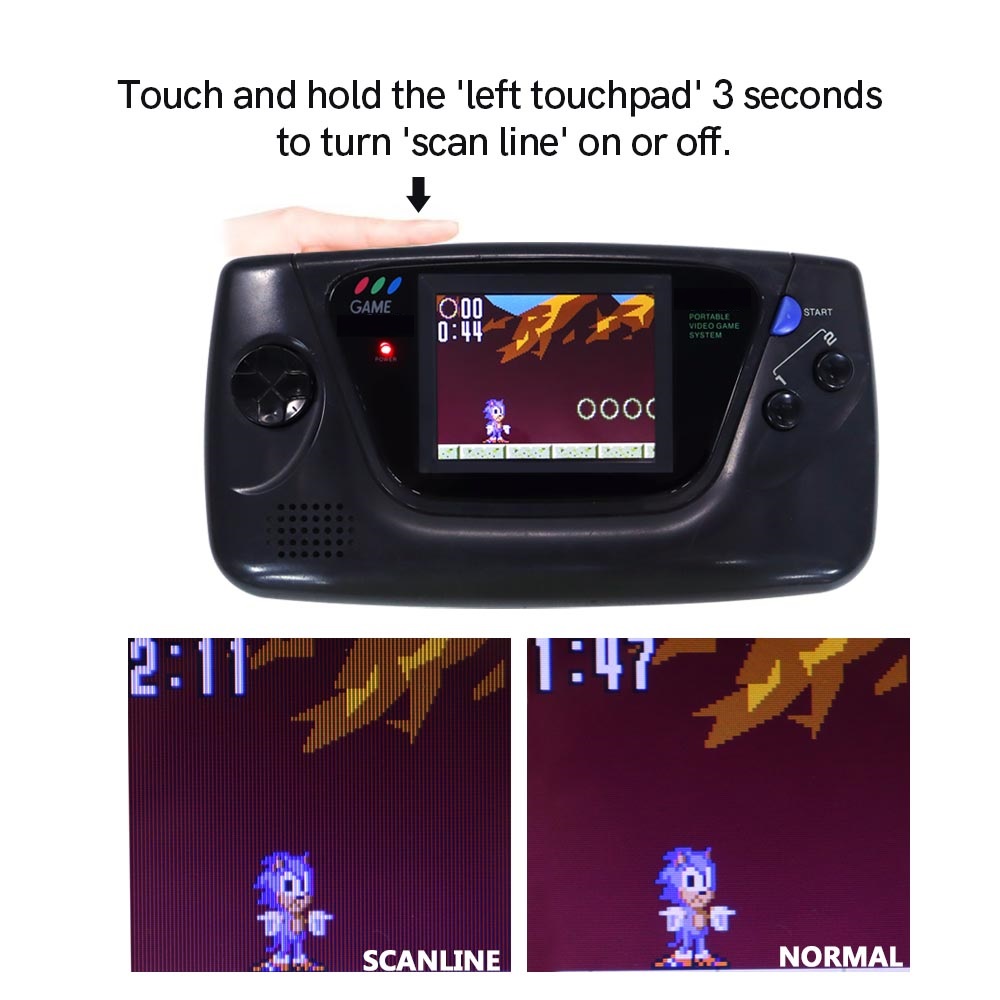

*Touch and hold the ‘left touchpad’ 3 seconds to turn ‘scan line’ on or off.

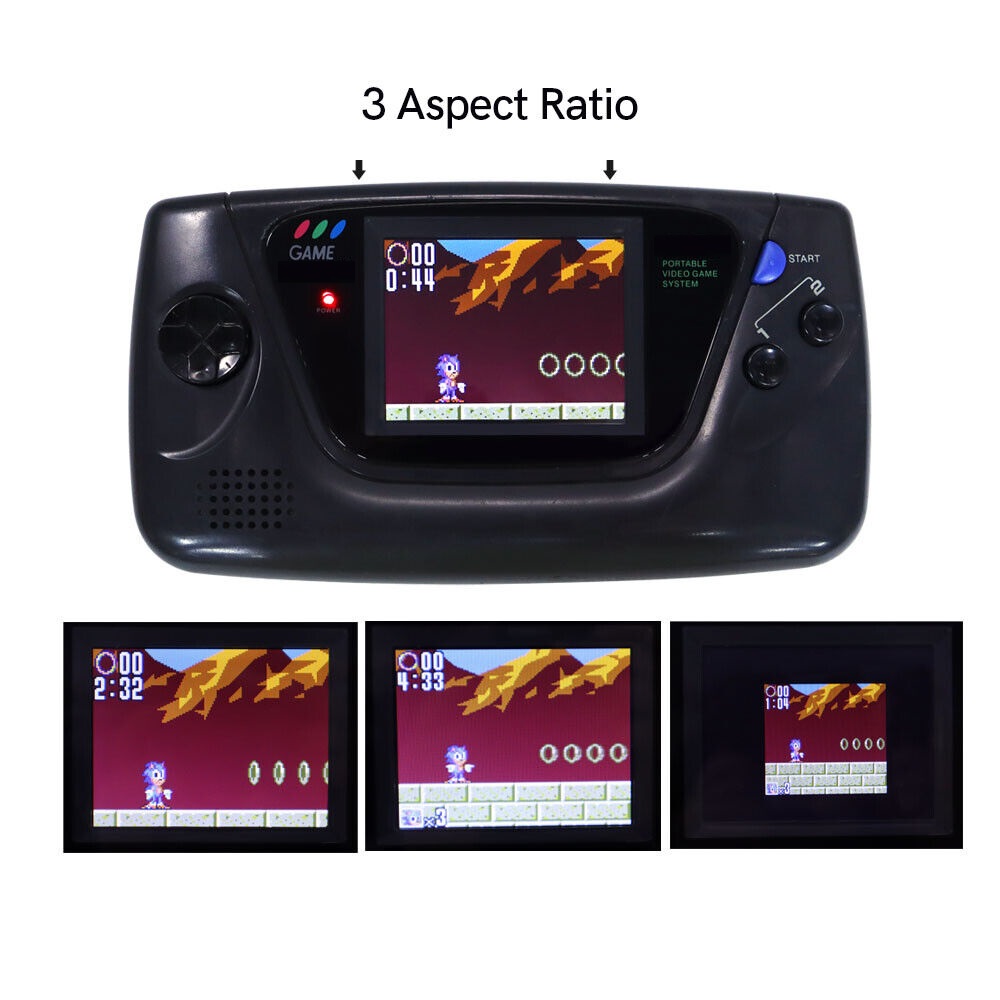

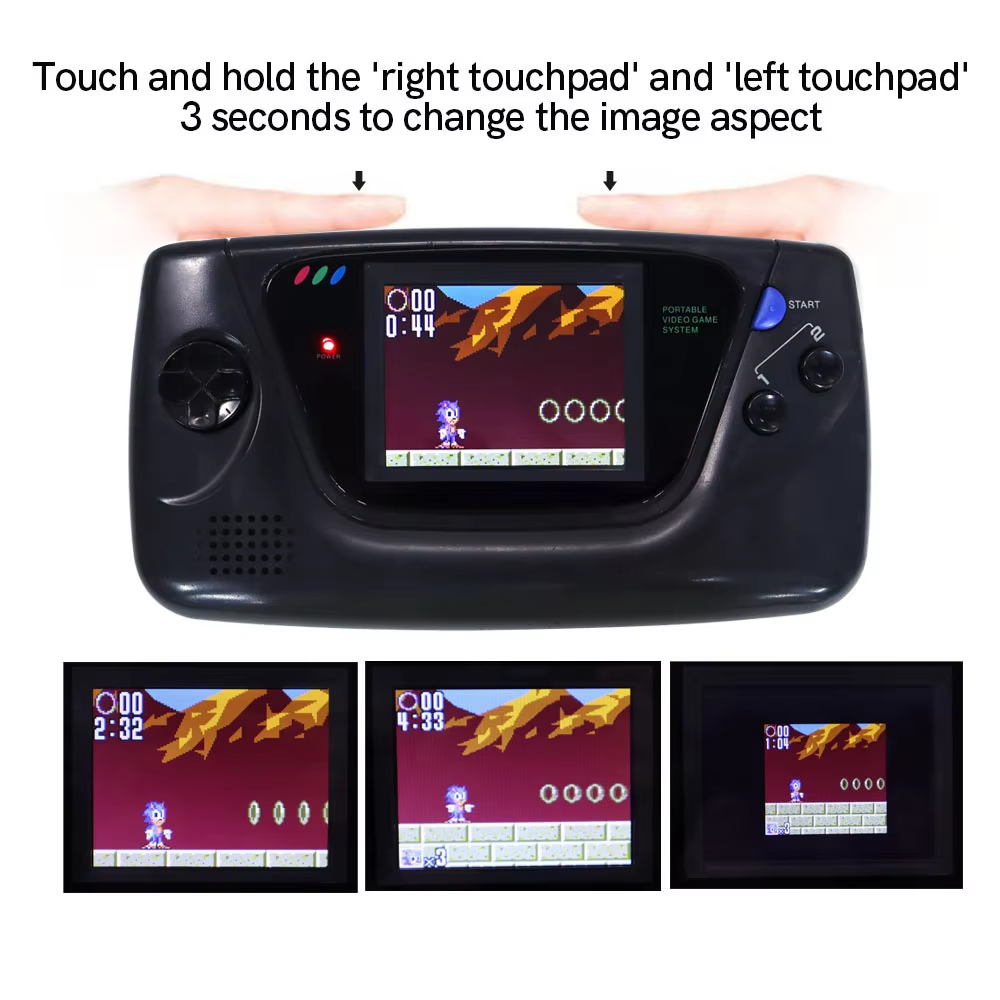

*Touch and hold the ‘right touchpad’ and ‘left touchpad’ 3 seconds to change the image aspect.

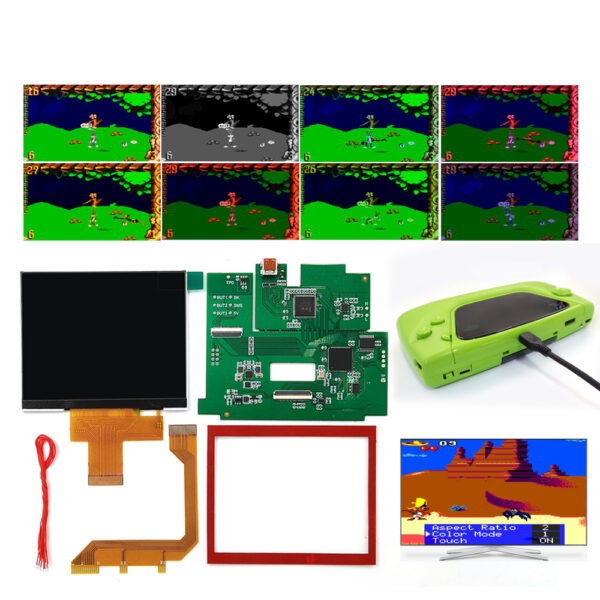

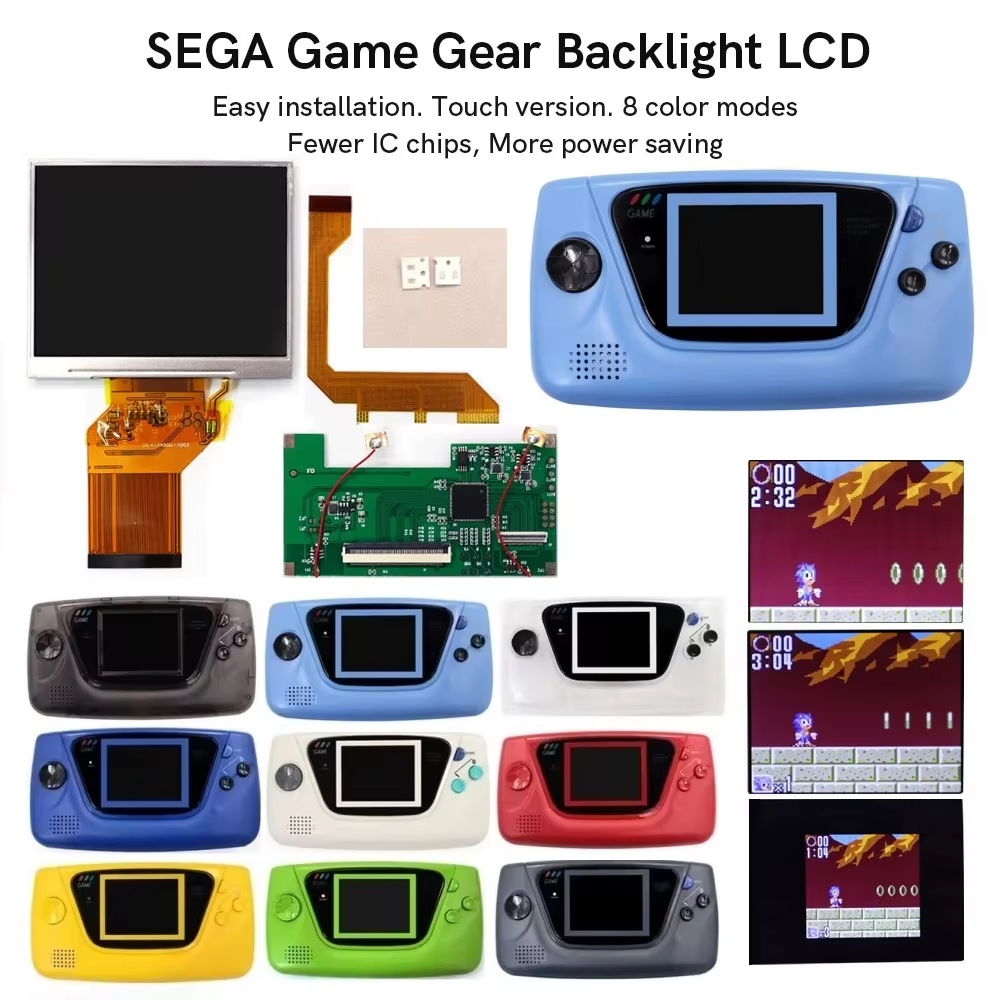

Package included:   (Only LCD Kit without lens)

1x Backlight LCD screen
1x PCB board
1x FPC connect cable
Double-sided tape
5x 10pF capacitors
2x 200Ohm resistors
several red wires

Or:  (Only LCD Kit with lens)

1x Backlight LCD screen
1x PCB board
1x FPC connect cable
Double-sided tape
5x 10pF capacitors
2x 200Ohm resistors
several red wires
1x Glass lens

Or:  (LCD Kit with shell case)

1x Backlight LCD screen
1x PCB board
1x FPC connect cable
Double-sided tape
5x 10pF capacitors
2x 200Ohm resistors
several red wires
1x Glass lens
1x pre-cut shell with buttons

Instructions: (For single chip)

Instructions: (For dual chip)
