Note: The glass lens has the logo!!!

Note: There are two versions LCD mod kit for the 3.5” LCD display. ‘Without HDMI version’ and ‘HDMI version’.
We sell ‘HDMI version’ lcd kit with shell case in this link. The ‘HDMI version’ requires trimming the shell.

Note: If you purchase only the LCD screen kit, you will need to trim the housing shell by yourself.

1. Support Sega single chip motherboard and dual chip motherboard:
–Single chip motherboard:1 ASIC PCB revisions 837-9130/837-9024/837- 8560

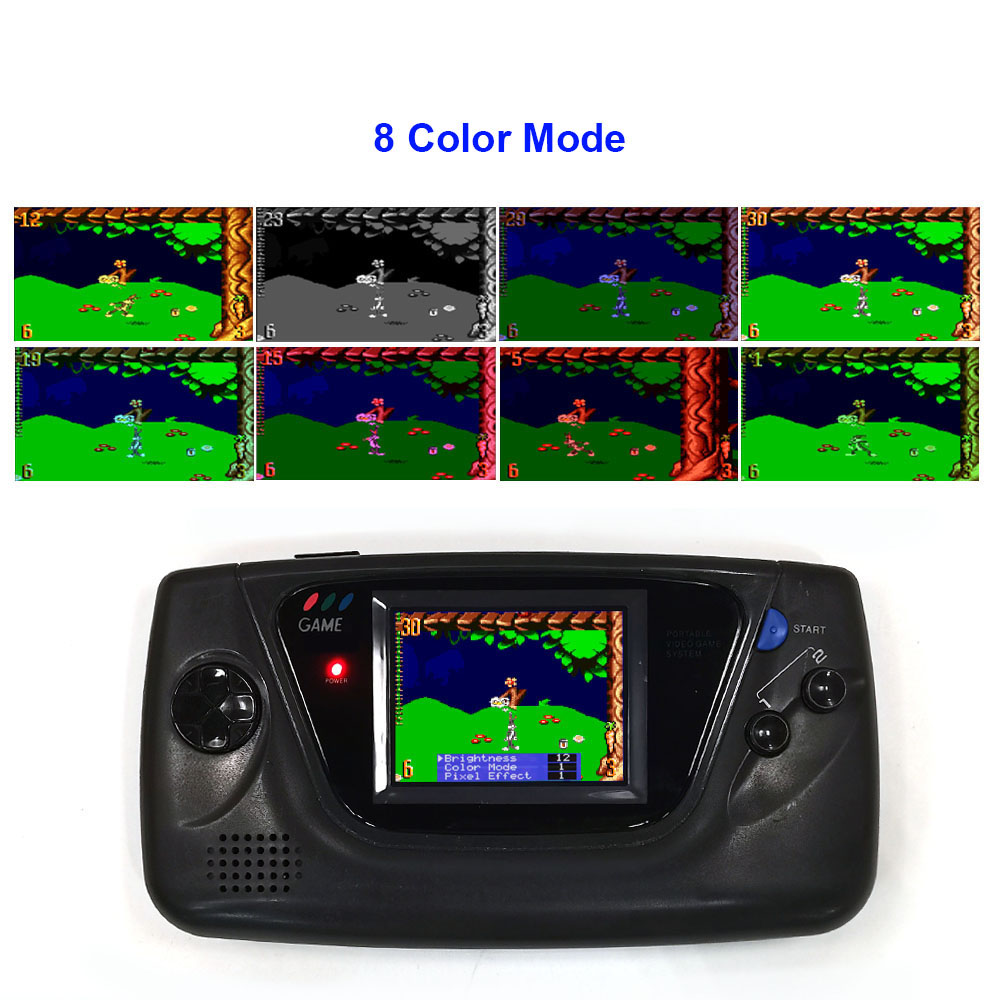

–Dualchip motherboard:2 ASIC PCB revisions 837-7996/837-7719-01 VA0/837-7398-03

Description:

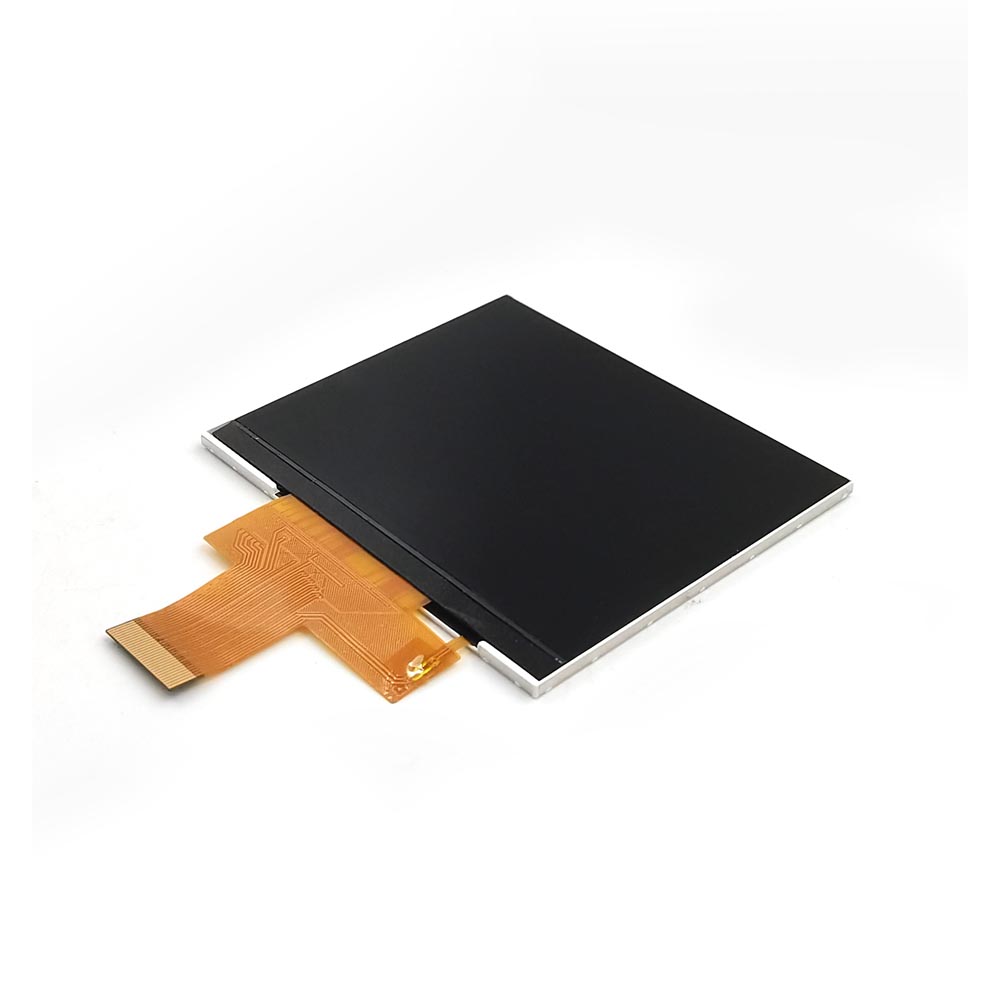

1. 640×480 display resolution. HD IPS LCD.
2. Same display size as the original screen.
3. Wide View angle up to 178 degree.
4. Built-in OSD Menu!

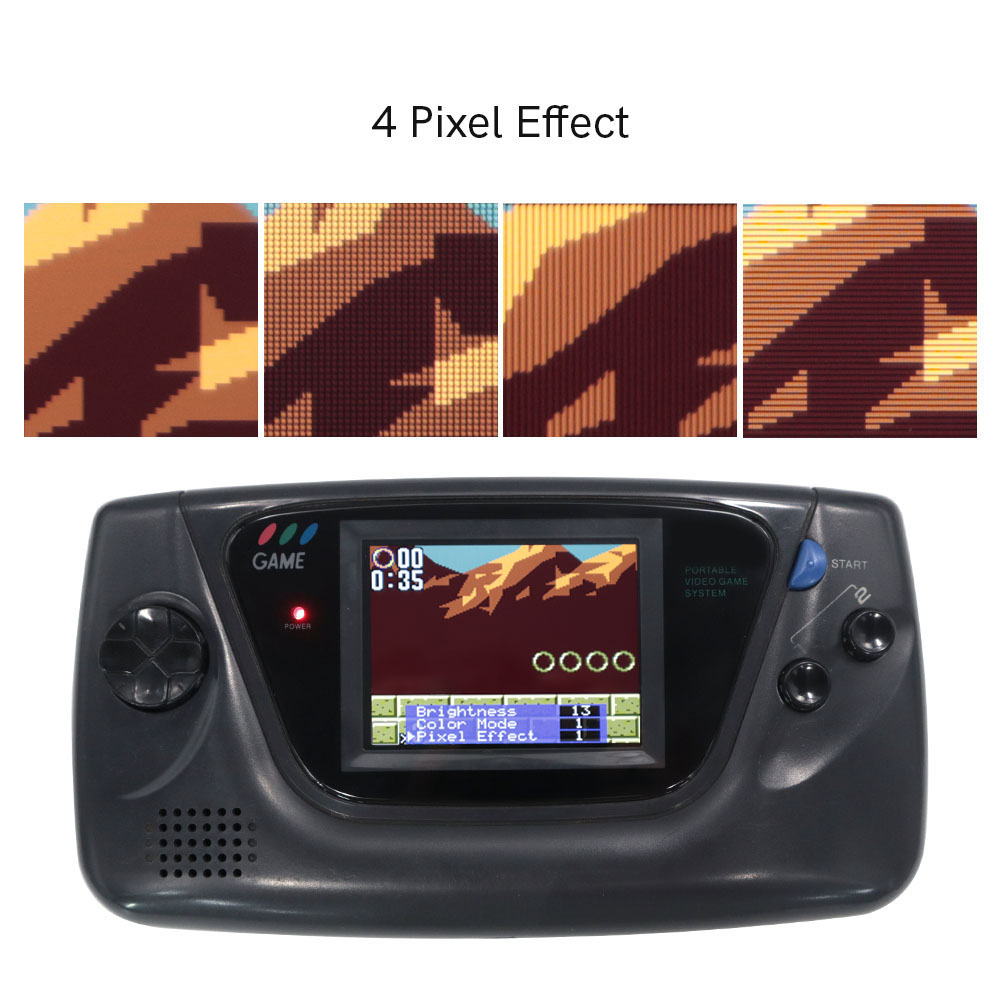

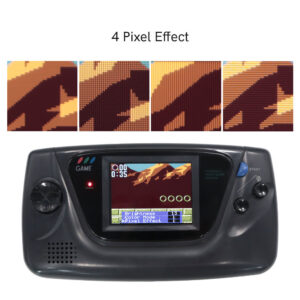

5. Retro pixel Effects: Normal, Retro pixel, Scanline 1 and Scanline 2.
6. High brightness, 15 brightness levels.

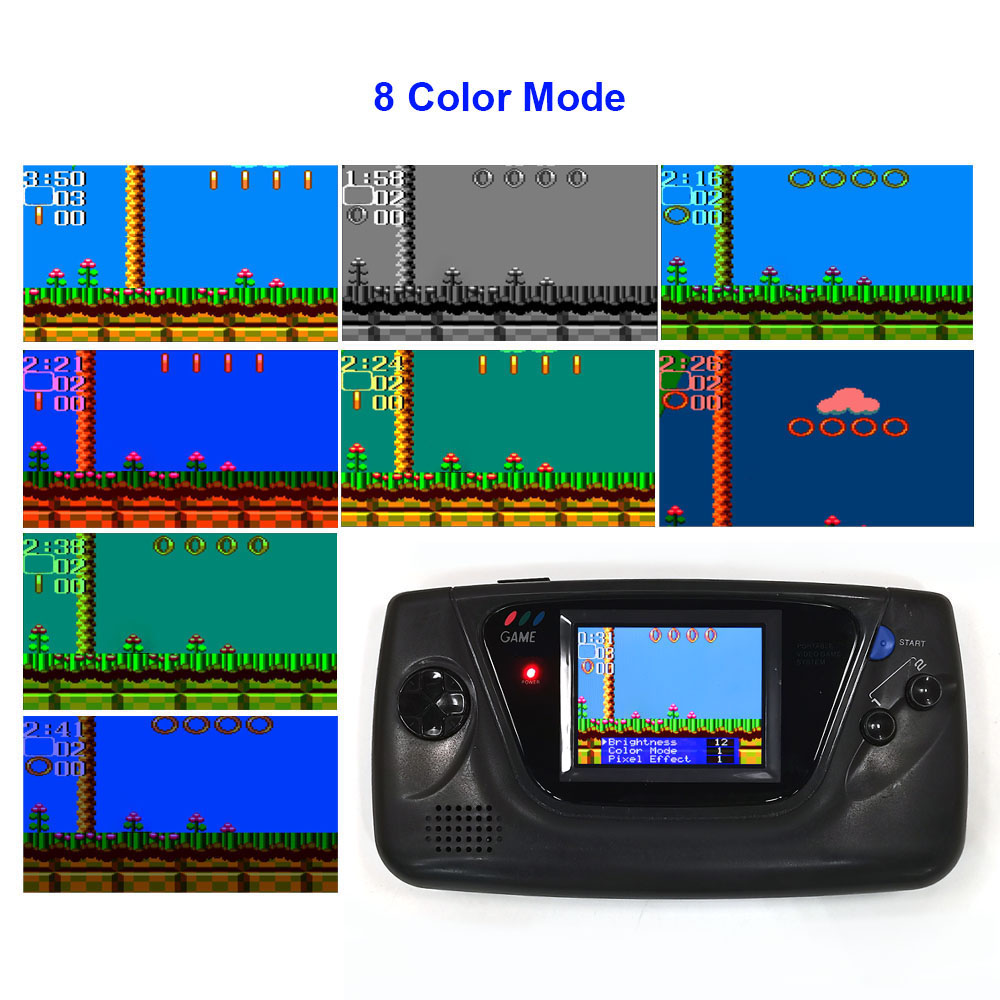

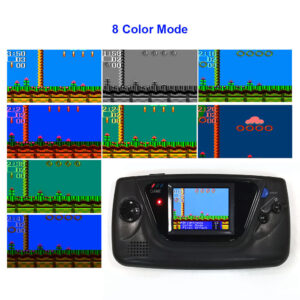

7. 8 color modes.
8. Built in 3 LCD Aspect Ratio.
9. Image position adjustable. No worry to aligning the LCD screen.
10. 720P HDMI-Compatible Output. Support to play games on TV Set.
11. Built in 3 TV Aspect Ratio.
12. FPC connect cable design. Simpler wiring and easier installation.

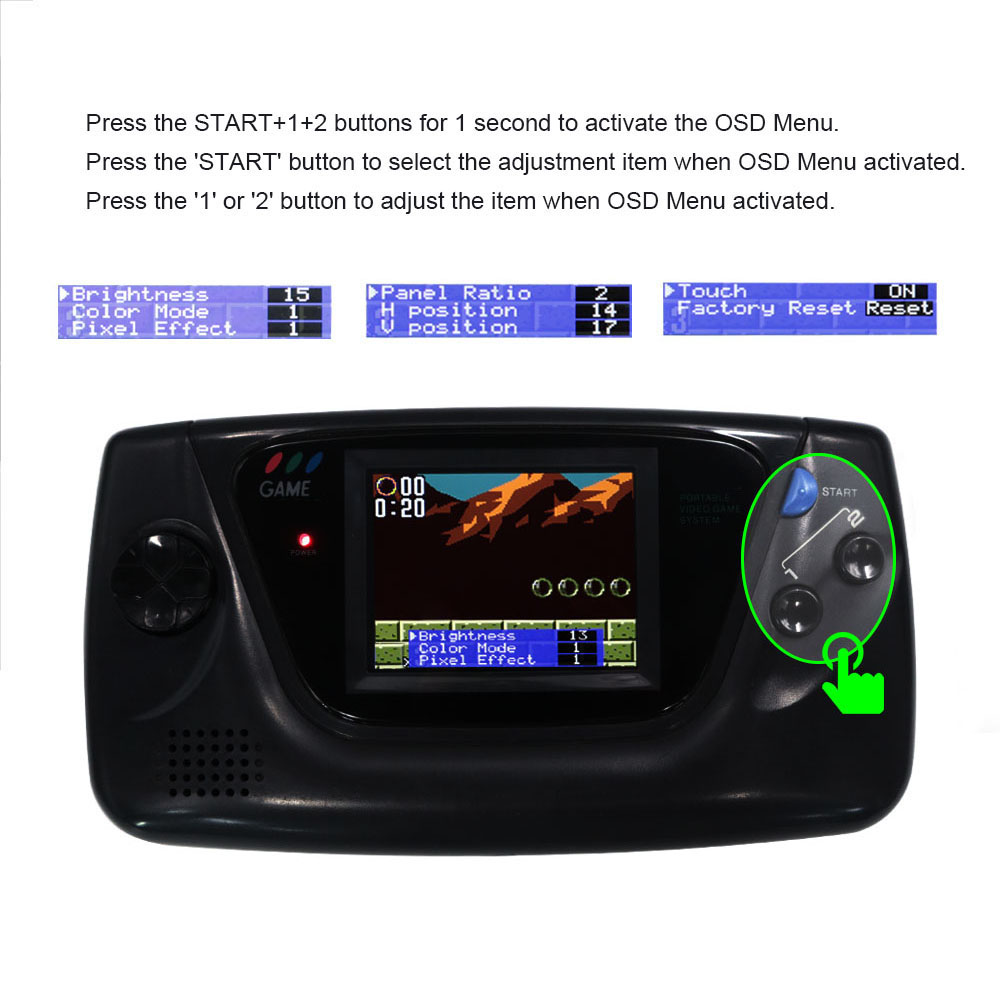

OSD Menu Operation:

-Press the START+1+2 buttons for 1 second to activate the OSD Menu.
-Press the ‘START’ button to select the adjustment item when OSD Menu activated.
-Press the ‘1’ or ‘2’ button to adjust the item when OSD Menu activated.

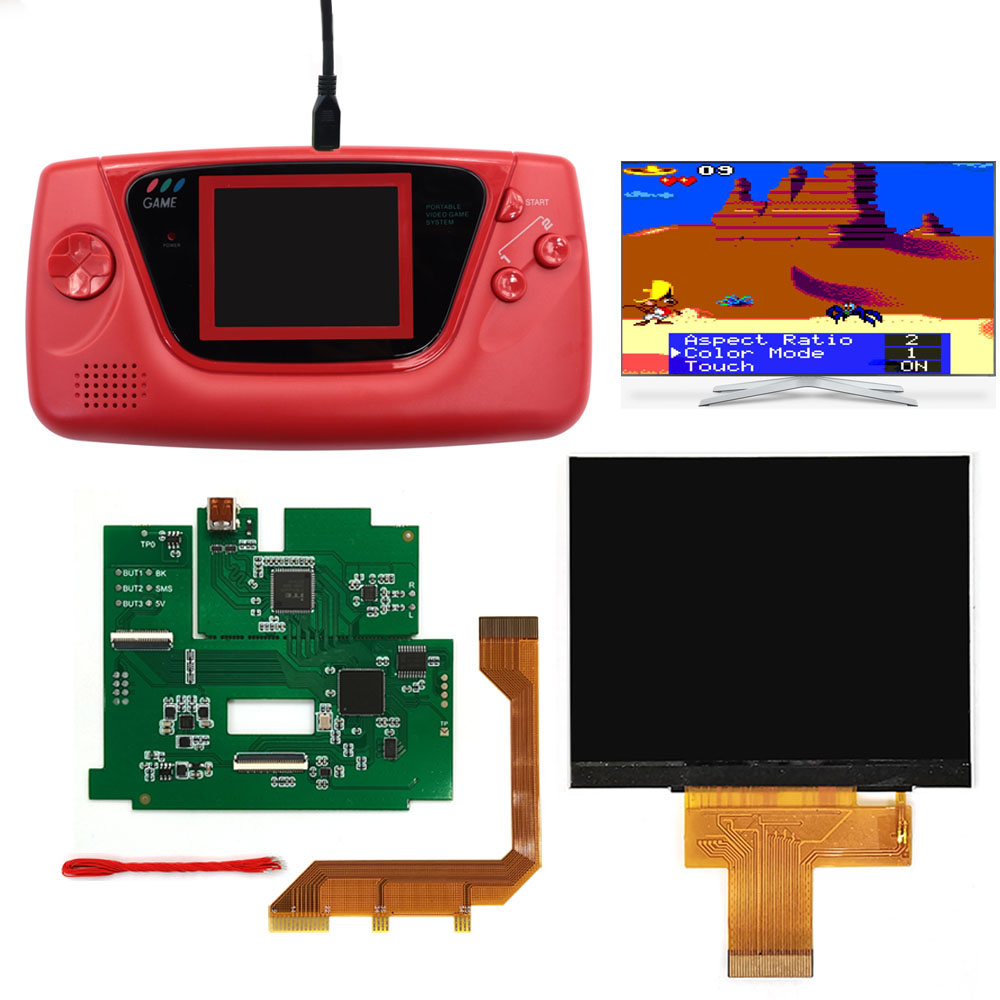

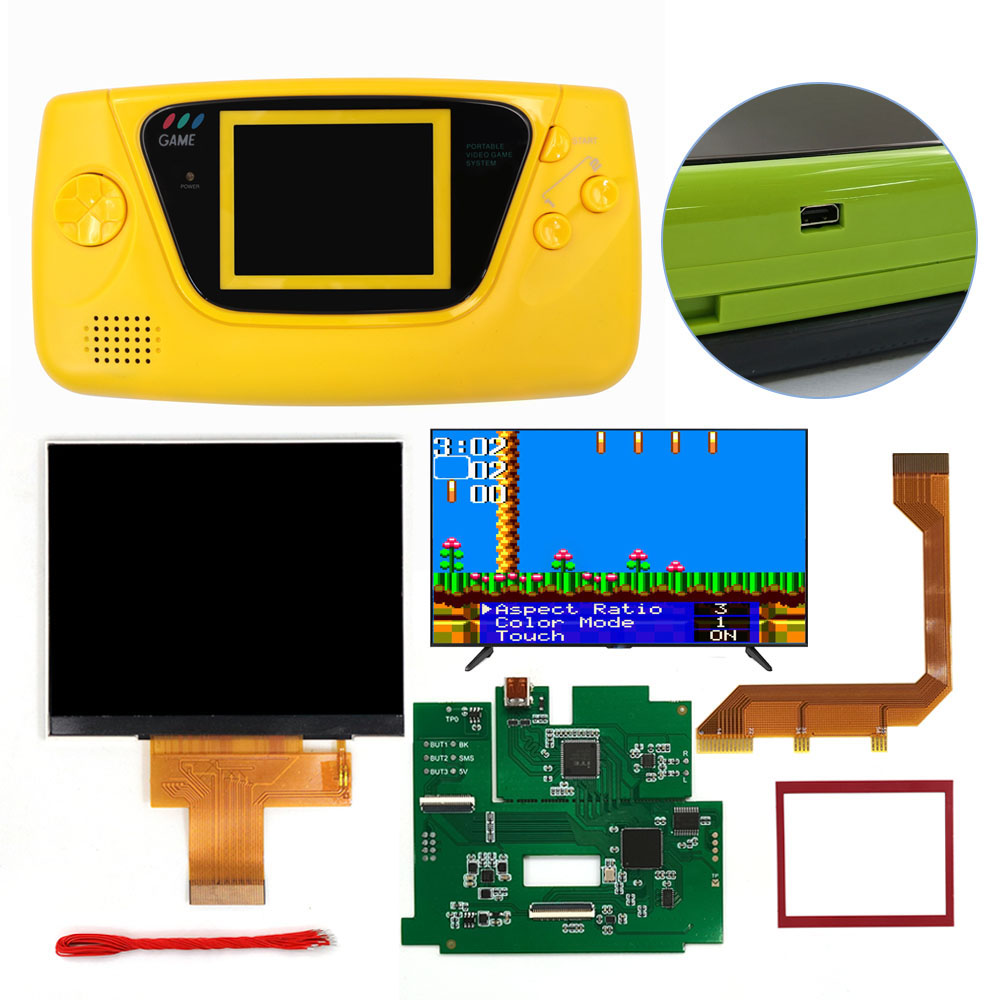

Packing including:  (Only LCD kit with HDMI version)

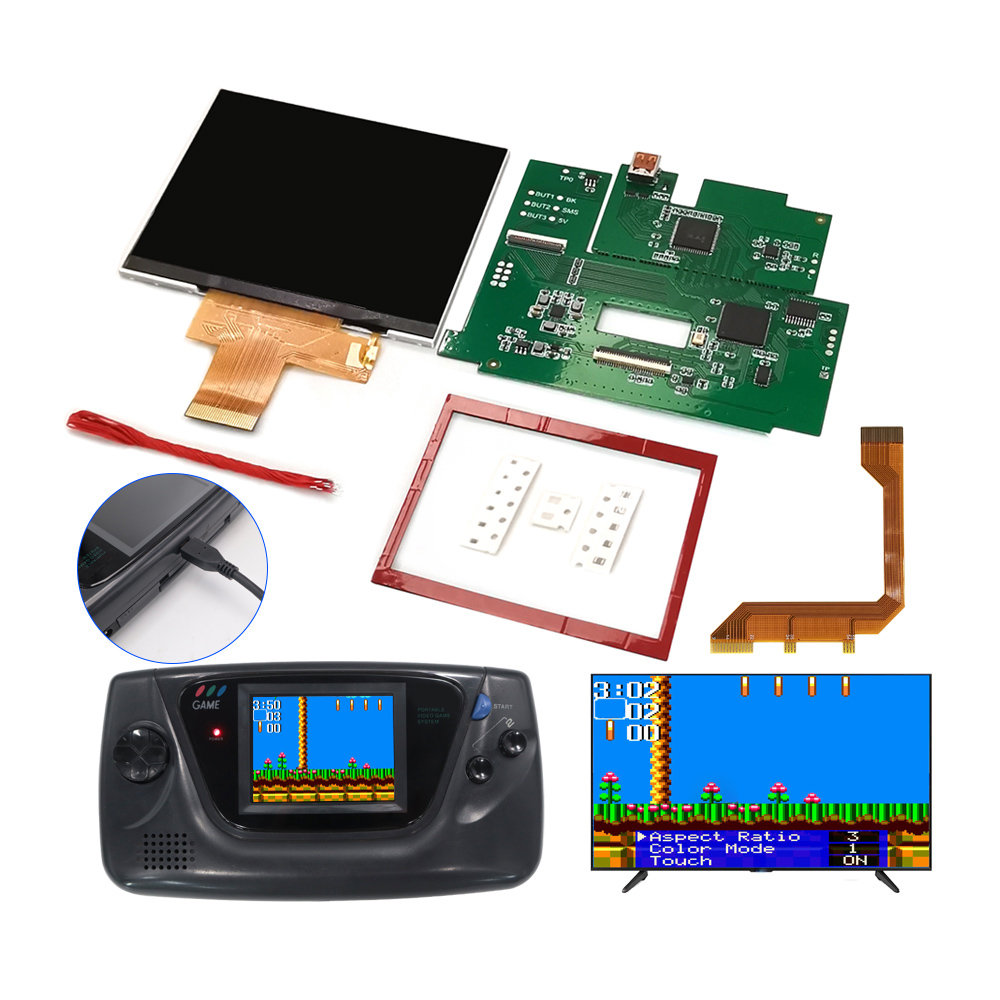

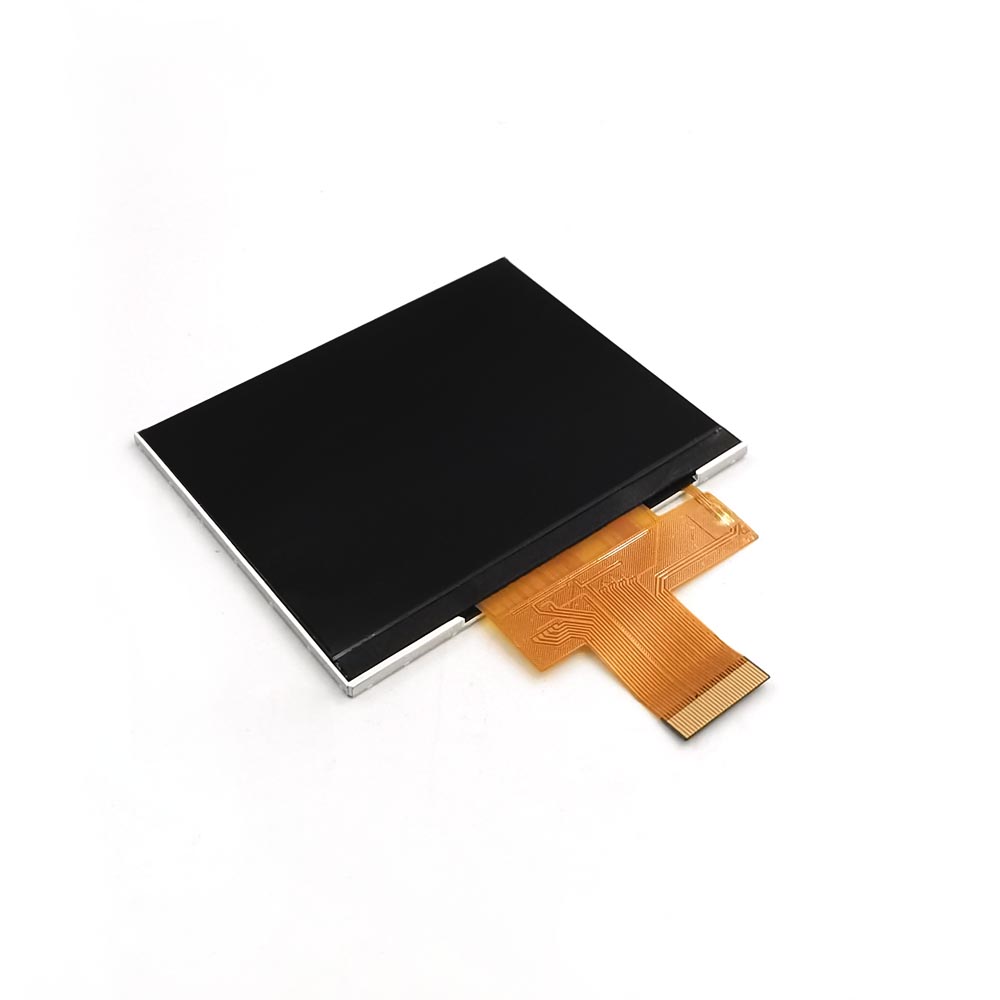

1x Backlight LCD screen.
1x PCB board with HDMI function.
1x HDMI Adapter Cable  (You can play games on TV)
1x FPC connect cables.
1x Double-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.

Or:  (LCD kit with shell case)

1x Backlight LCD screen.
1x PCB board with HDMI function.
1x HDMI Adapter Cable  (You can play games on TV)
1x FPC connect cables.
1x Double-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
1x shell case with buttons

Instructions:  (With HDMI version)
(Single chip)

(Dual chip)
