Note: Good Welding skills are required!
Note: We do not provide plastic bracket!

This HDMI kit is a digital to digital HDMI output upgrade for the PS2 Fat.

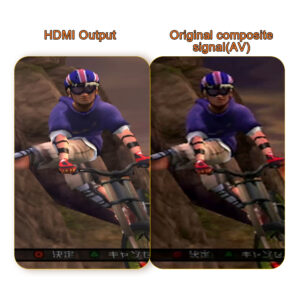

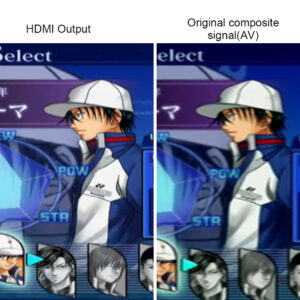

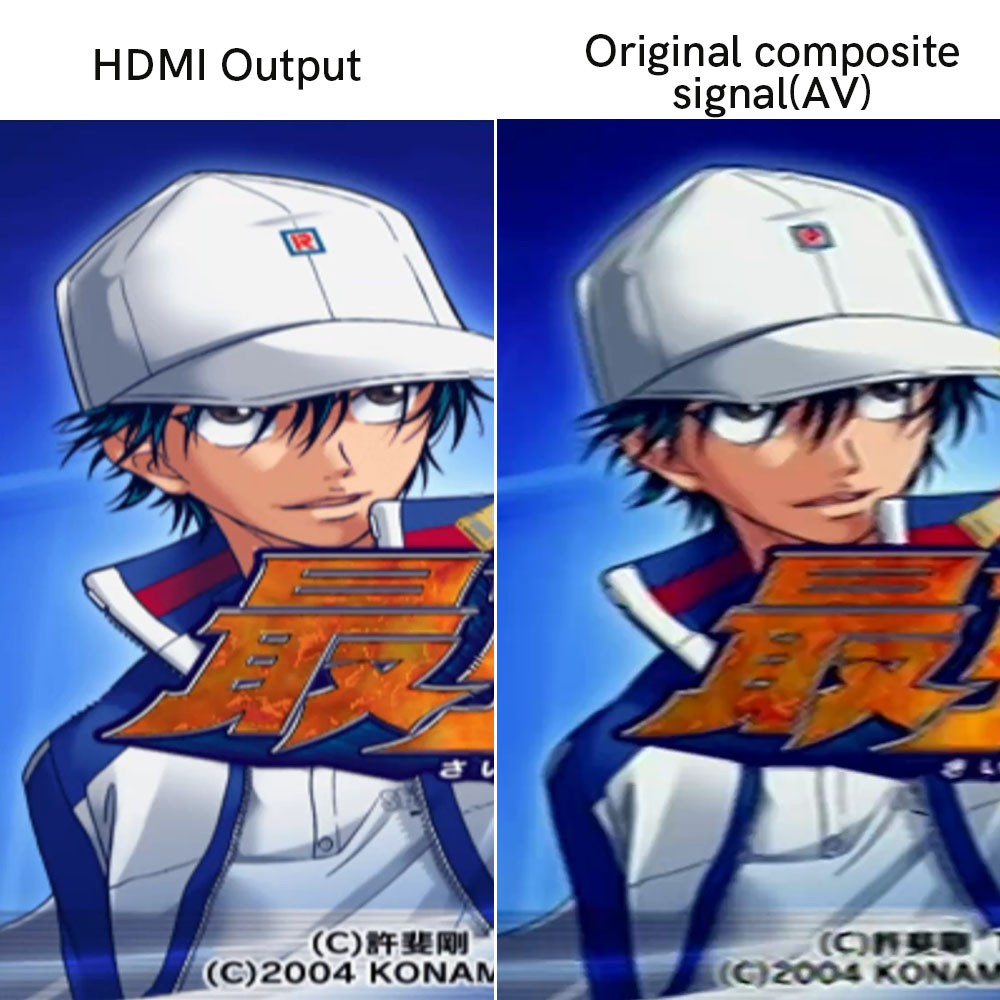

This digital to digital HDMI image are much better than other external HDMI converter.
Make your PS2 Fat console output HDMI image.

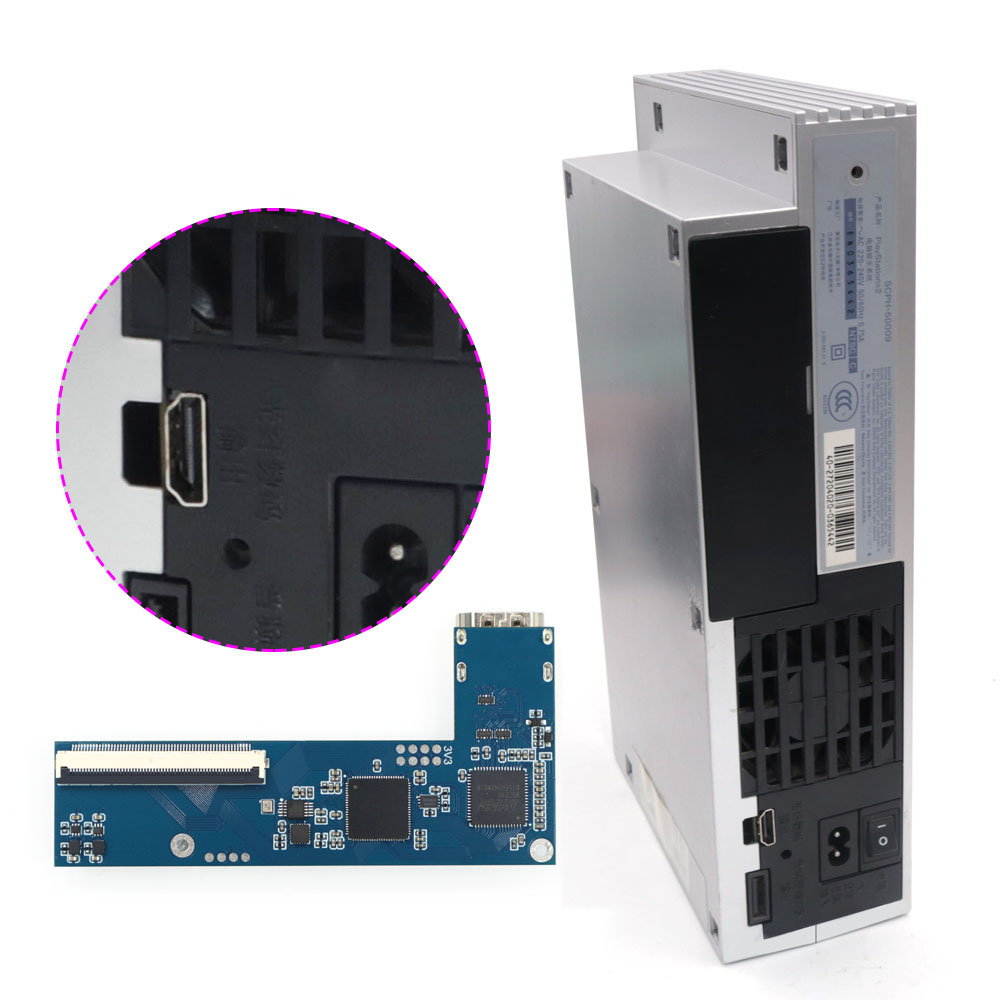

The kit includes a PCB and Flex that must be soldered into the PS2 Fat.

Note: Due to environmental protection, we do not send paper installation manual. Please contact us to request the installation manual if you can’t find the instructions.

Description:

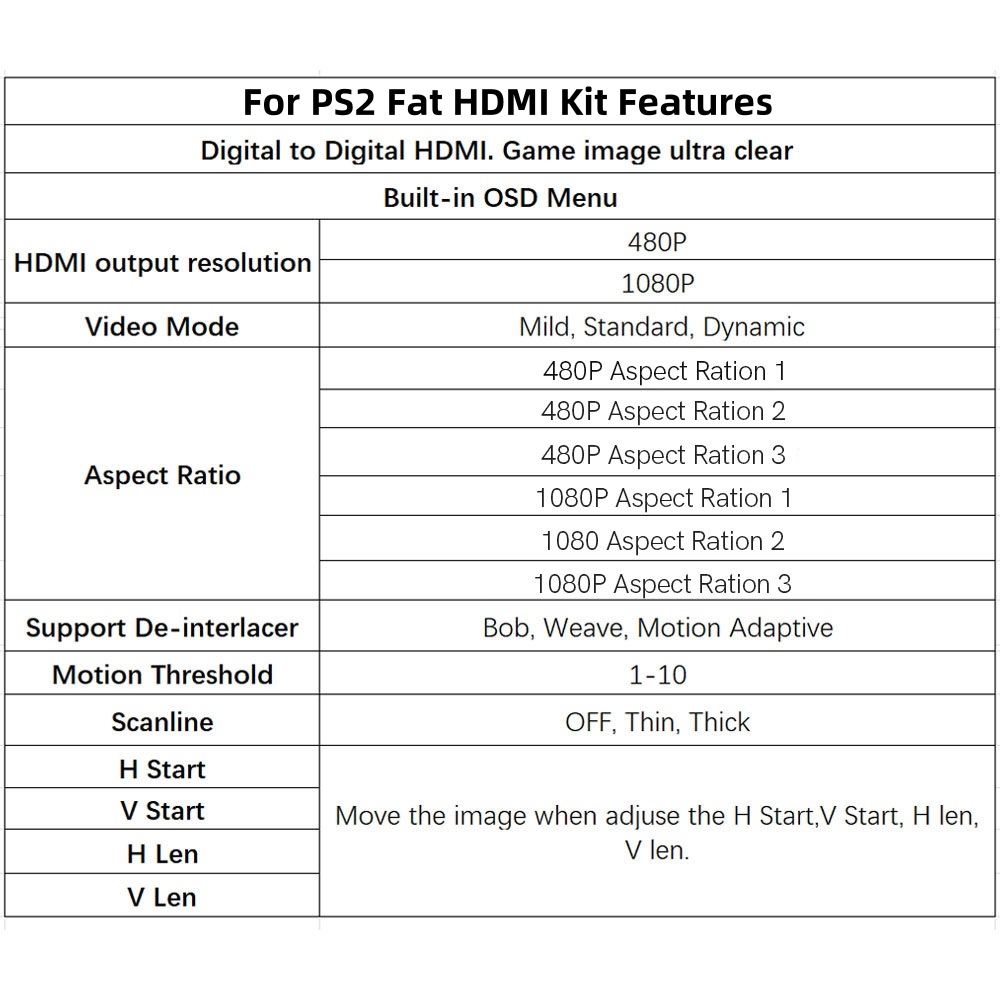

1. Support 480P, 1080P HDMI Output.

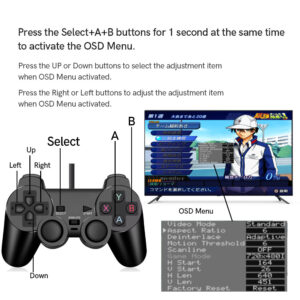

2. Built-in OSD Menu!
3. Built in 3 Video Mode. Mild, Standard, Dynamic,

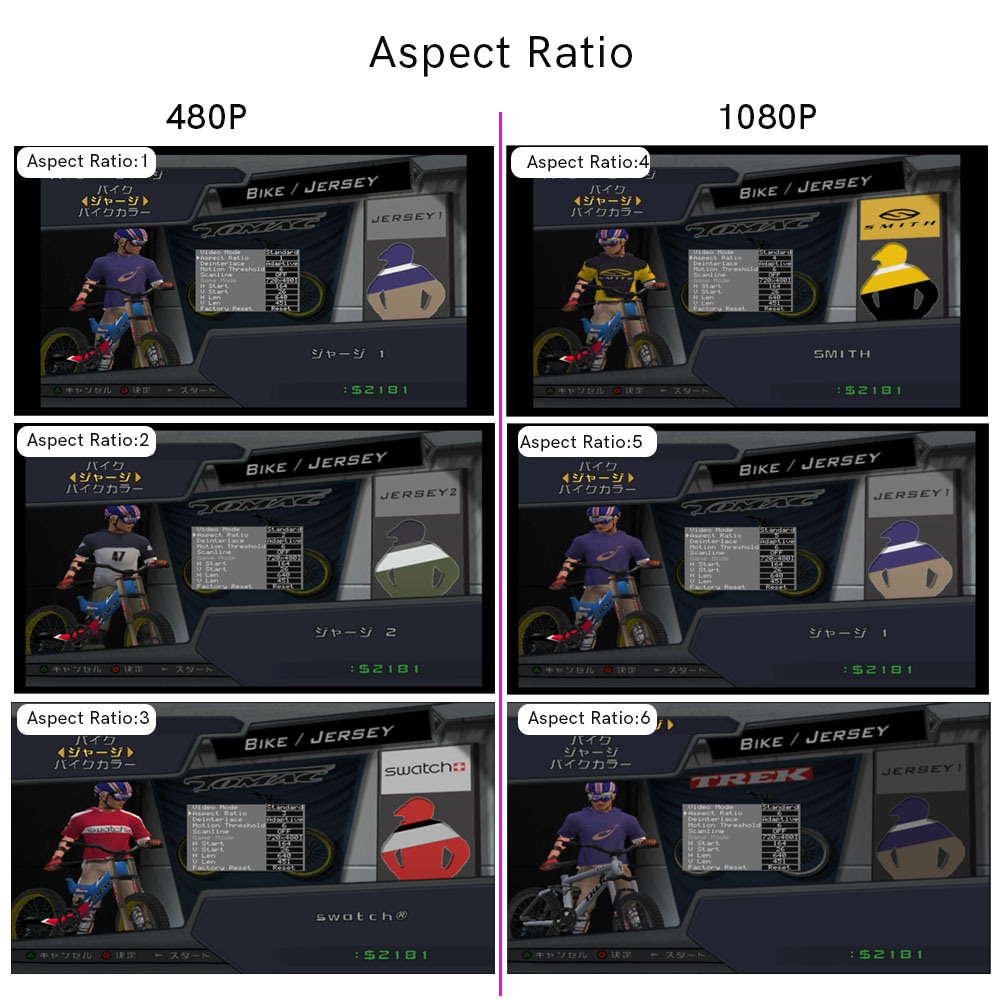

4. Built in 6 Aspect Ratio. Aspect Ratio 1 to Aspect Ratio 3 are 480P. Aspect Ratio 4 to Aspect Ratio 6 are 1080P.
5. Deinterlace adjustable. Bob, Weave,Adaptive.
6. Motion Thereshold adjustable.
7. Image position adjustable. Move the image when adjust the H Start,V Start, H len, V len.

Compatibility:

GH-019 (SCPH-3900X)
GH-022 (SCPH-3900X)
GH-023 (SCPH-5000X)
GH-026 (SCPH-5000X)

X means the number 1 to 9.

For example:

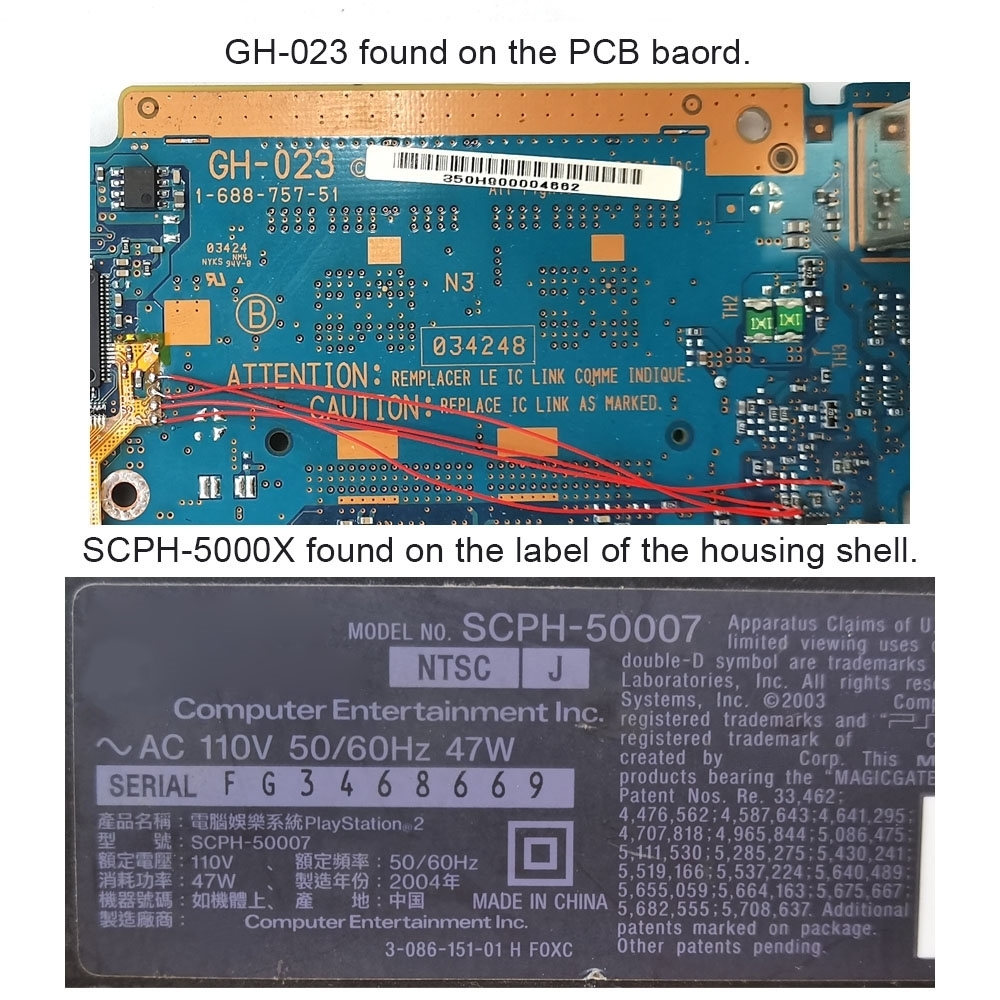

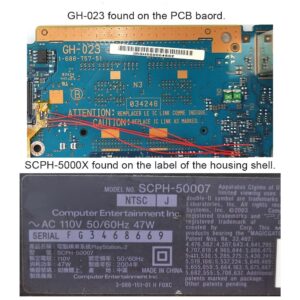

GH-023 can be found on the PCB baord.
SCPH-5000X can be found on the label of the housing shell.

Package included:

1x PCB board
1x Flex cable

Or:

1x PCB board
2x Flex cables (one for backup)

Instructions: (GH-022)

Instructions: (GH-023)
