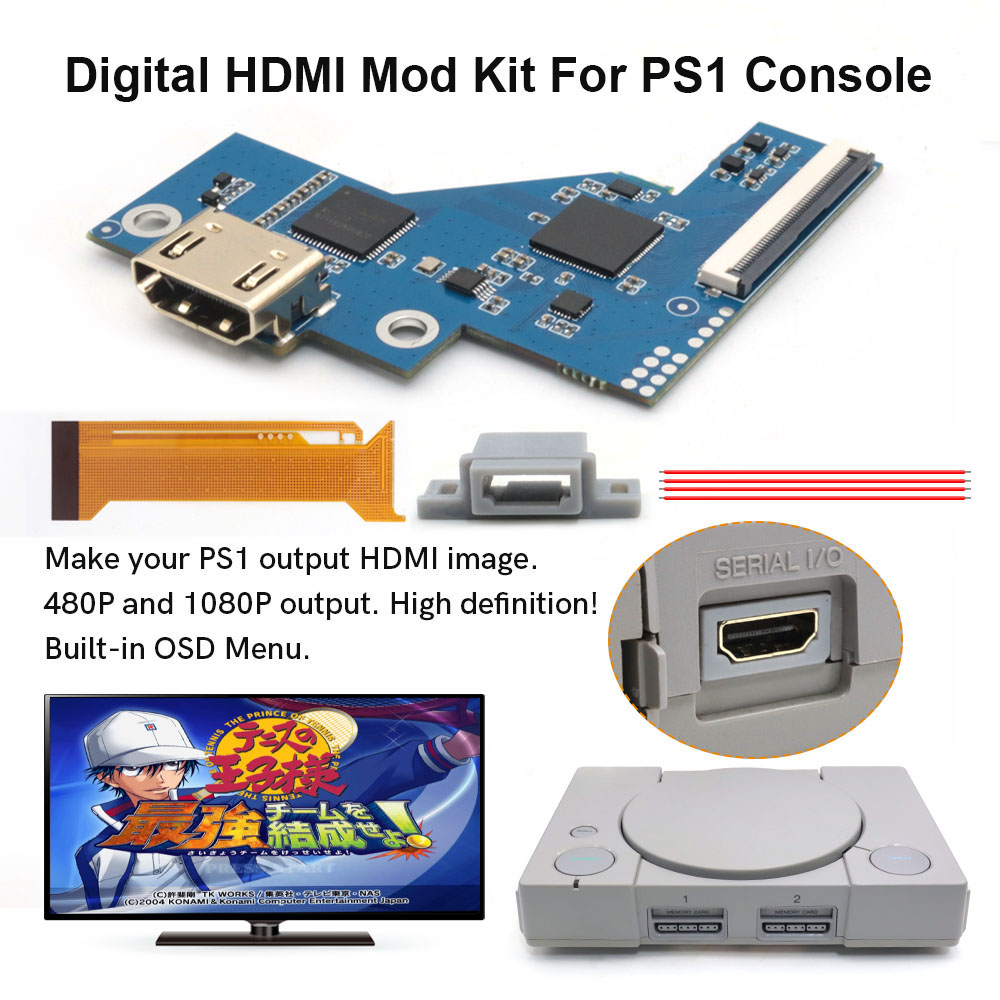

1080P HDMI Kit Digital to Digital HDMI-Compatible Module Kit For Playstaion For PS1 Console

Note: Good Welding skills required!

This HDMI kit is a digital to digital HDMI output upgrade for PS1.

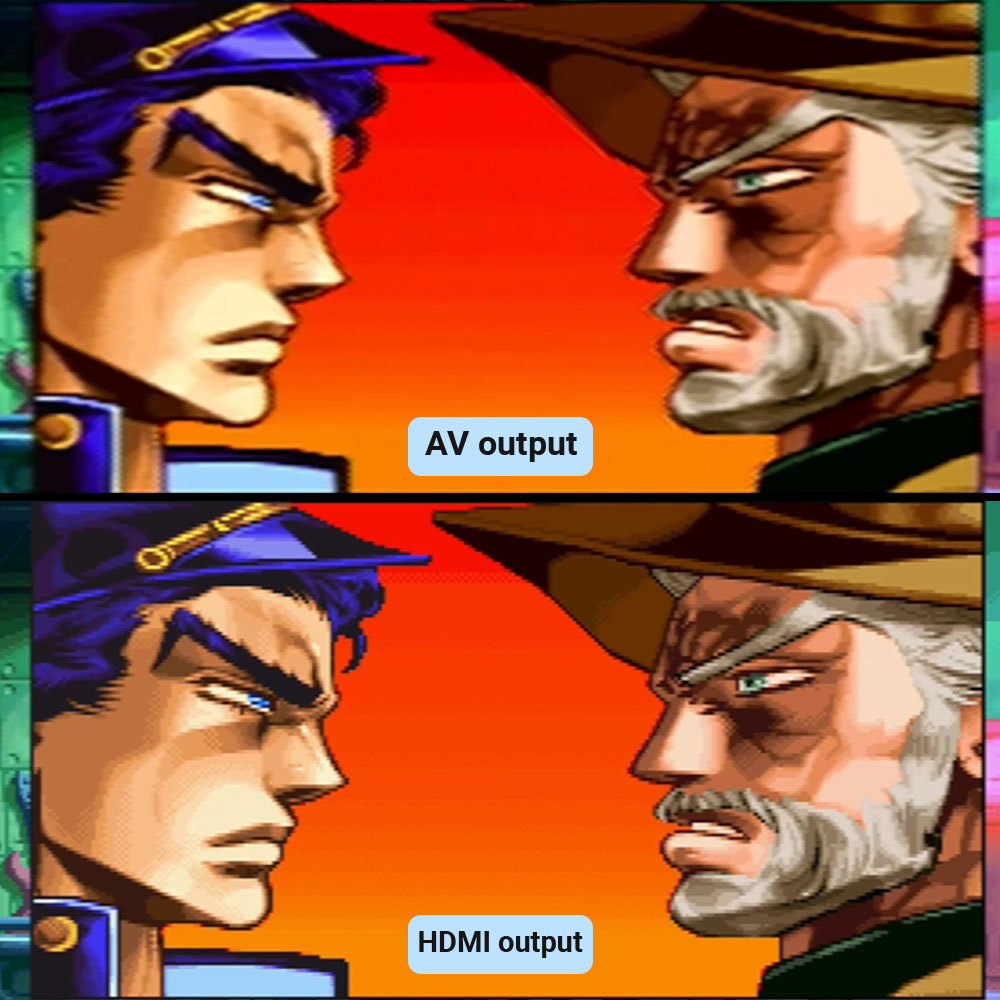

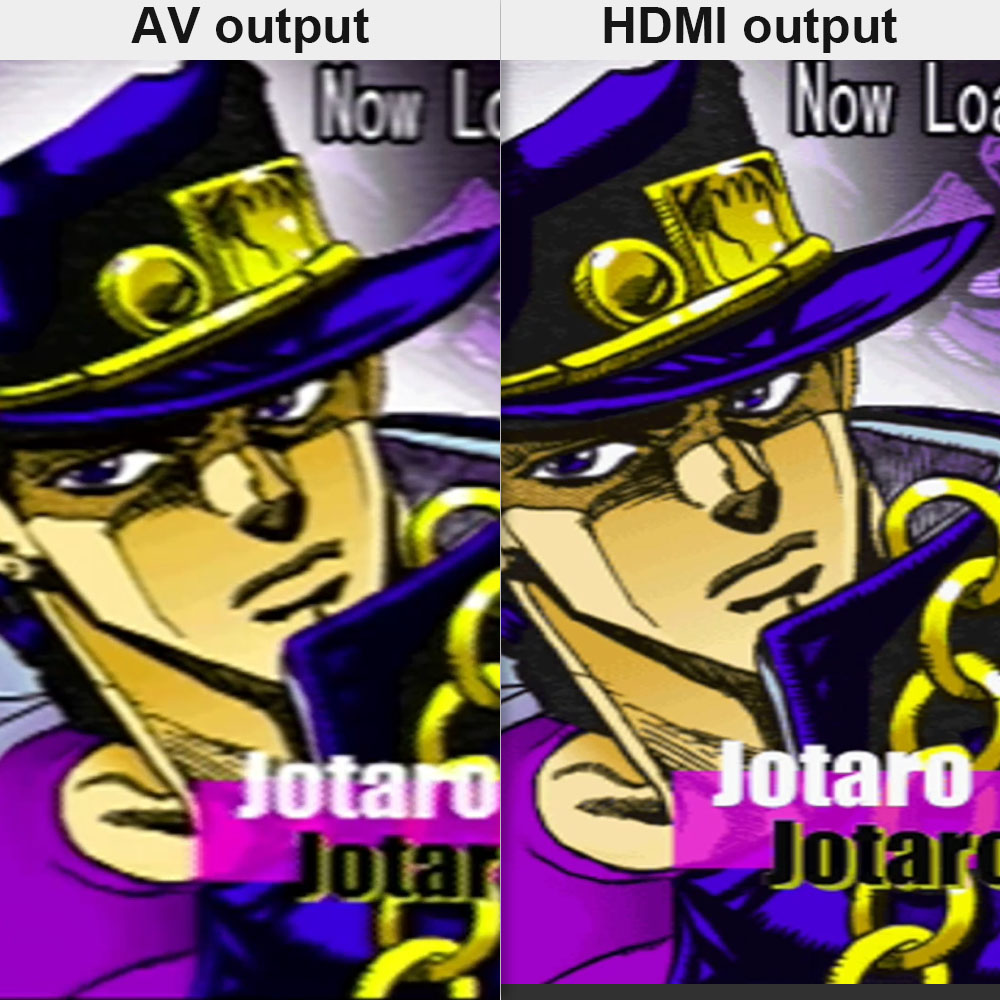

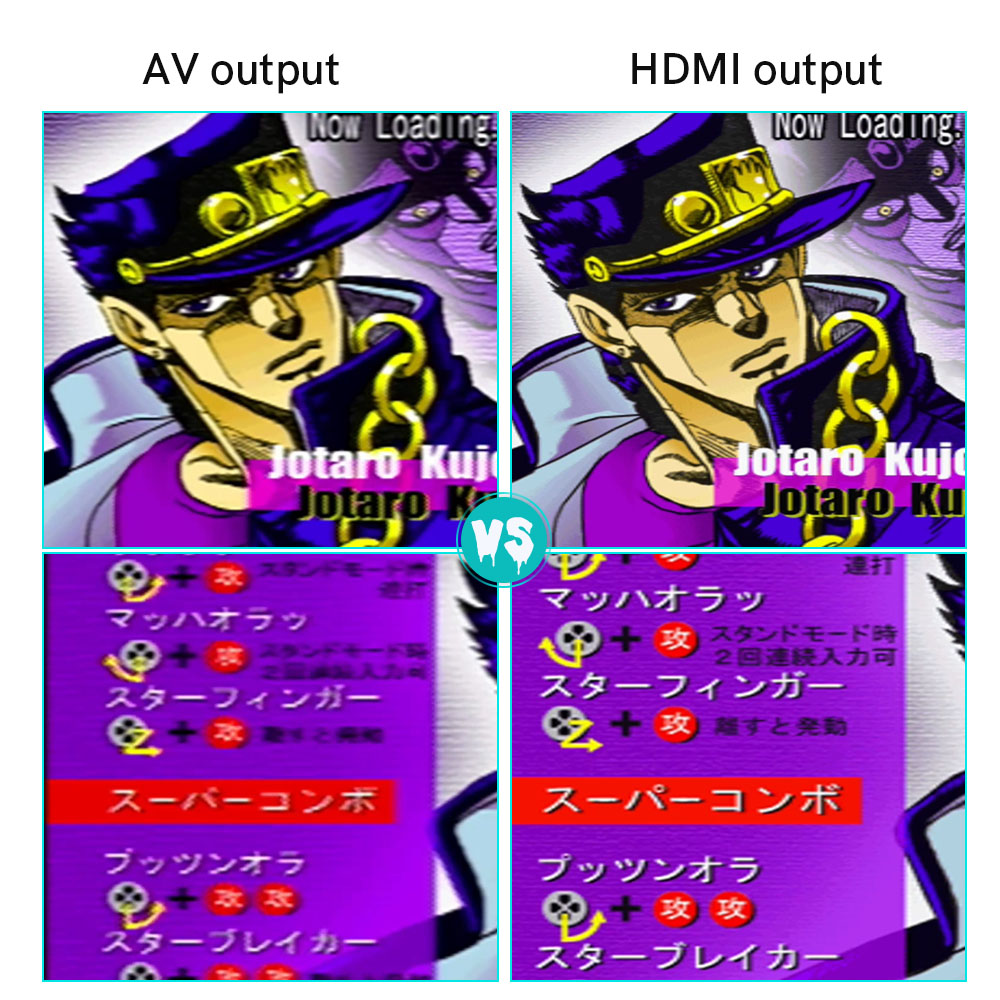

This digital to digital HDMI image are much better than other external HDMI converter.

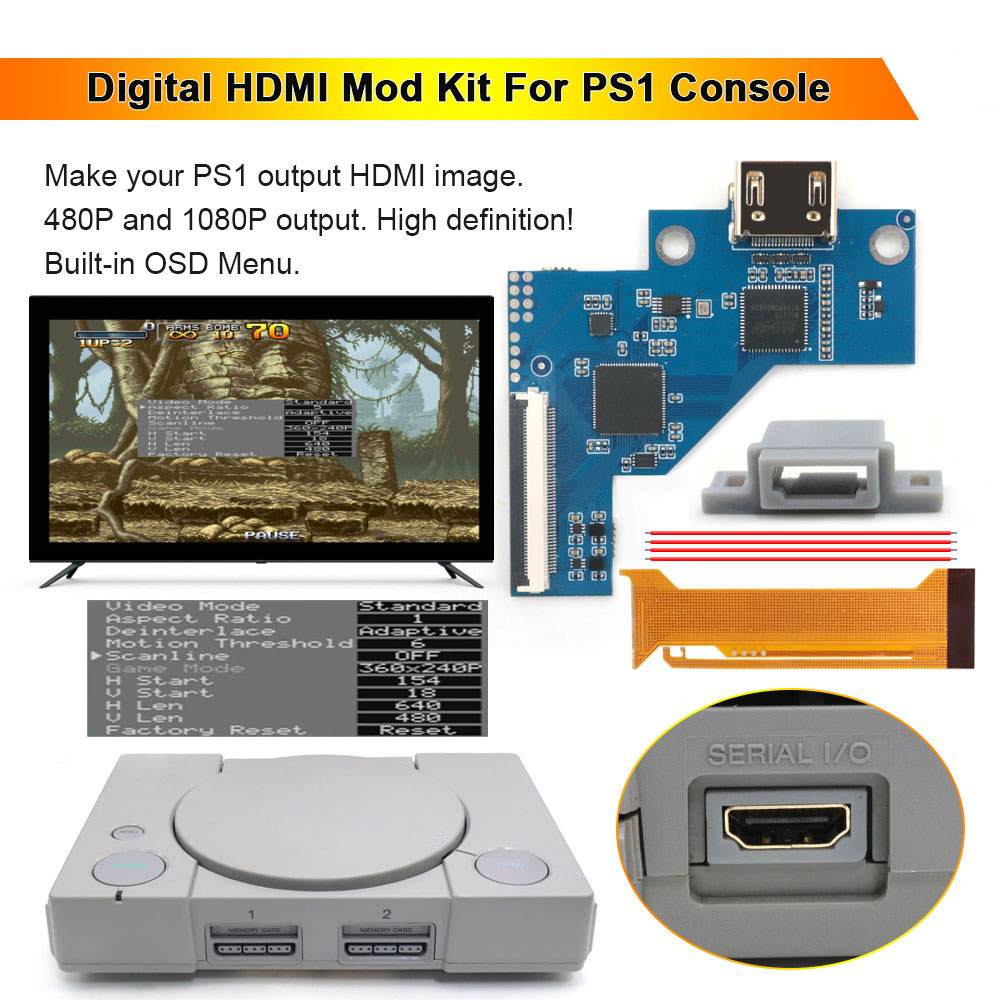

Make your PS1 console output HDMI image.​

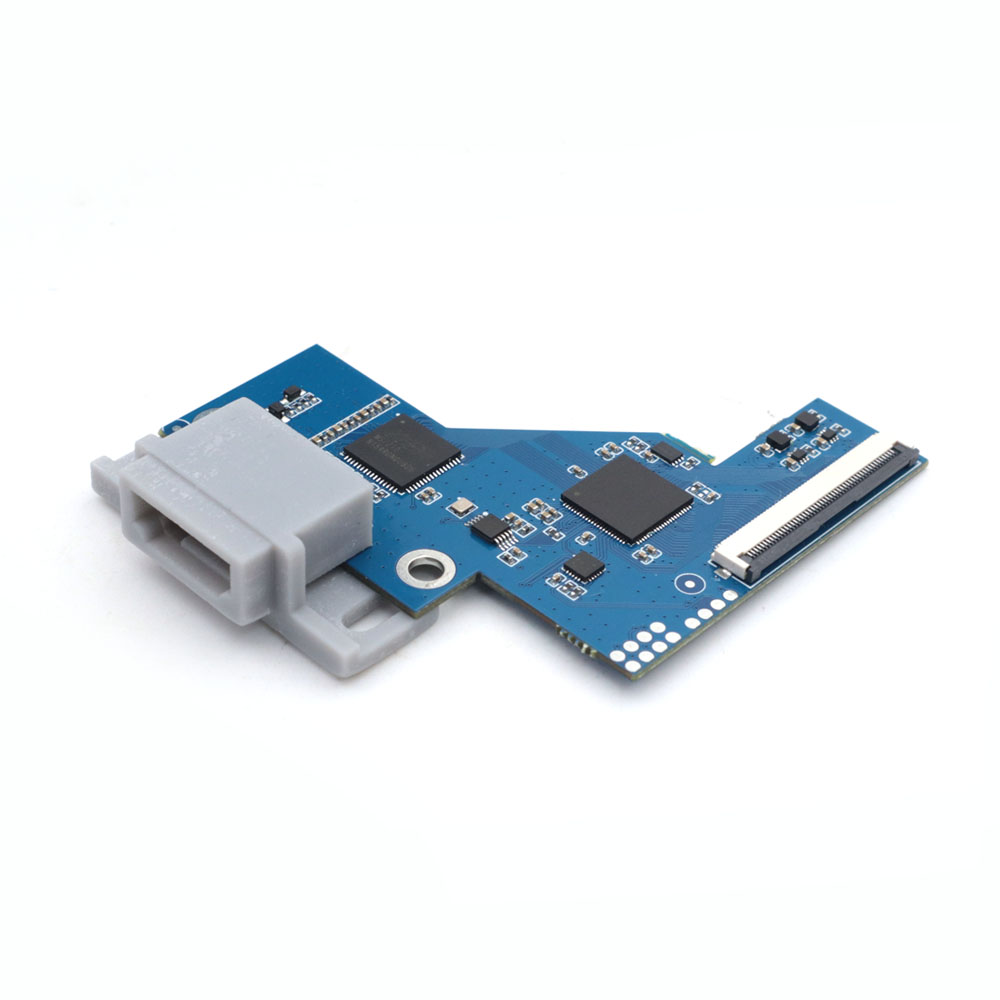

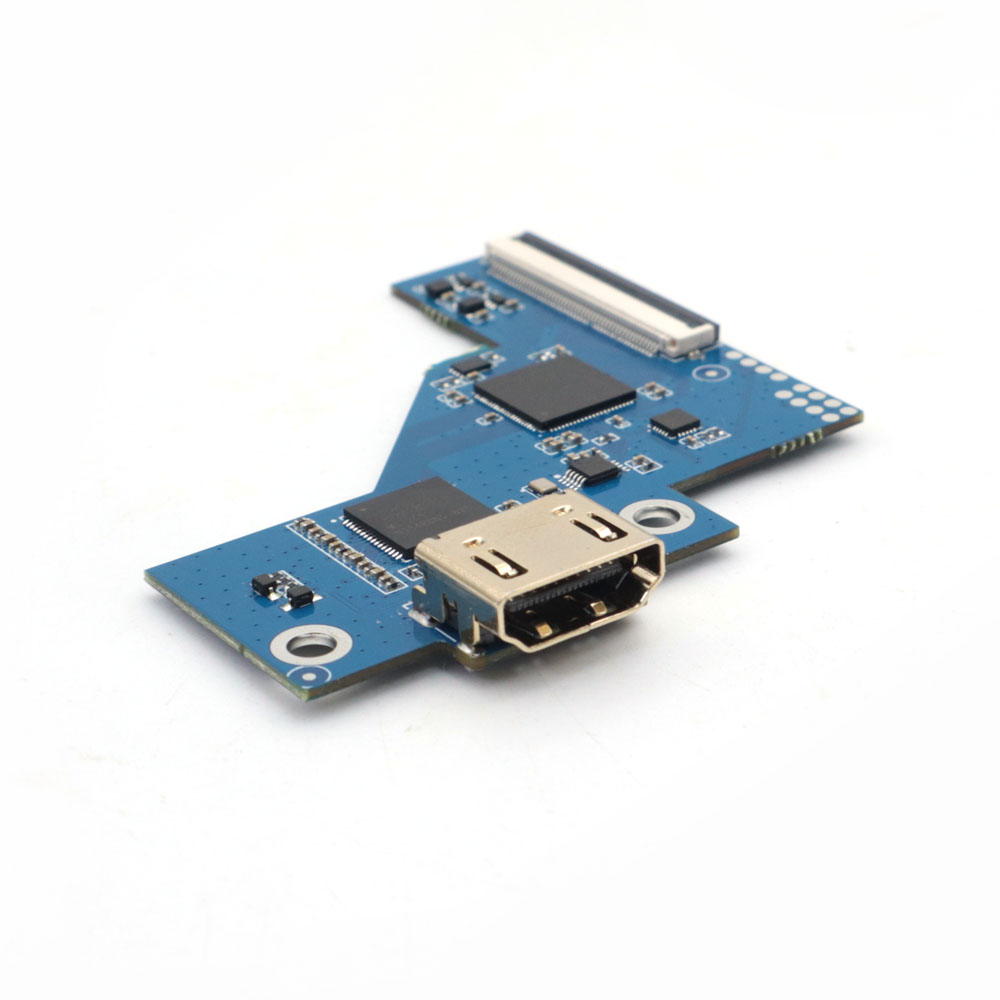

The kit includes a PCB and Flex that must be soldered into the PS1 console.

Note: Due to environmental protection, we do not send paper installation manual. We have five installation manuals. Please contact us to request the installation manual when you receive the product.

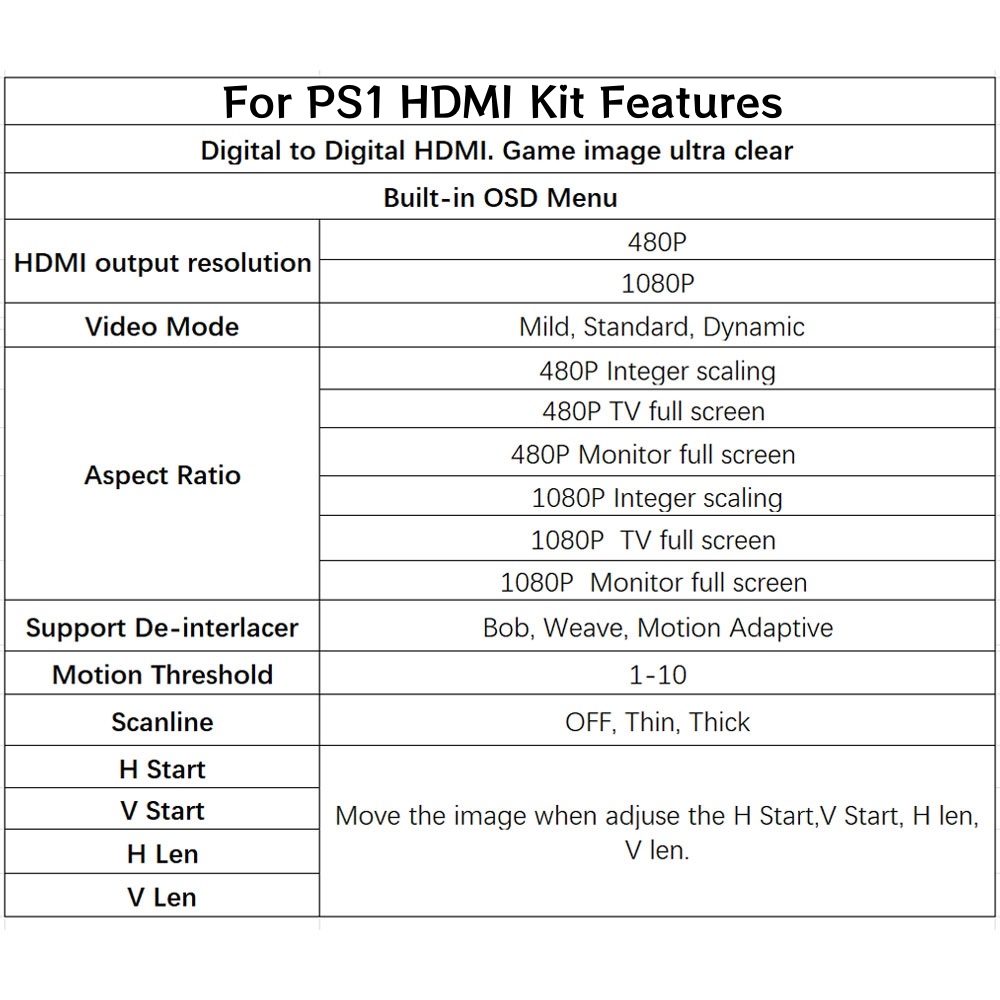

Description:

1. Support 480P, 1080P HDMI Output.

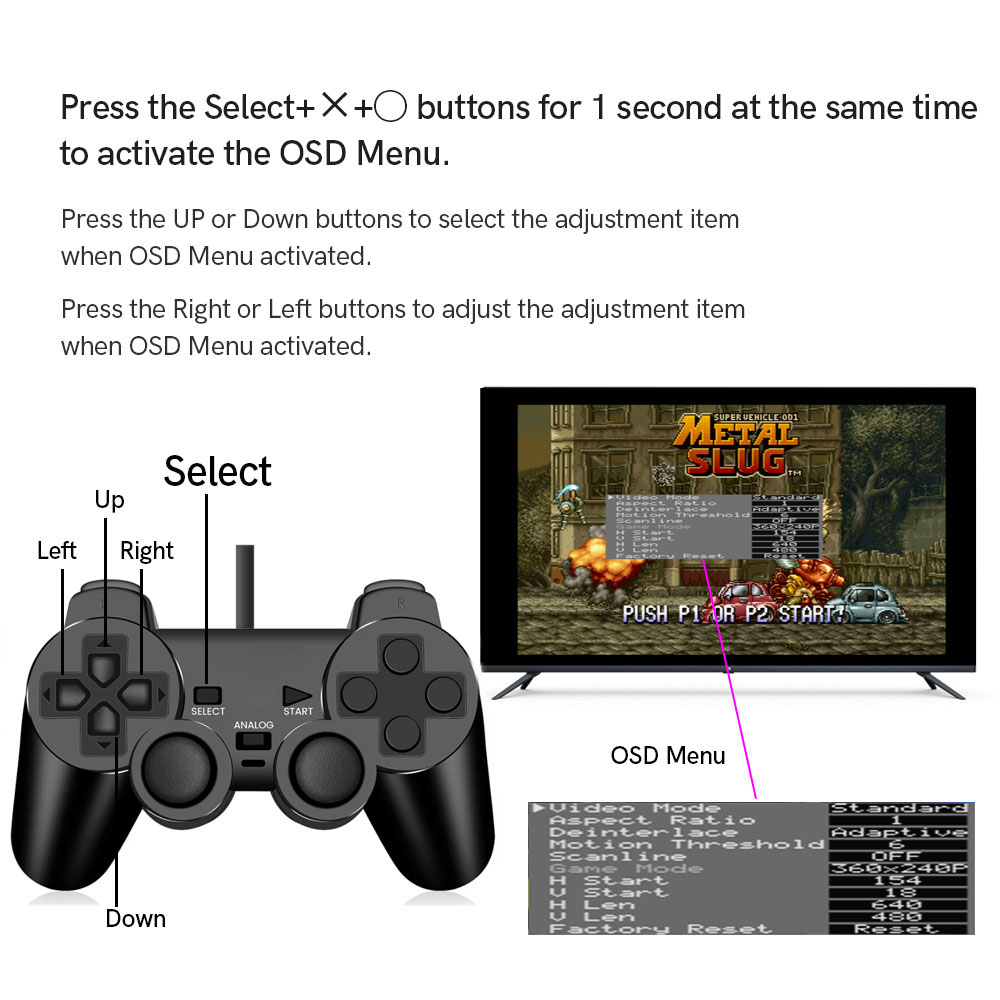

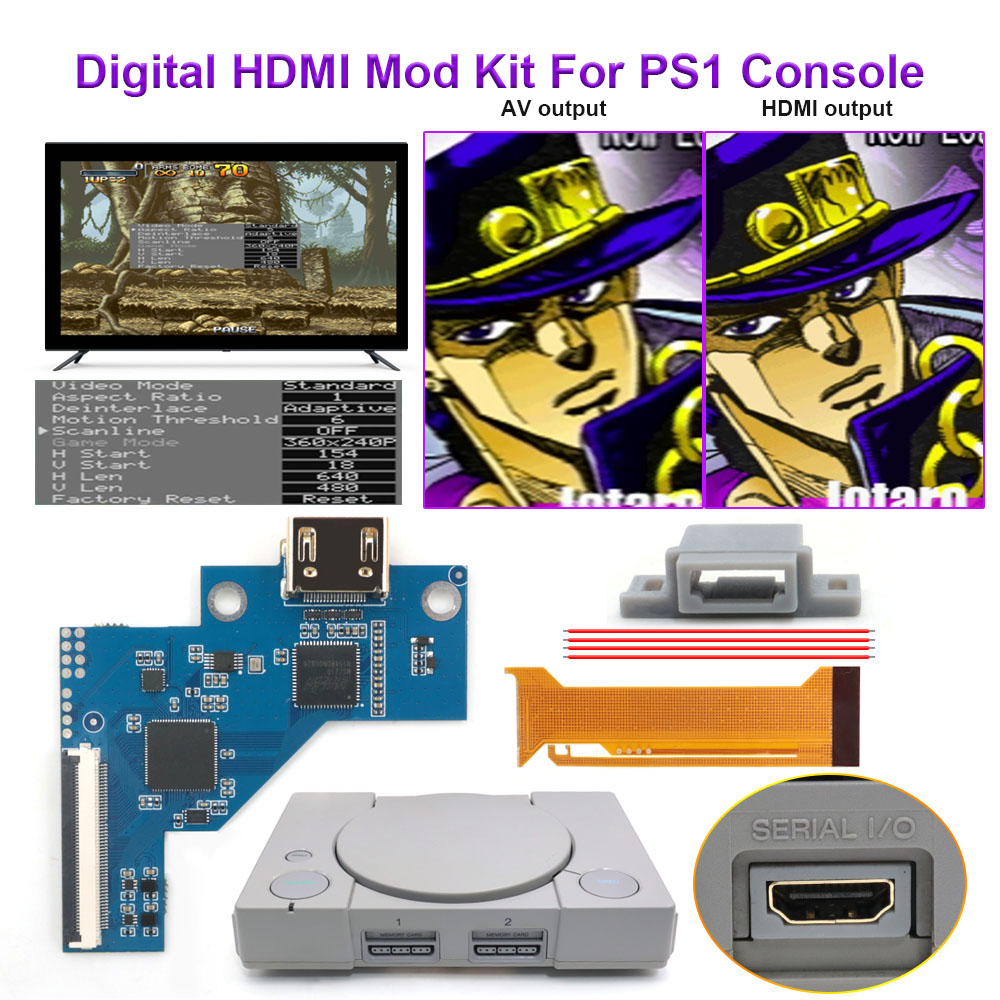

2. Built-in OSD Menu!
3. Built in 3 Video Mode. Mild, Standard, Dynamic,

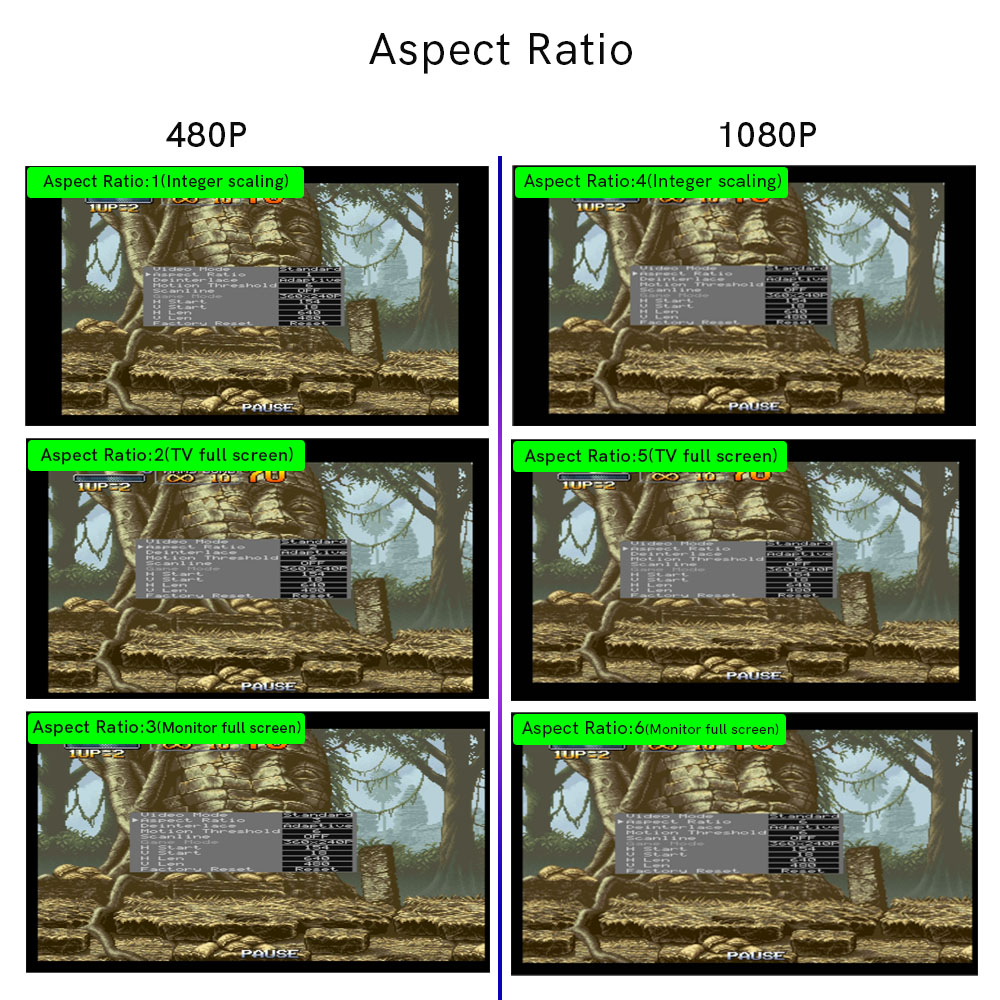

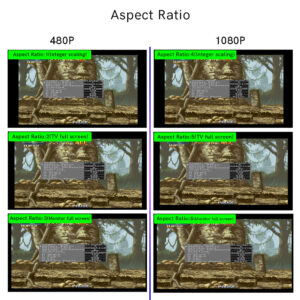

4. Built in 6 Aspect Ratio. Aspect Ratio 1 to Aspect Ratio 3 are 480P. Aspect Ratio 4 to Aspect Ratio 6 are 1080P.
5. Deinterlace adjustable. Bob, Weave,Adaptive.
6. Motion Thereshold adjustable.
7. Image position adjustable. Move the image when adjuse the H Start,V Start, H len, V len.

Compatibility:

The ‘PU-8 CXD8561Q’ is only compatible with PU-8 motherboards and the GPU must be CXD8561Q.

The ‘PU-18’ is compatible with all PU-18 motherboards.
The ‘PU-20’ is compatible with all PU-20 motherboards.

The ‘PU-22 CXD8561Q’ is only compatible with PU-22 motherboards and the GPU must be CXD8561Q.
The ‘PU-22 CXD8561CQ’ is only compatible with PU-22 motherboards and the GPU must be CXD8561CQ.
The ‘PU-23 CXD8561CQ’ is only compatible with PU-23 motherboards and the GPU must be CXD8561CQ.

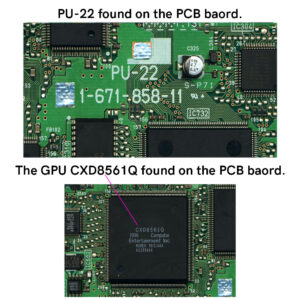

PU-XX is the motherboards model number.
The CXDxxxxx is the GPU model number.

Package includes:

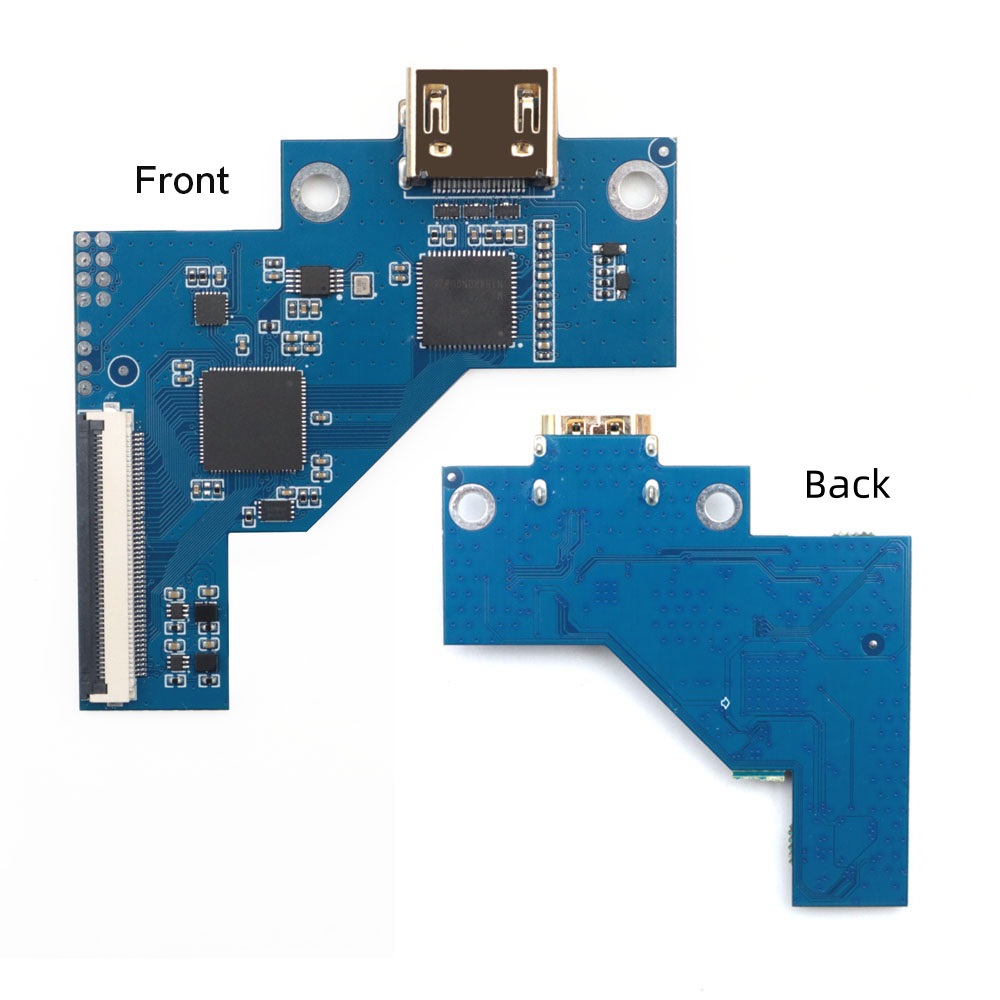

1x PCB board
1x Plastic holder
1x Flex cable
Several wires

Or:

1x PCB board
1x Plastic holder
2x Flex cable (one for backup)
Several wires

Note: We have five installation manuals. Please contact us to request the installation manual when you receive the product.
