White Glass Lens-2.8” Laminated 480×432 Retro Pixel Integer Scaling IPS Backlight LCD Screen Kit With Pre-cut Housing Shell For GBP

Description:

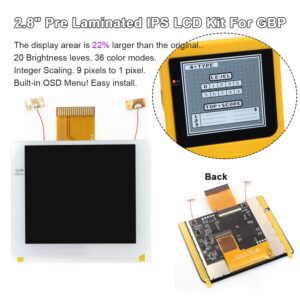

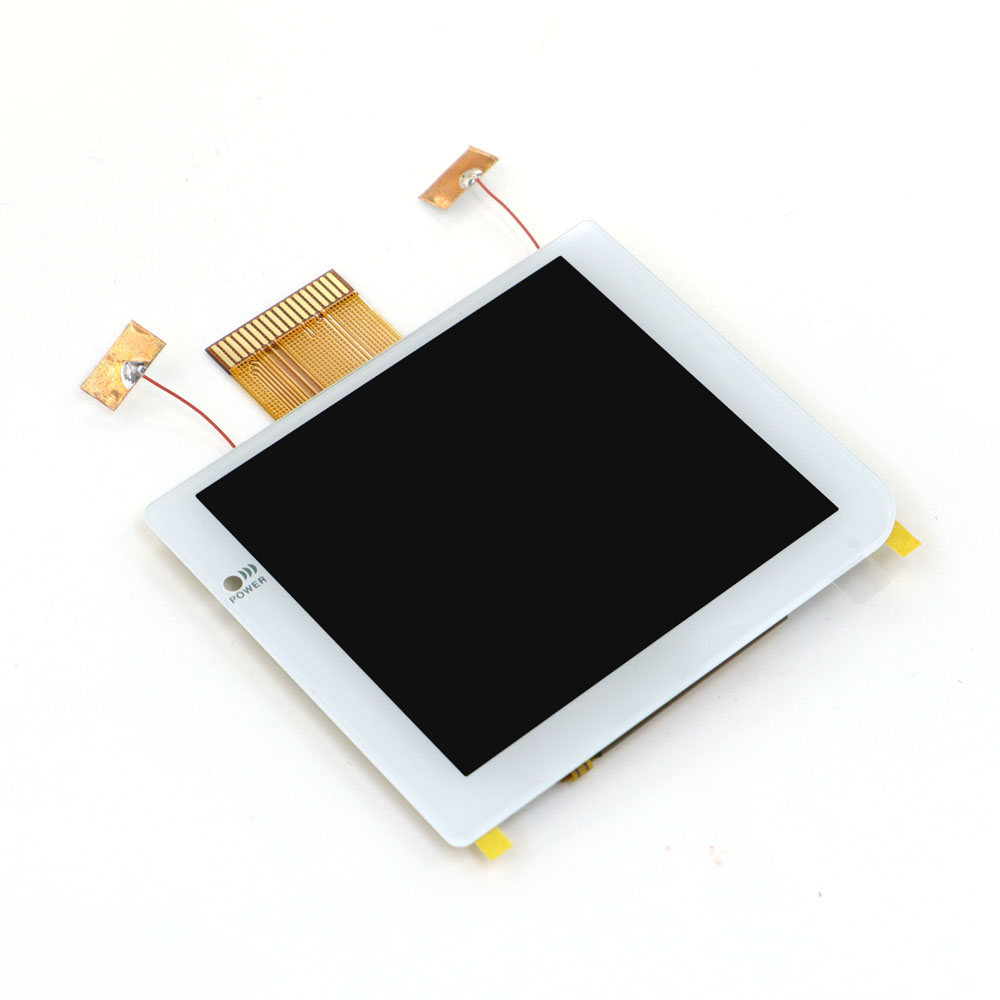

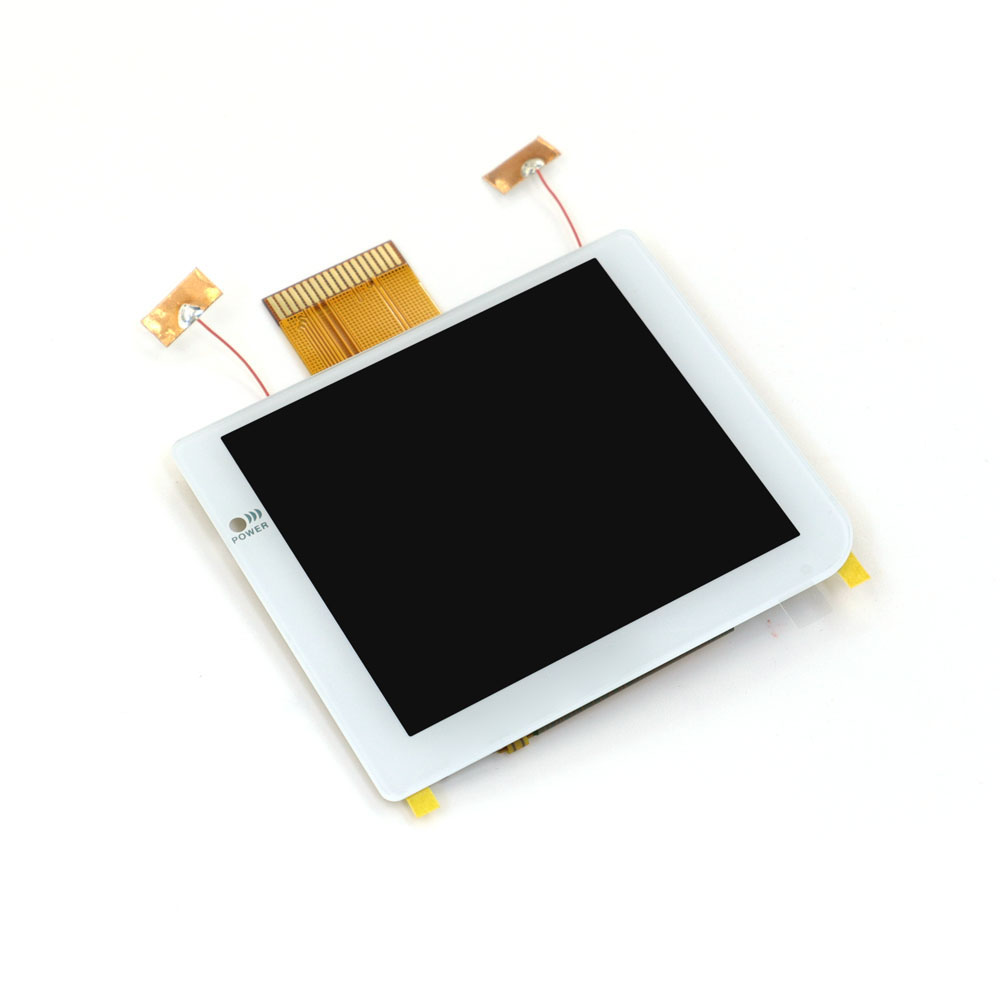

1. This is Pre-Laminated Glass Screen IPS LCD. Very easy to install.

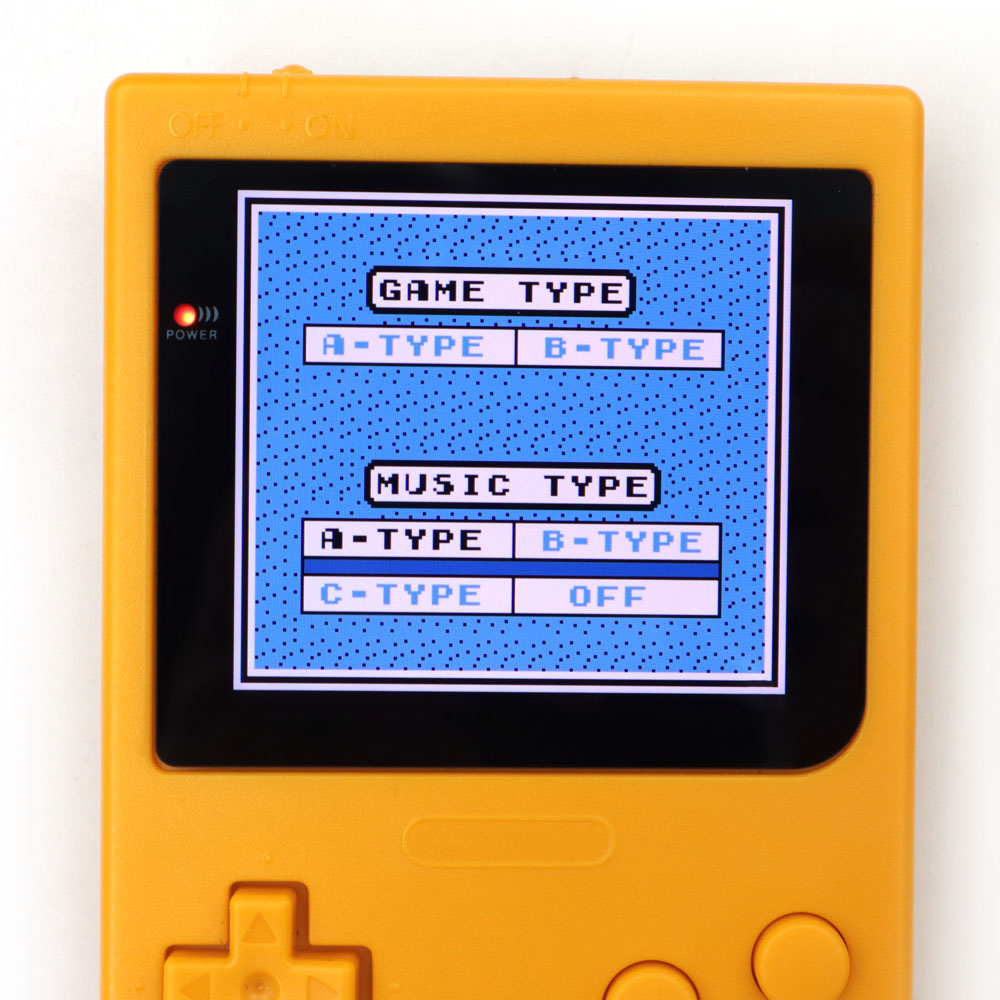

2. 480×432 display resolution. HD LCD. Integer Scaling. 9 pixels to 1 pixel. No any distortions.

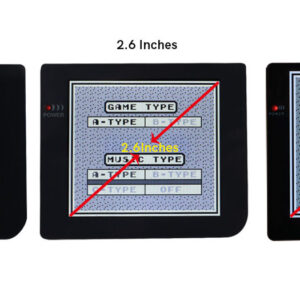

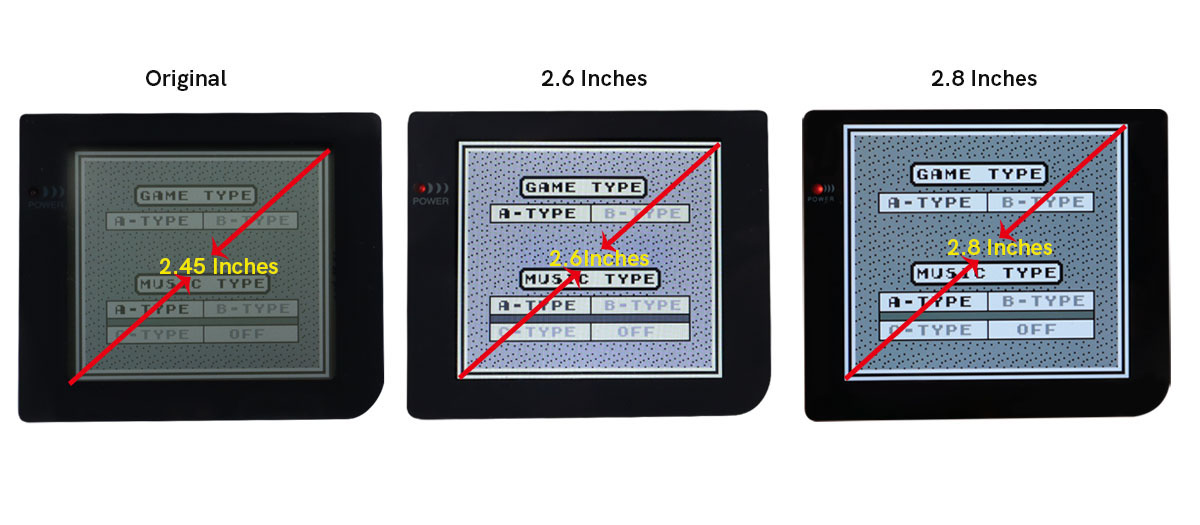

3. 22% larger than the original LCD. The largest IPS LCD for the GBP console.
4. Wide View angle up to 178 degree.

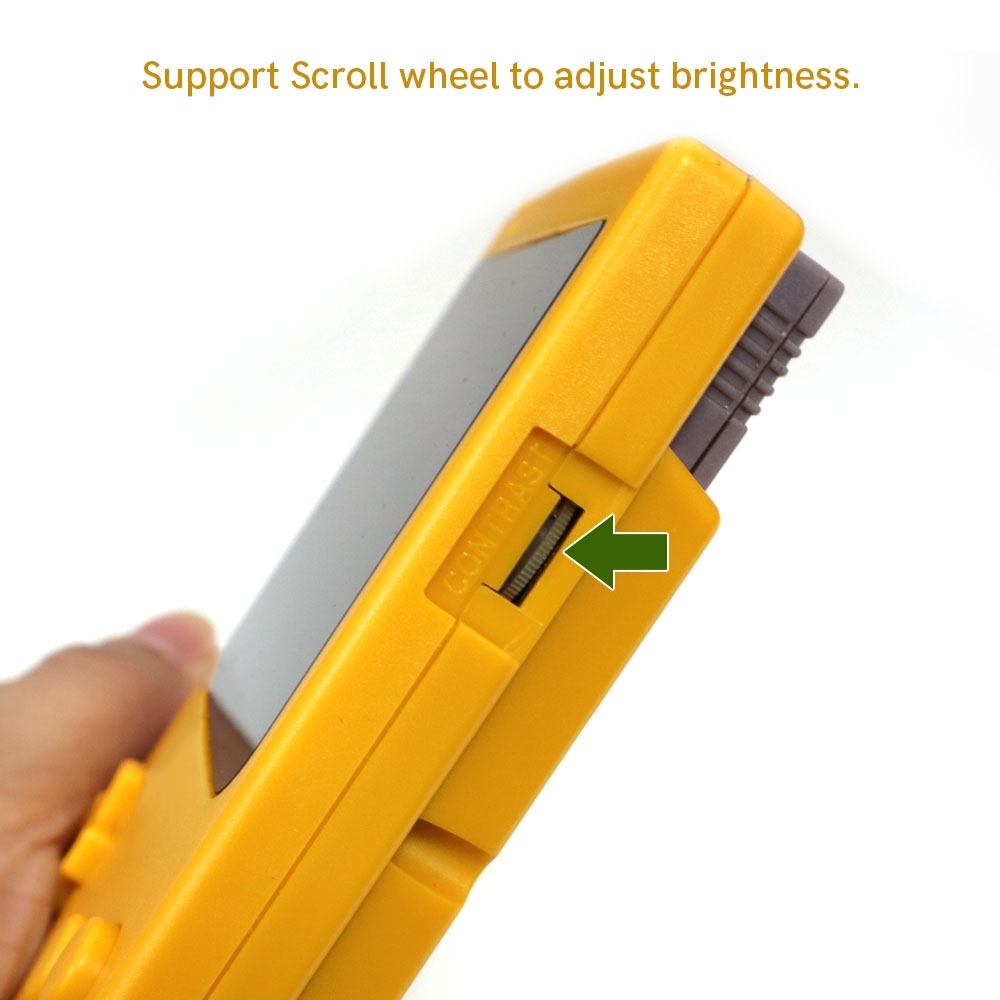

5. Support Spin the wheel to adjust the brightness.

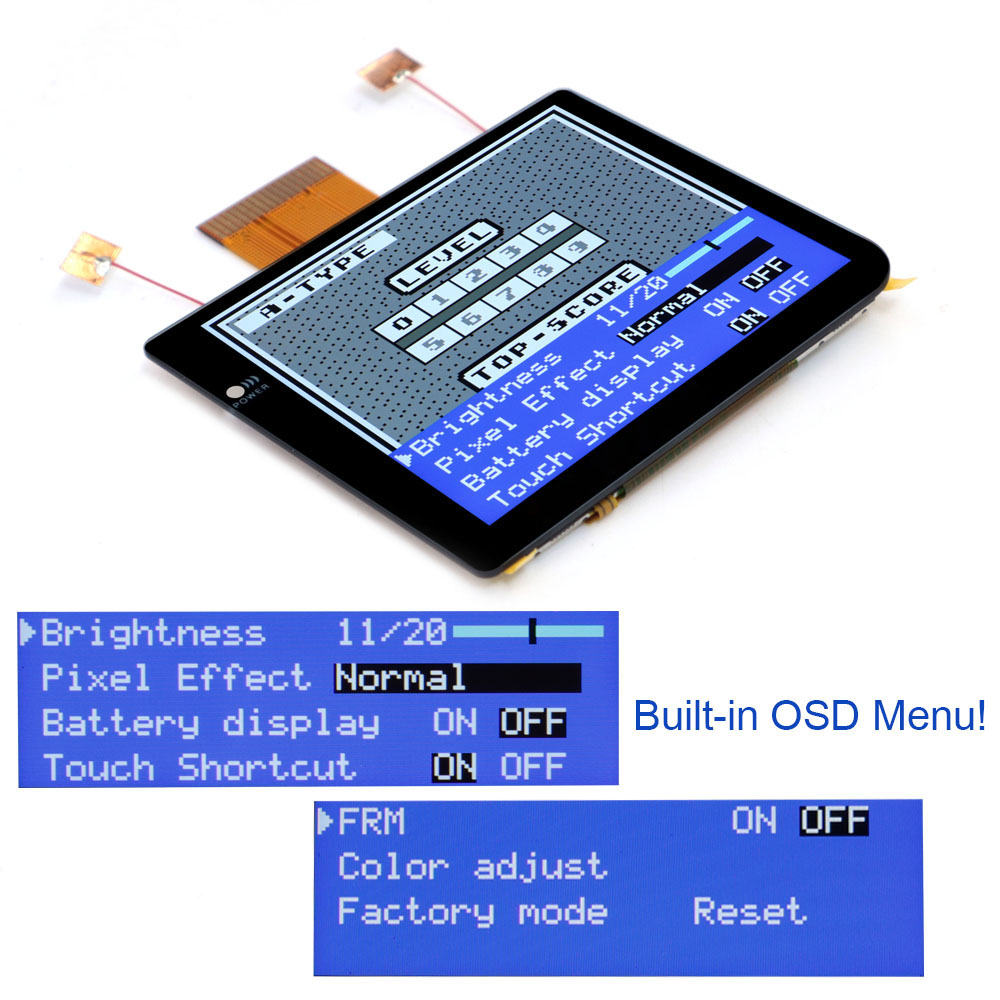

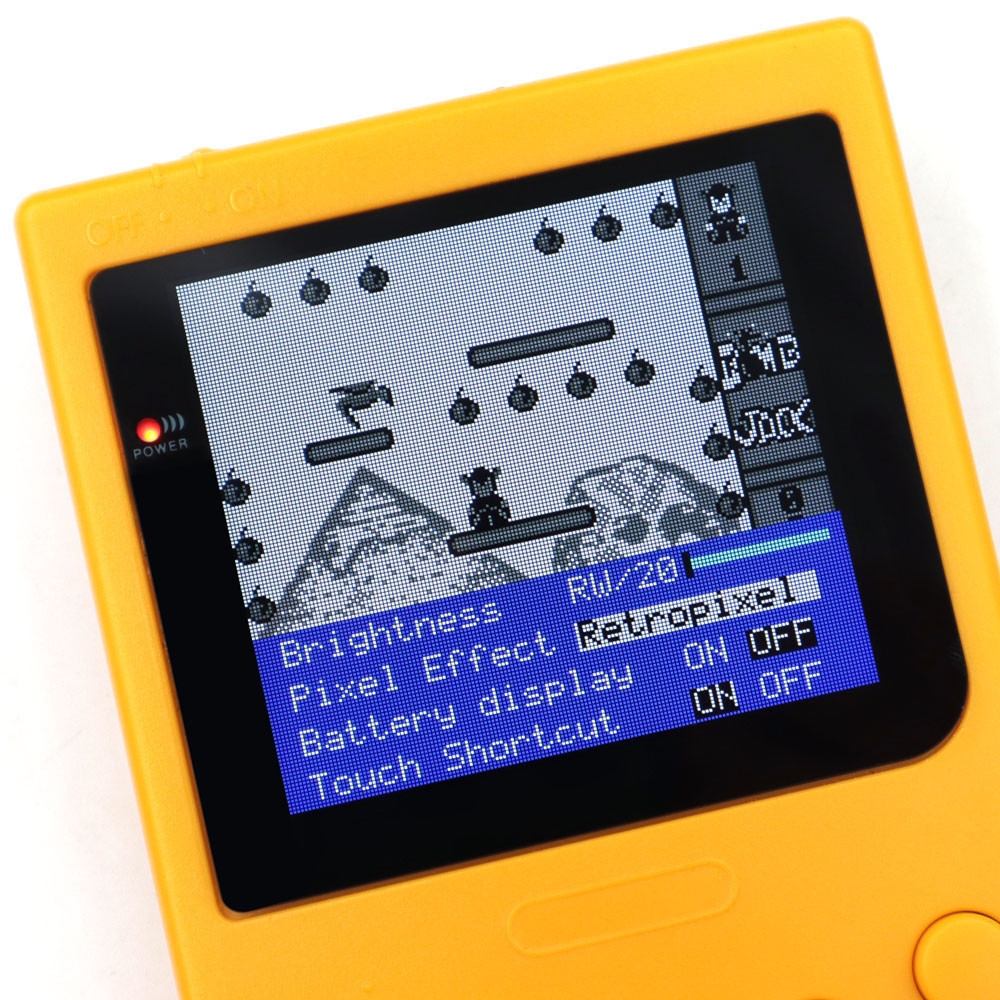

6. Built-in OSD Menu! Touch to operate the OSD menu.
7. 20 brightness levels.

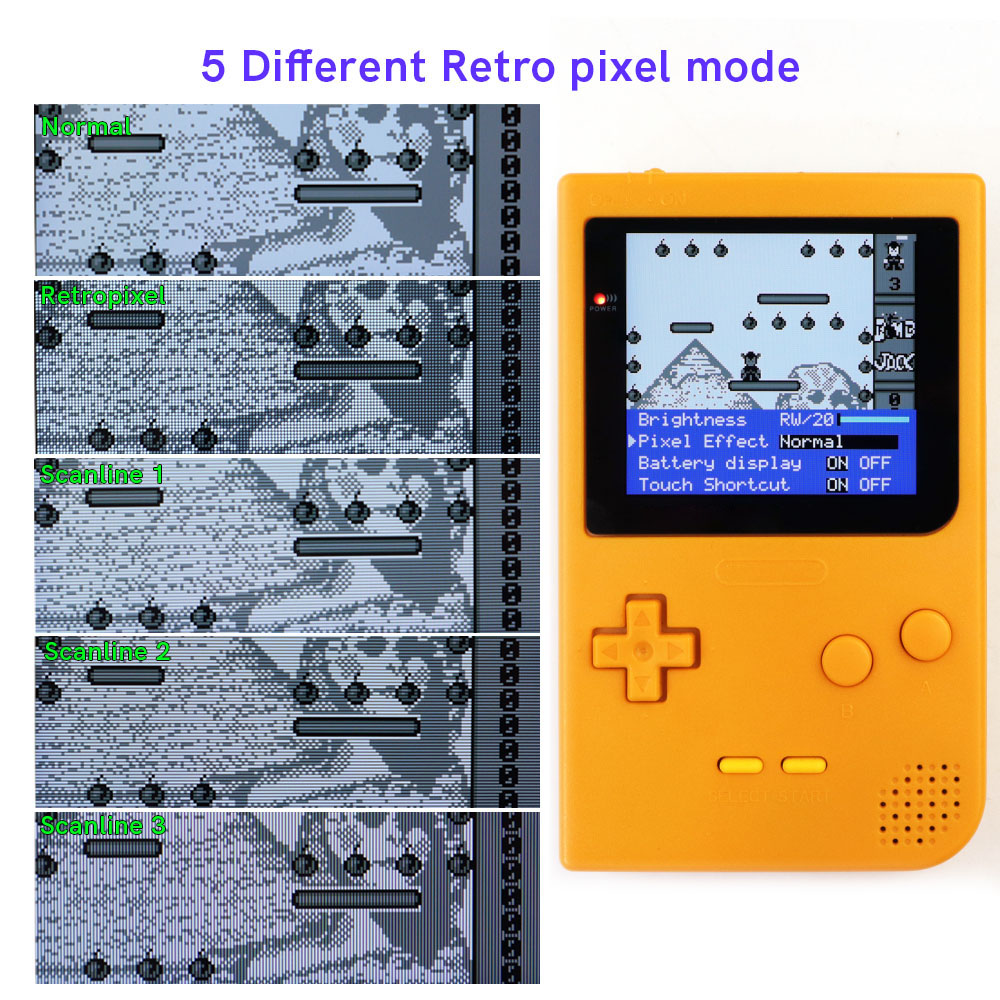

8. Retro Pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2, Scanline 3.
9. Battery level display On/OFF

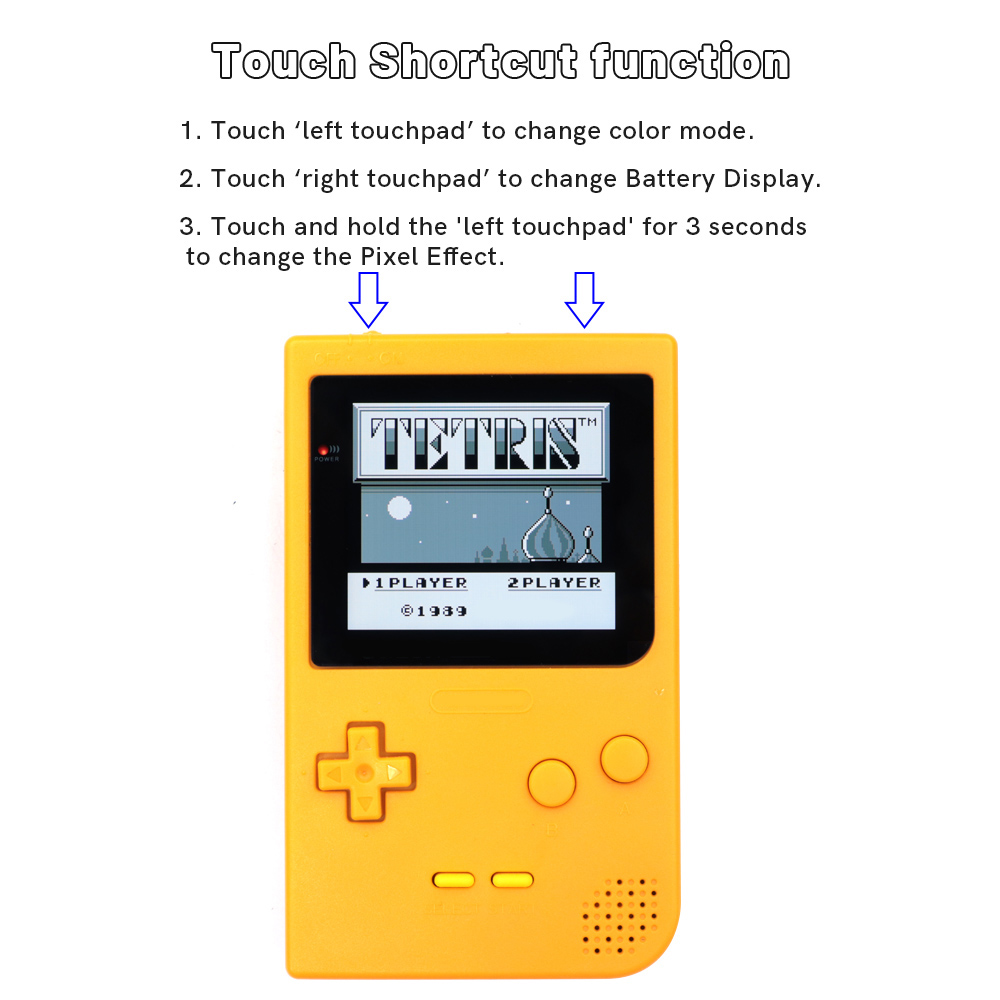

10. ‘Touch Shortcut ON/OFF’ function. Set ‘Touch Shortcut’ OFF to avoid auto cycling color modes.
11. FRM On/OFF function (Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

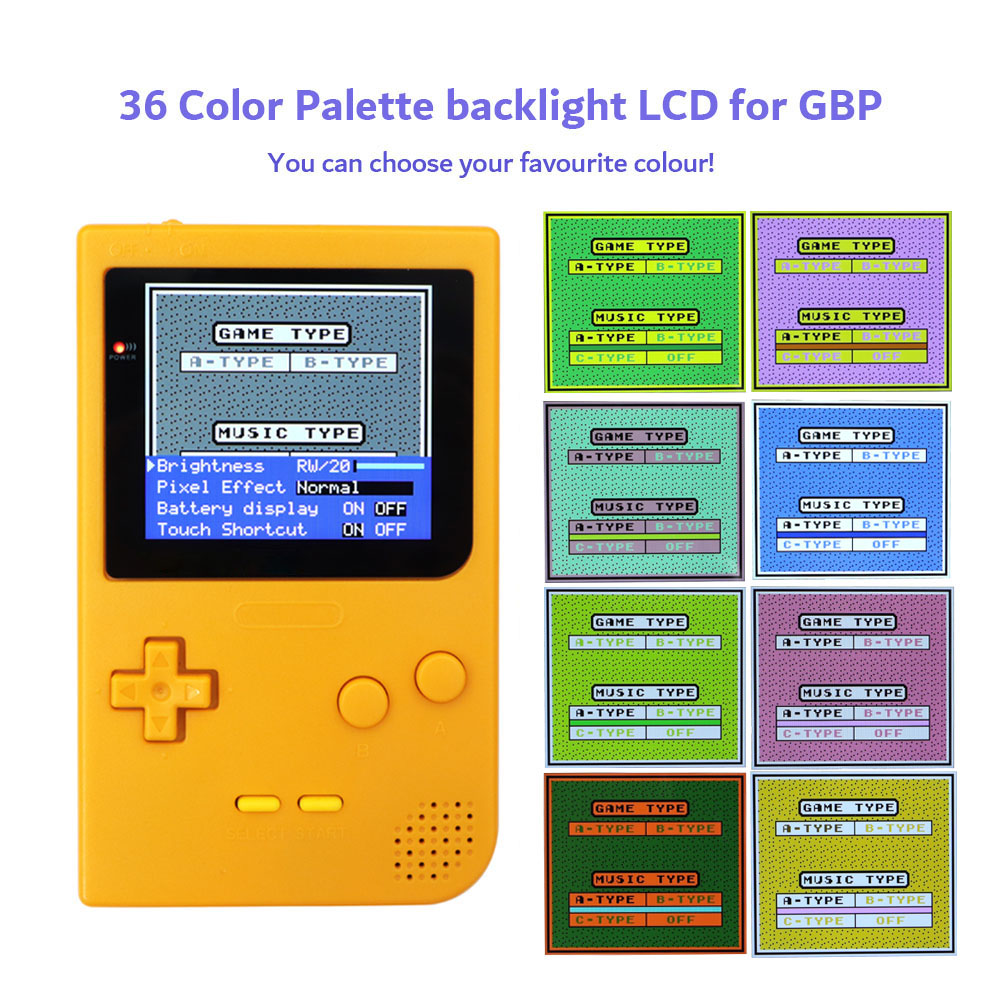

12. Built-in 36 color modes. Each ‘color mode’ can be adjustable.

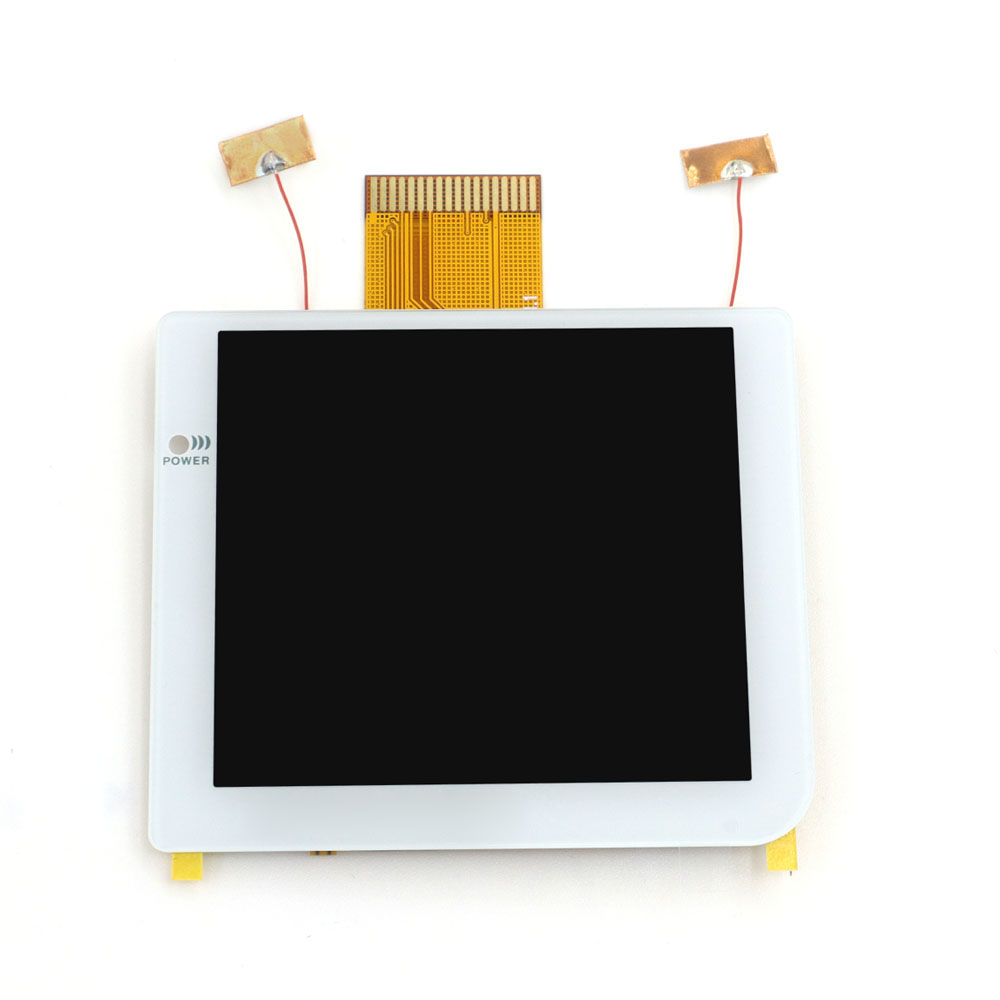

13. Glass lens: White

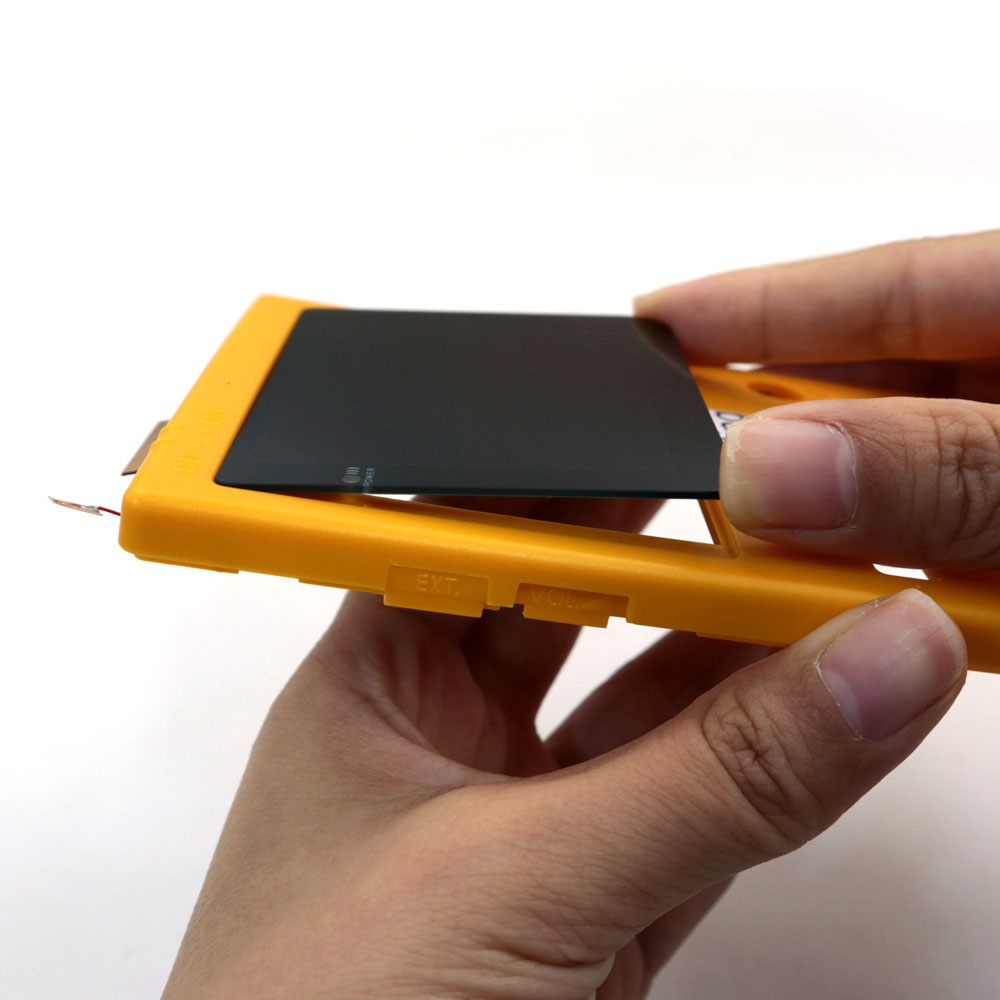

You need to cut the shell case to put in the Laminated IPS LCD if you just buy lcd screen kit. Please contact me after you receive the product. I will send the instruction manual to you.

Or, you can buy the customized shell from this listing if you don’t want to cut the shell case by yourself.

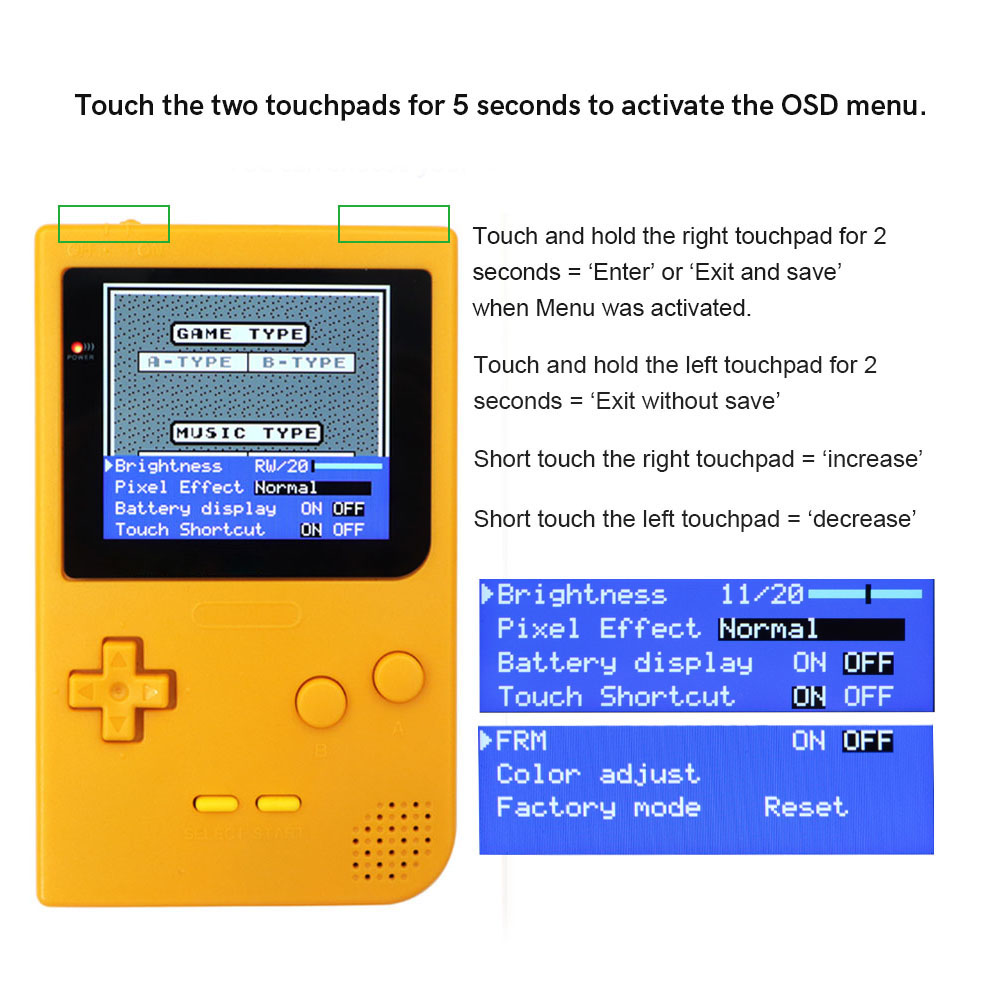

Using touchpad to operate the OSD Men：

-Touch the two touchpads for 3 seconds to activate the OSD menu.

-Touch and hold the right touchpad for 2 seconds = ‘Enter’ or ‘Exit and save’ when Menu was activated.

-Touch and hold the left touchpad for 2 seconds = ‘Exit without save’ when Menu was activated.

-Short touch the right touchpad = ‘increase’ when Menu was activated.

-Short touch the left touchpad = ‘decrease’ when Menu activated.

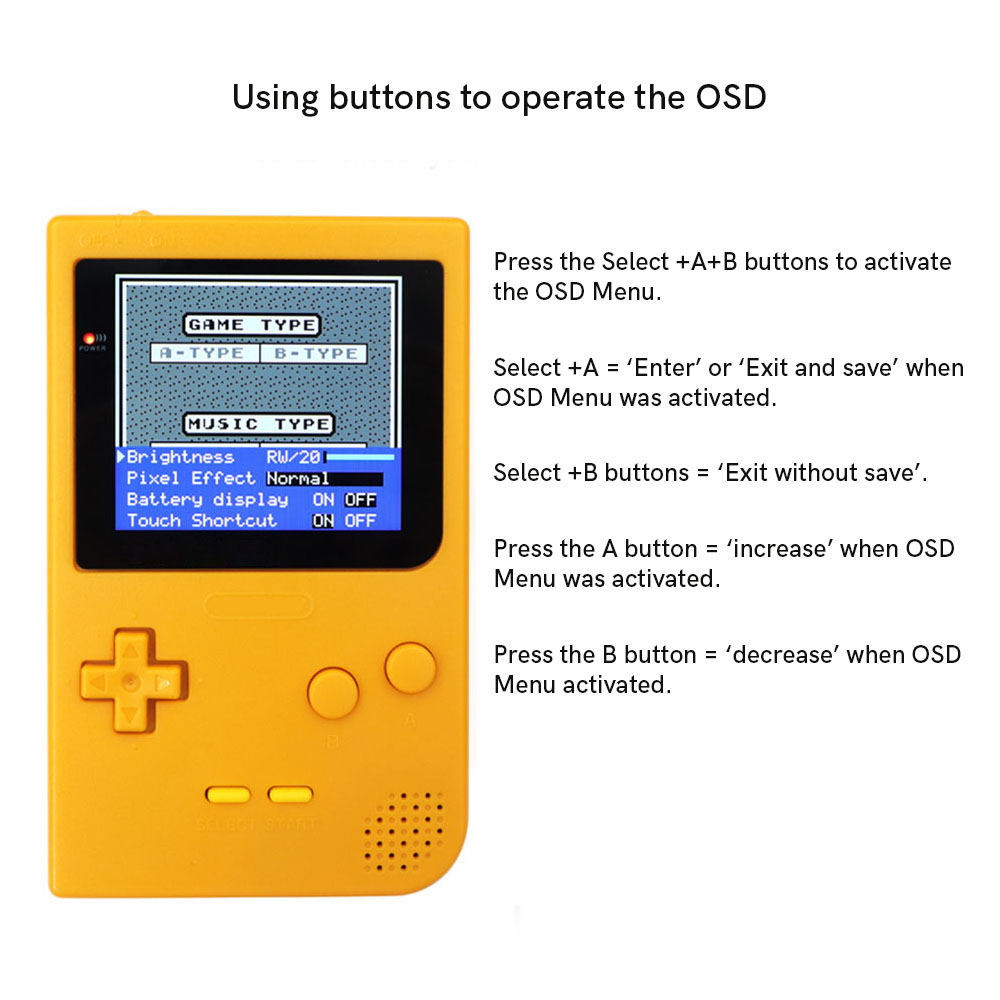

This kit also supports using buttons to operate the OSD. But you need to weld 3 wires to control the OSD Menu:

-Press the Select +A+B buttons to activate the OSD Menu.

-Press the Select +A buttons = ‘Enter’ or ‘Exit and save’ when OSD Menu was activated.

-Press the Select +B buttons = ‘Exit without save’ when OSD Menu was activated.

-Press the A button = ‘increase’ when OSD Menu was activated.

-Press the B button = ‘decrease’ when OSD Menu activated.

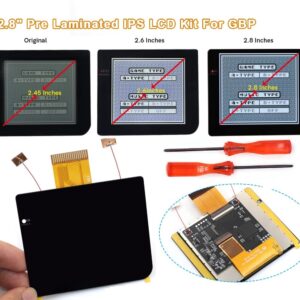

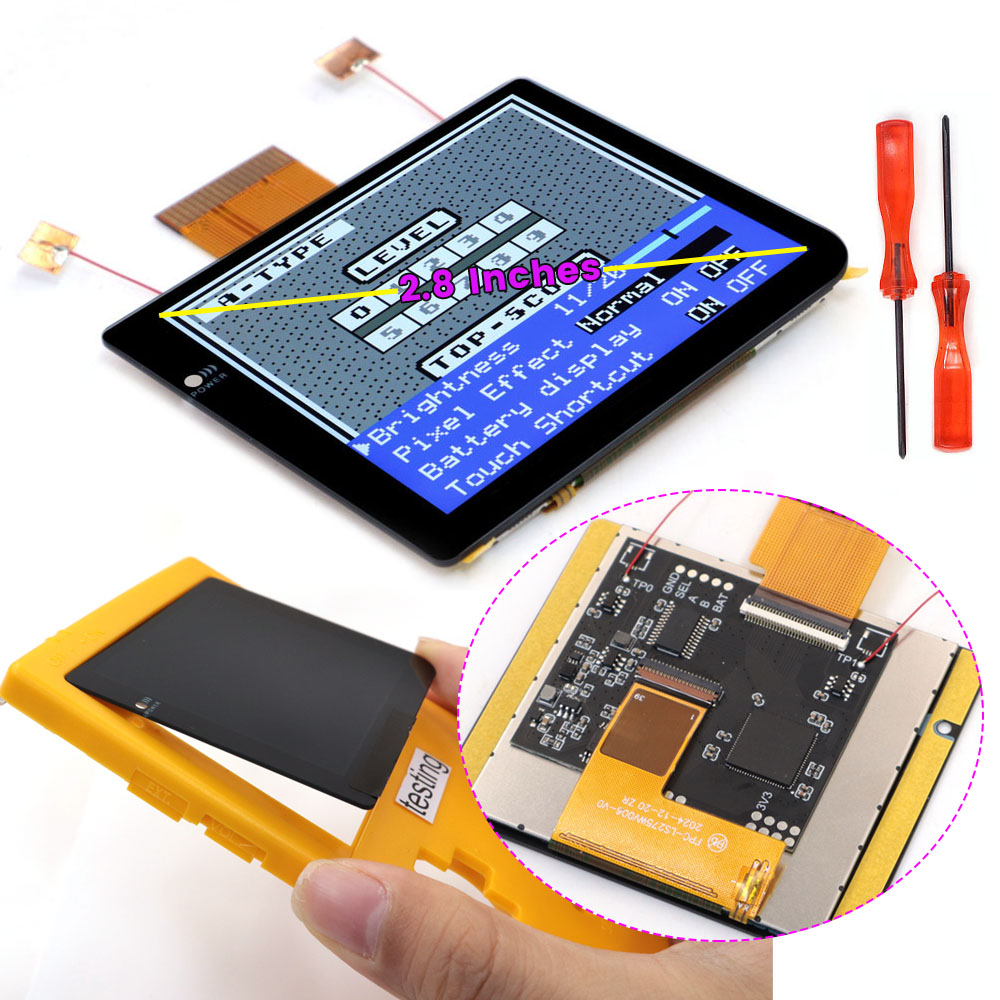

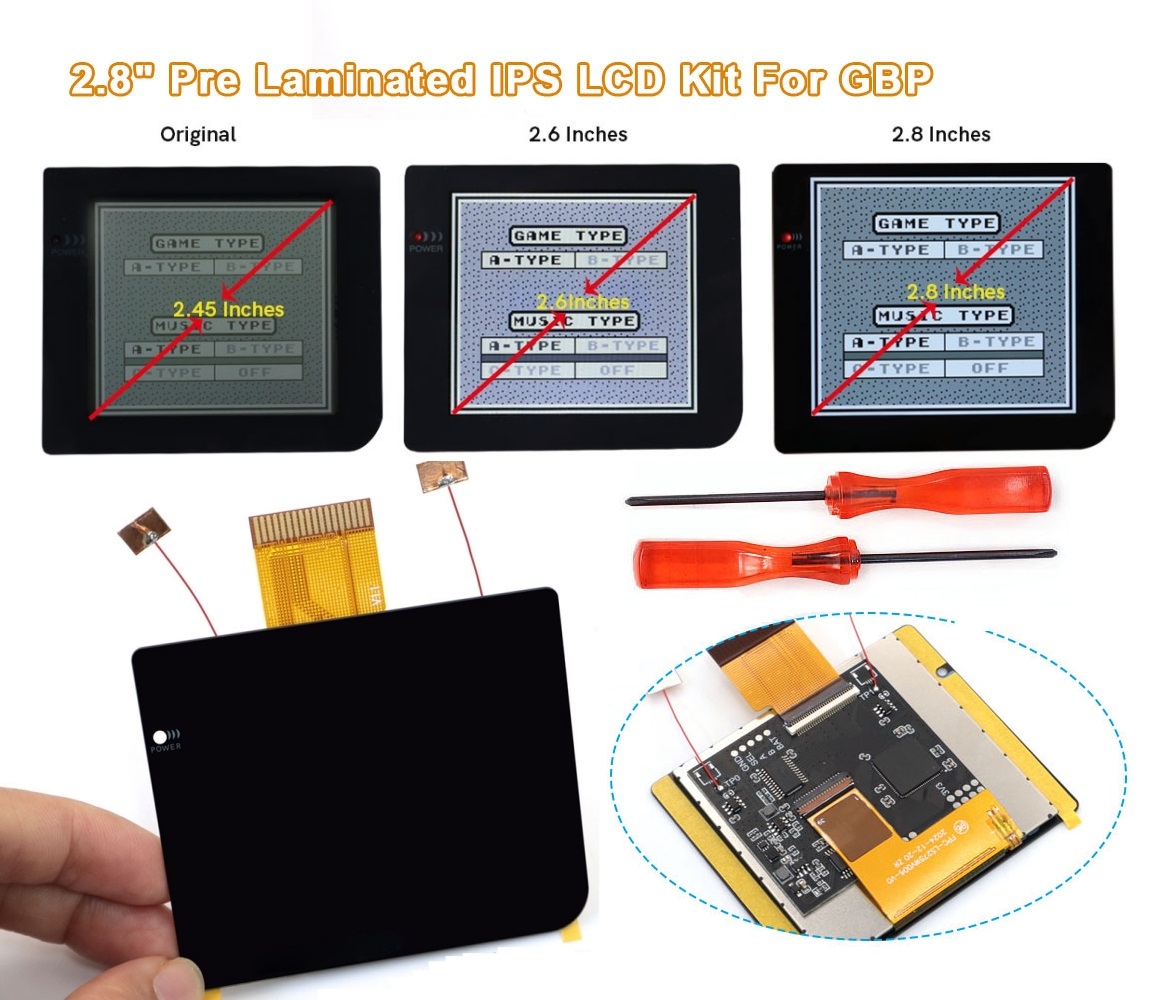

Package included:  (Only LCD Kit)

1x IPS LCD
1x PCB
1x flex cable
2xScrewdrivers
4x red wires

Or: (LCD Kit with shell case)

1x IPS LCD
1x PCB
1x flex cable
2x Screwdrivers
4x red wires
1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws

Instructions:
