Description：

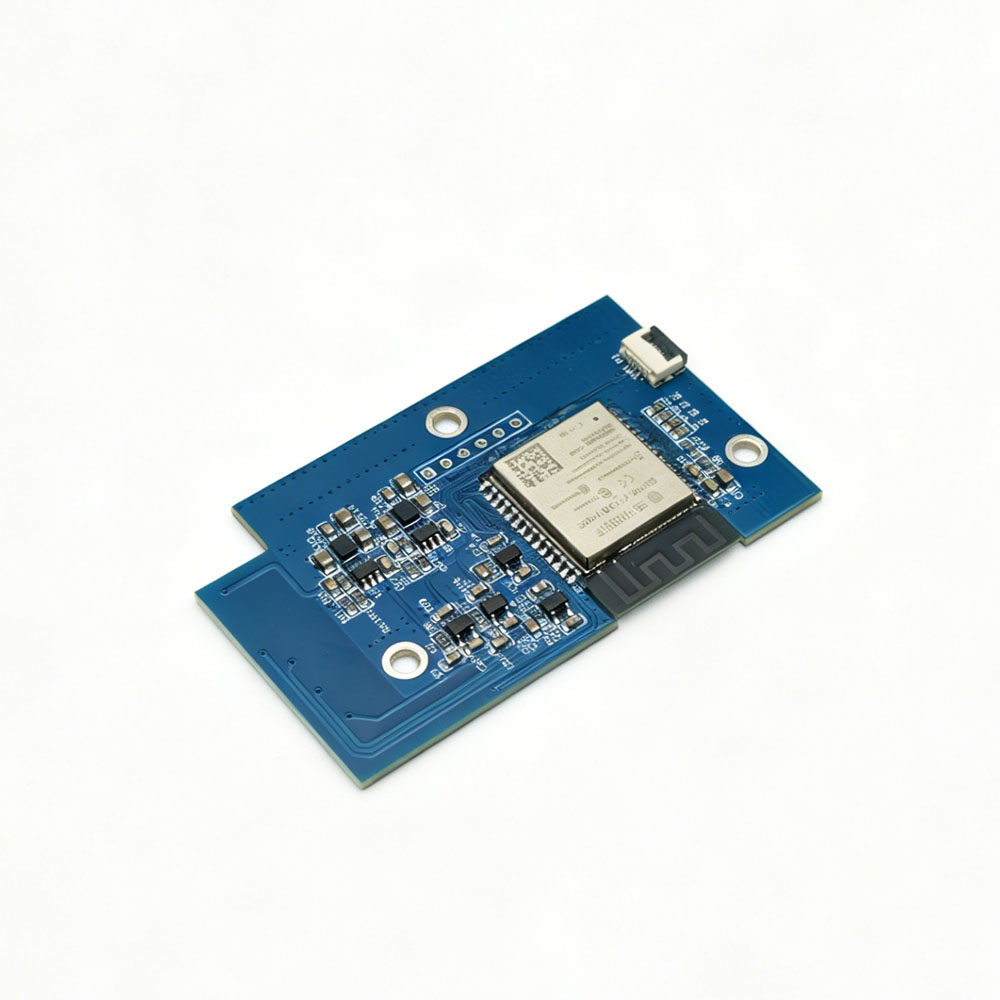

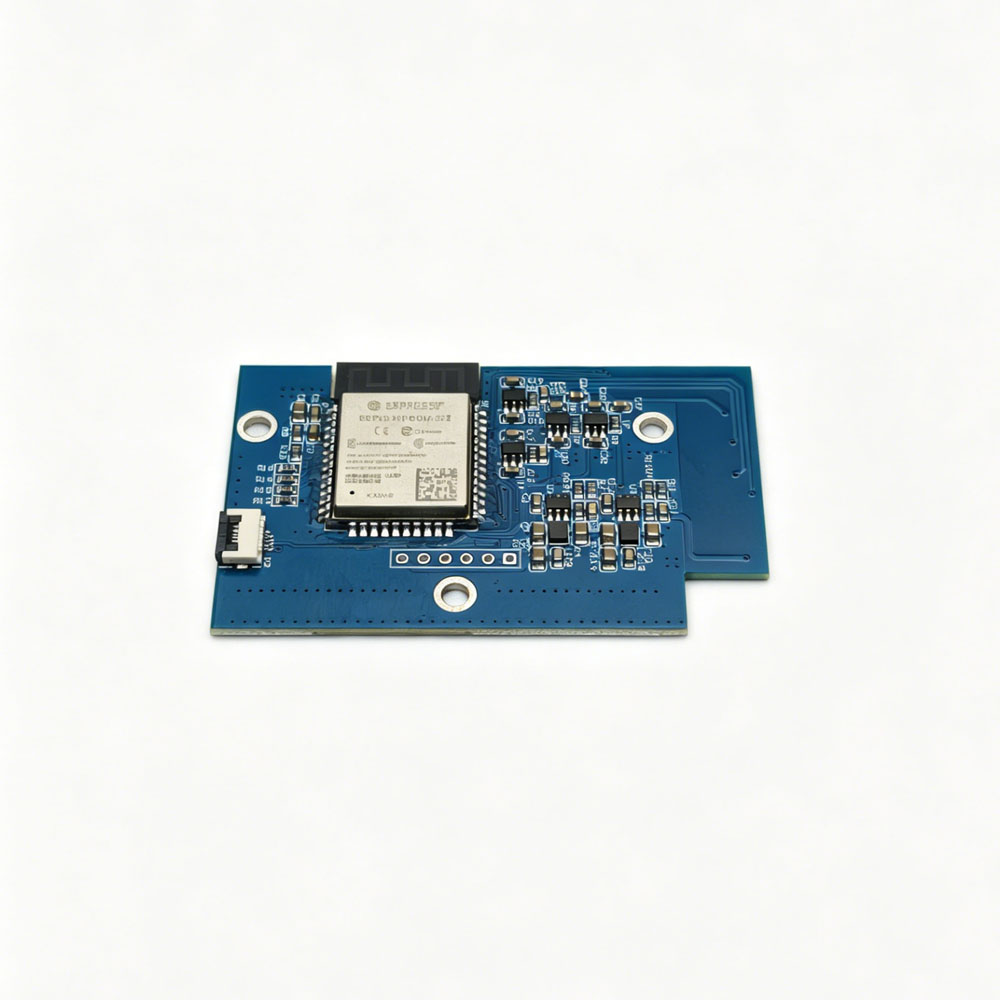

iBlueControlMod adapter is a high speed Bluetooth controller interface that opens retro consoles up to the plethora of modern controllers with latencies that even some wired adapters can’t manage. This new board allows for the use of up to 4 connected Bluetooth controllers, and can be mixed and matched with wired controllers on any of the ports for seamless operation.
Features:

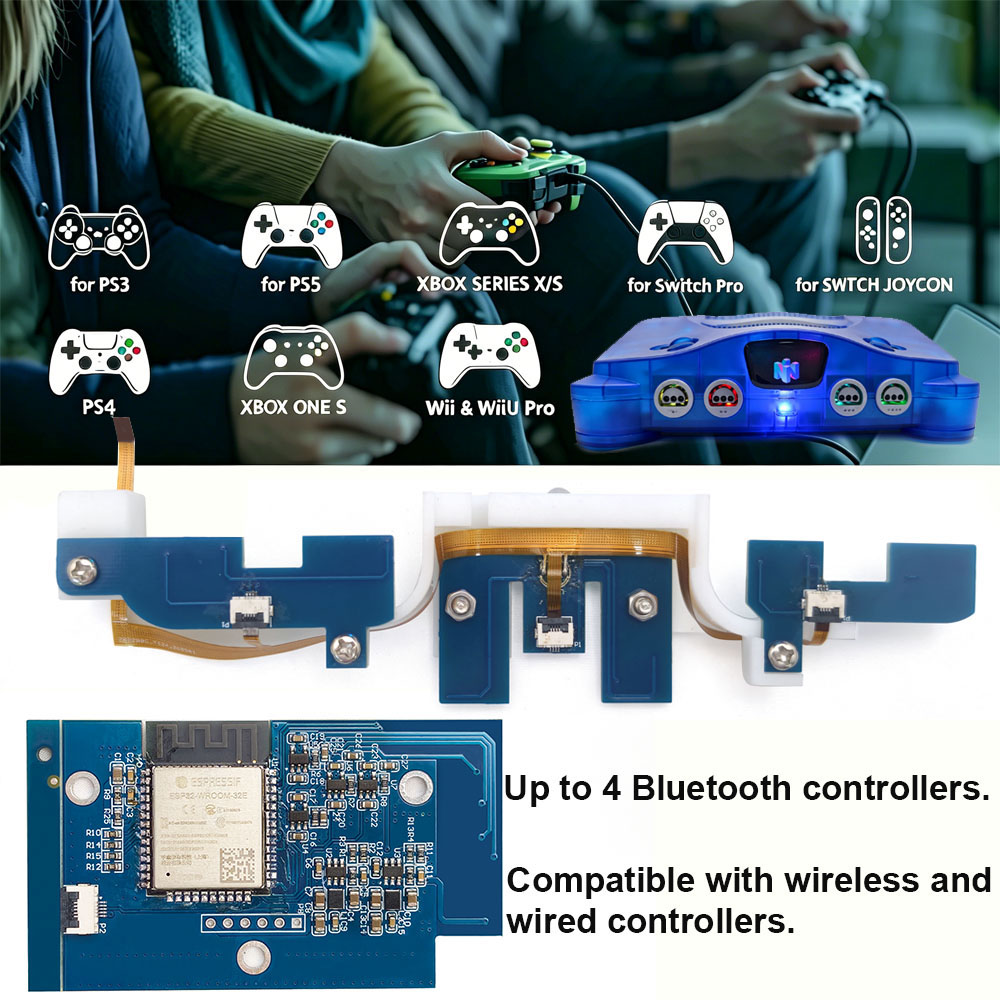

*Up to 4 Bluetooth controllers can be paired at once.
*Easy installation, good choice for green hands, just open shell and put the mod adapter inner machine to enable consoles connecting wireless joypads.
*Easy firmware update tool that only requires a Bluetooth enabled device like a computer (incompatible phone).
*Configurable button mapping using a applications software on a computer.

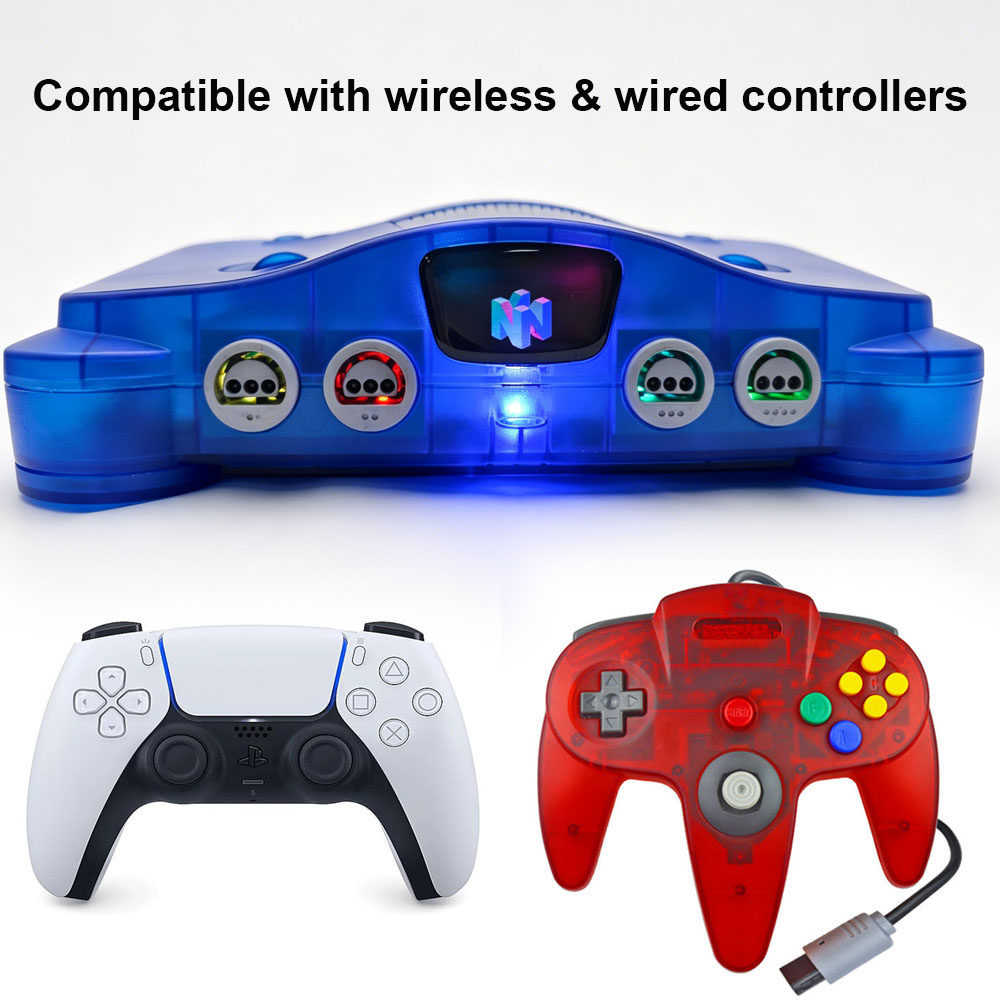

*N64 wired controllers are still available after updating this Bluetooth mod.
*Built in LED indicator, make connecting more clear.

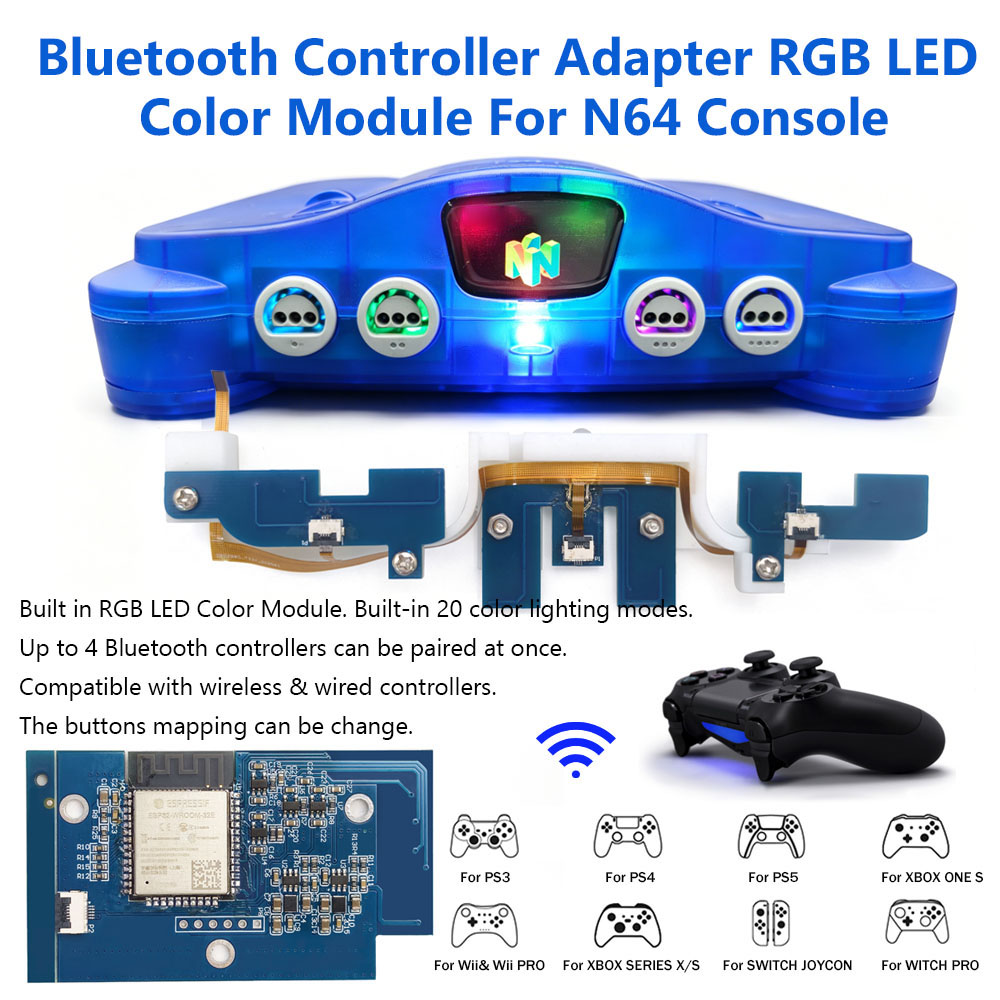

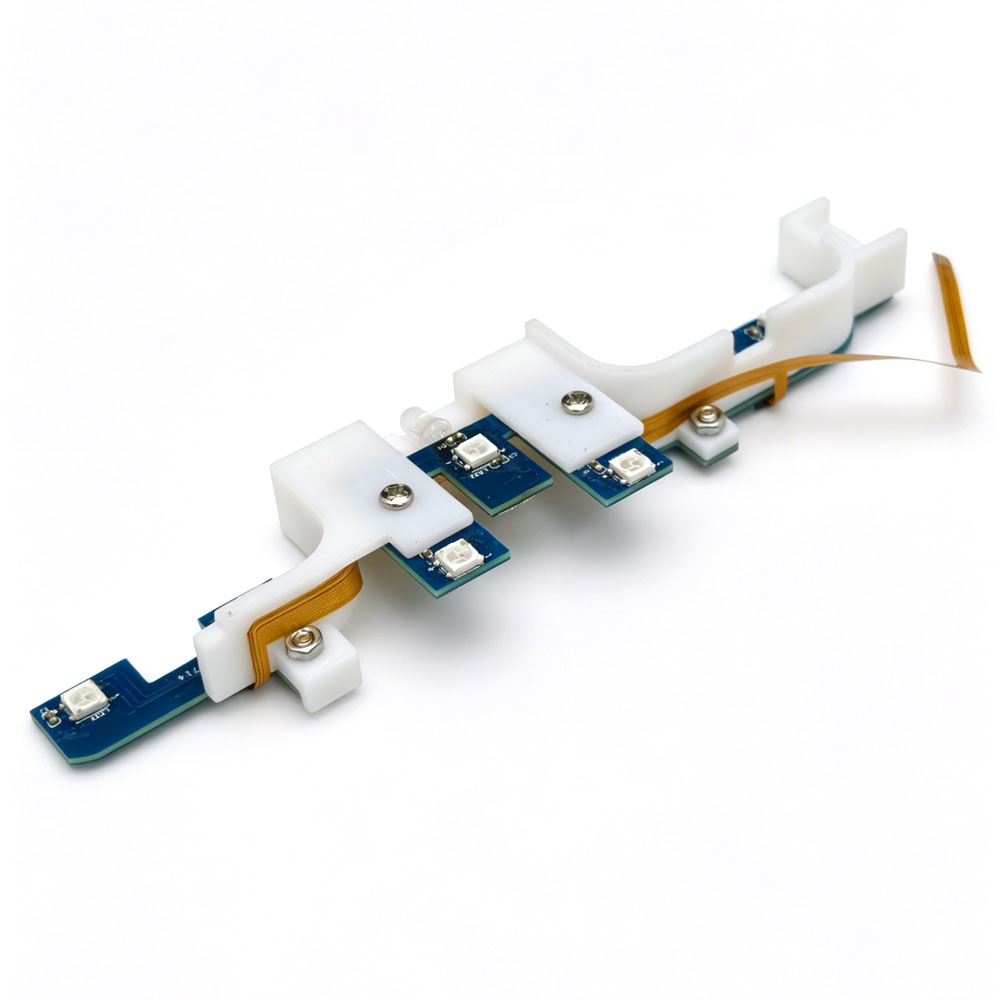

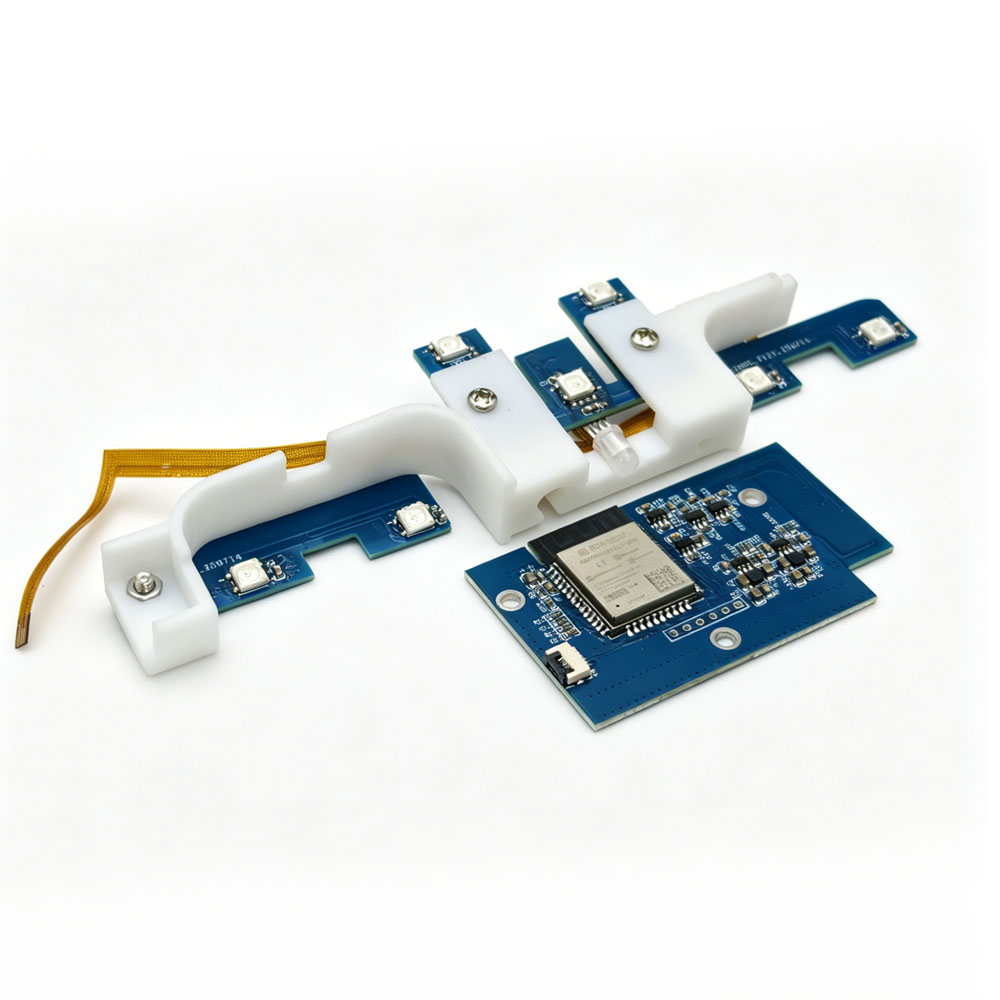

*Built in RGB LED Color Module. Built-in multiple color lighting modes.
Compatible Controllers:
Support PS3/PS4/PS5/Xbox One S/Xbox Series X|S/Wii/Wii U Pro/Switch Pro/Switch Joycon Wireless Controllers, etc.
Reset Button Usage:

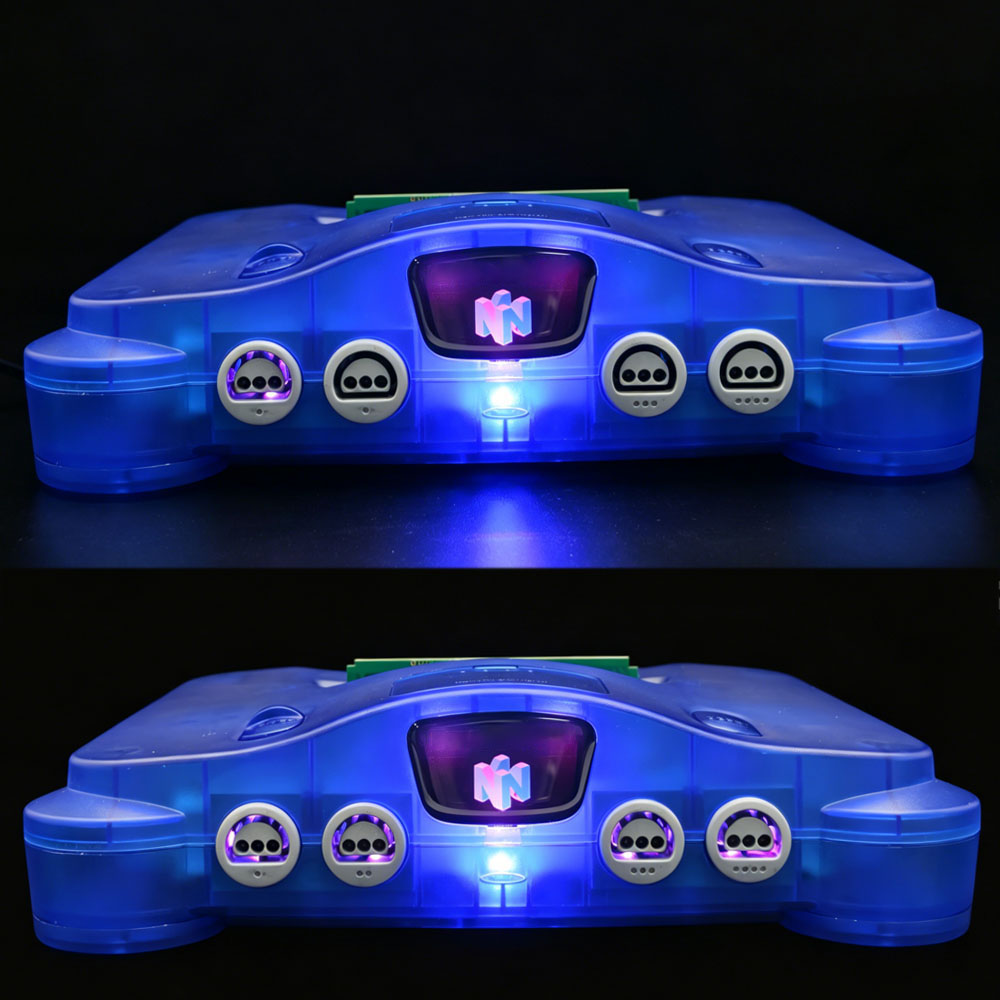

The reset button on the console has been converted to offer new functionality based on how long you hold the button down. While it is being pressed the front ports will light up to show which state you will be enabling.
1. Holding for 0-3 seconds will perform the same action as on a stock console, reset.
In this state all four front port LEDs will be solid on.
2. Holding for 4-6 seconds will disconnect all connected Bluetooth controllers
In this state all four front port LEDs will be slowly blinking.
3. Holding for 7-9 seconds will enable pairing mode
In this state all four front port LEDs will be blinking faster
4. Holding for 10 seconds or more will factory reset to the original firmware and remove any custom configs
In this state all four front port LEDs will be blinking rapidly.
5. Hold reset button while powering on the iBlueControlMod adapter will be in sleep mode and will not interfere with the console use this in the event that a peripheral is not working nicely with iBlueControlMod.

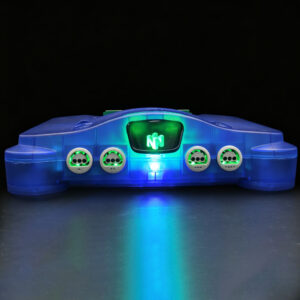

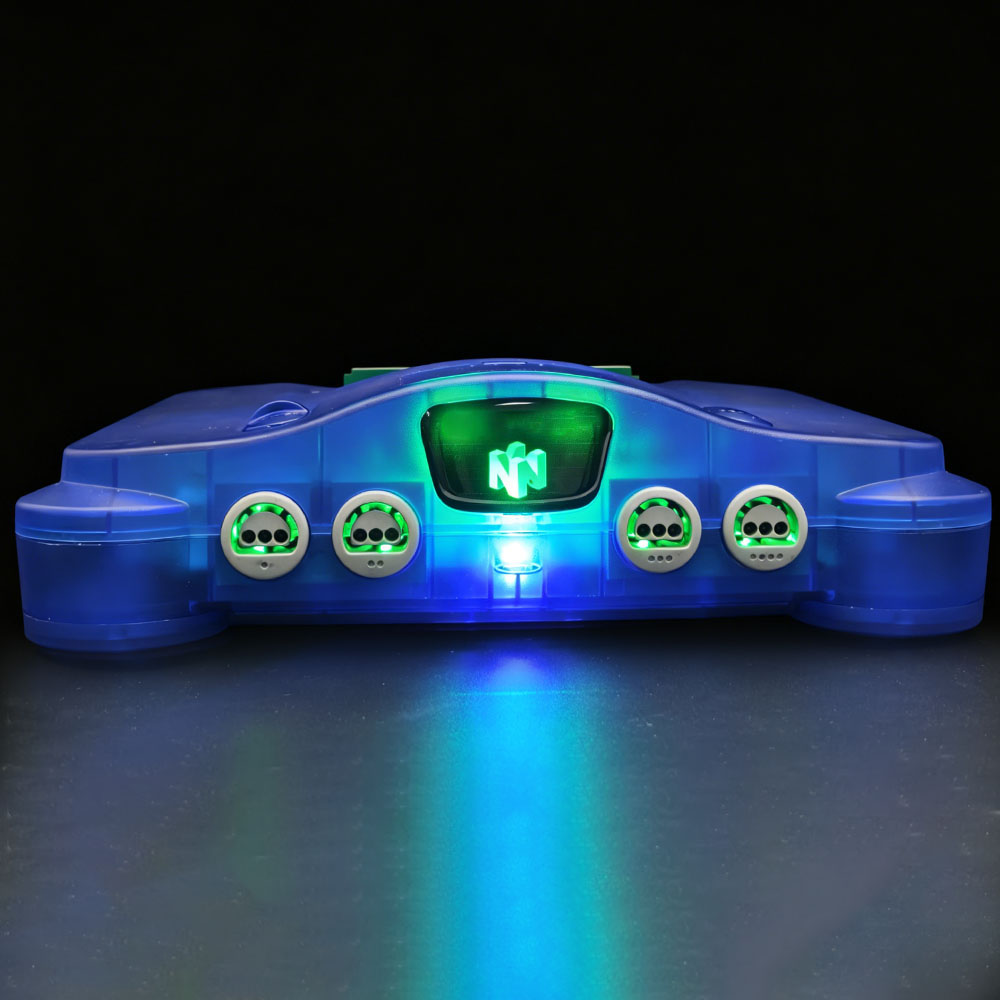

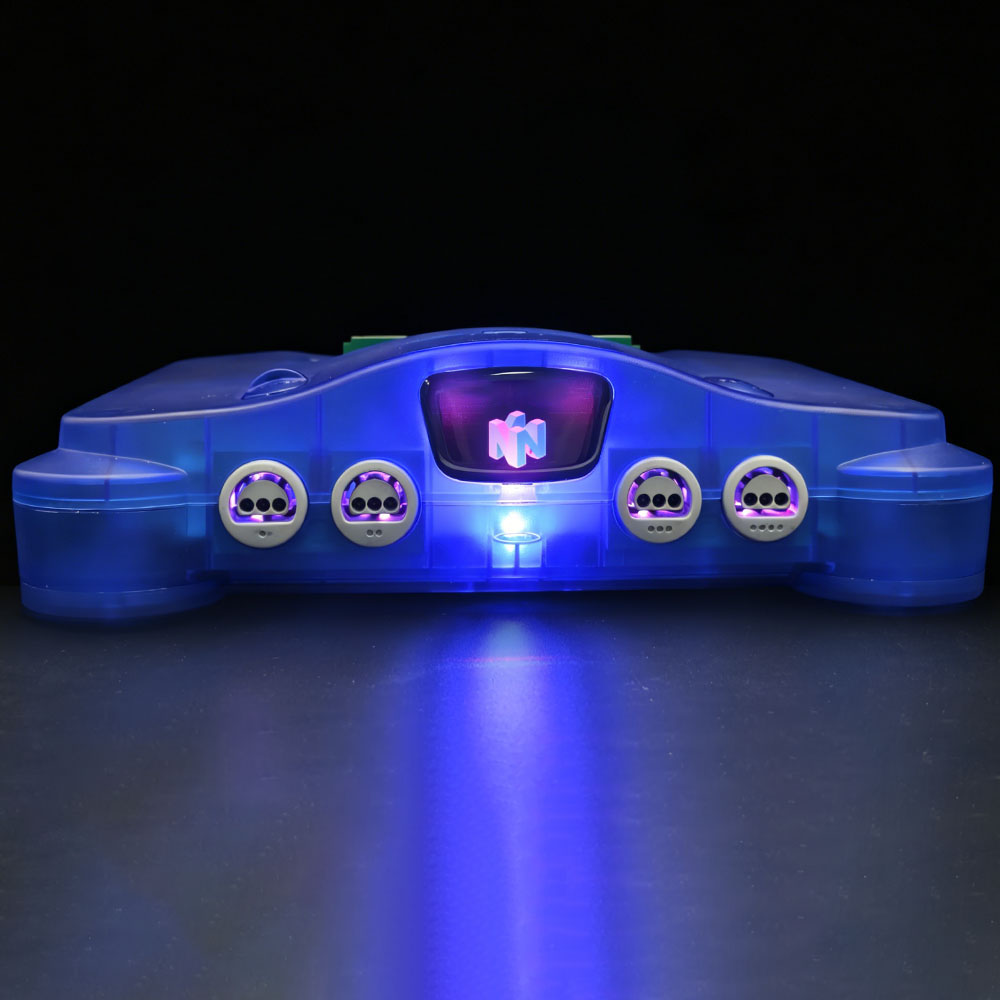

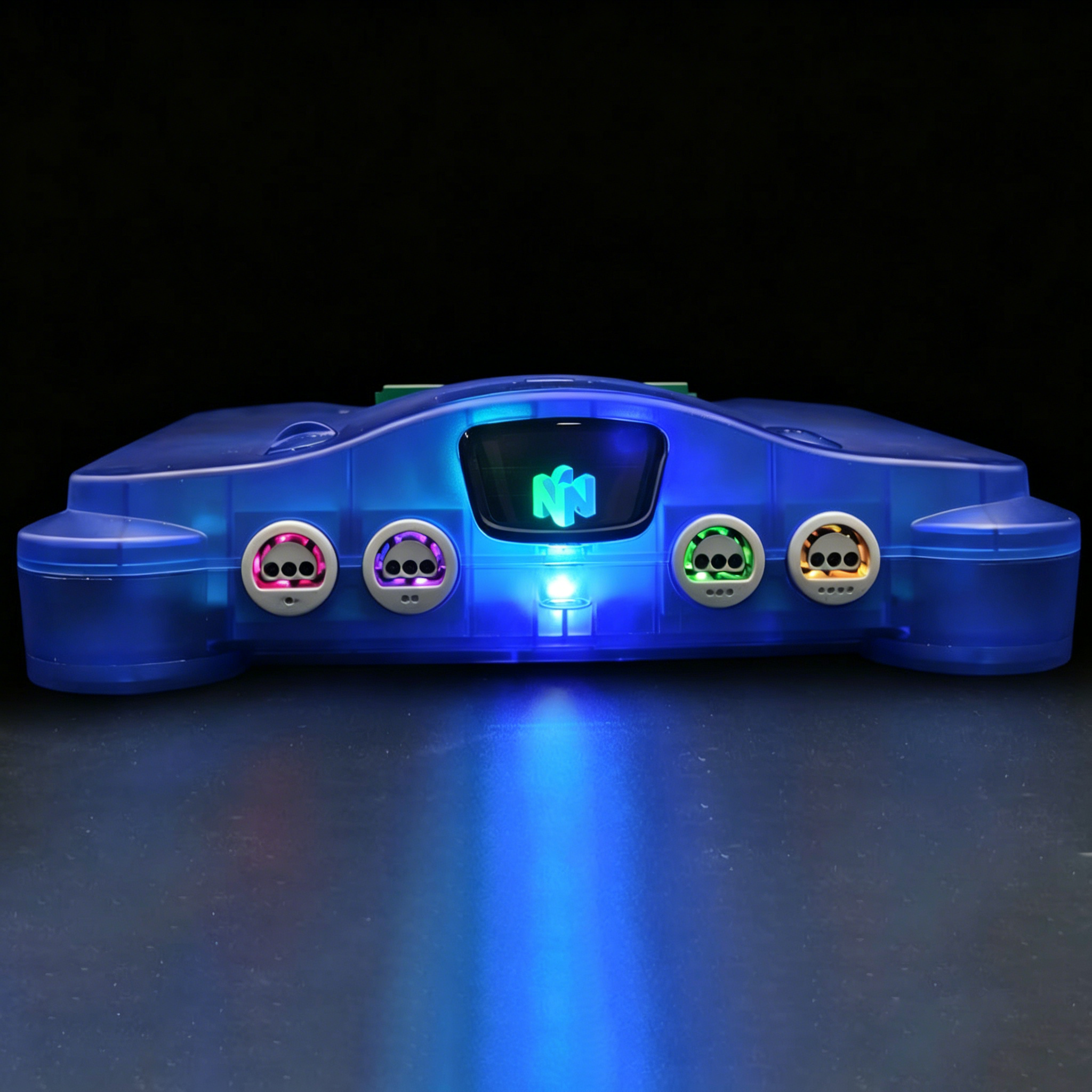

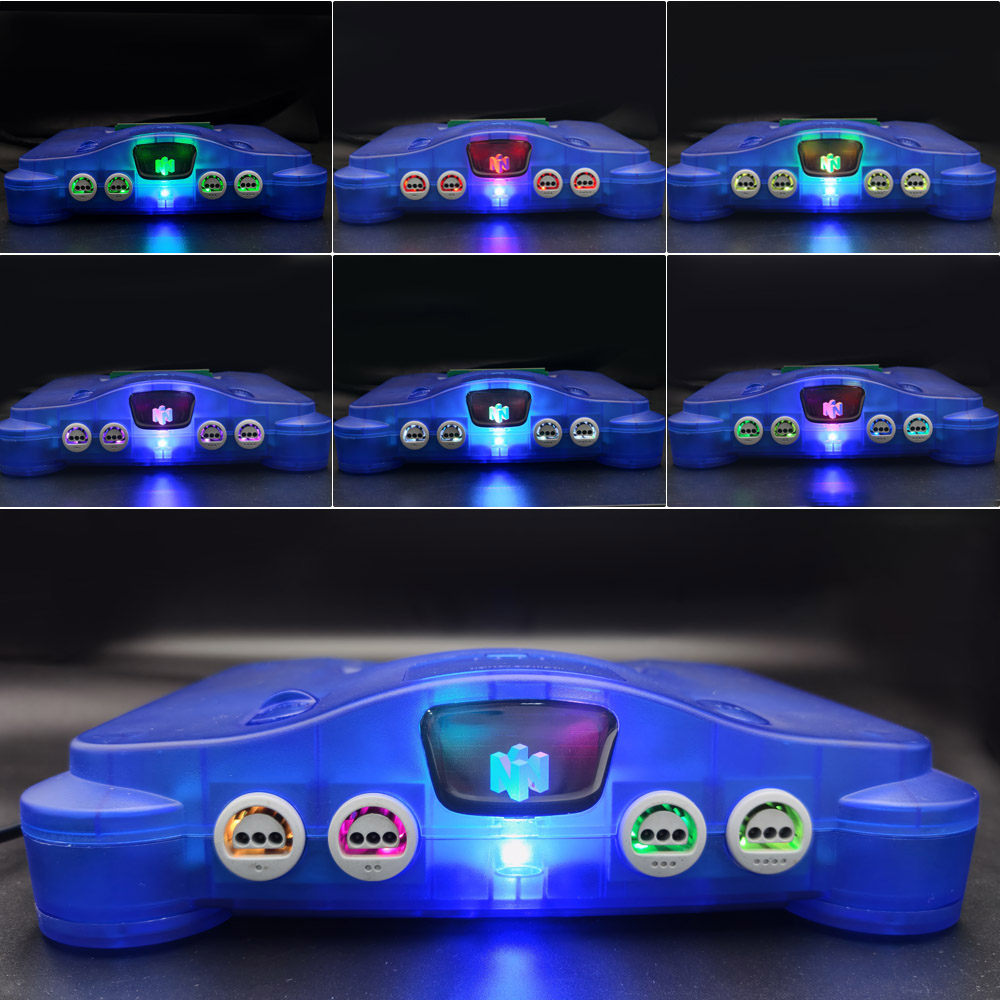

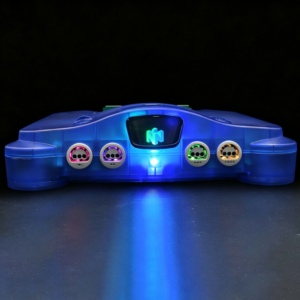

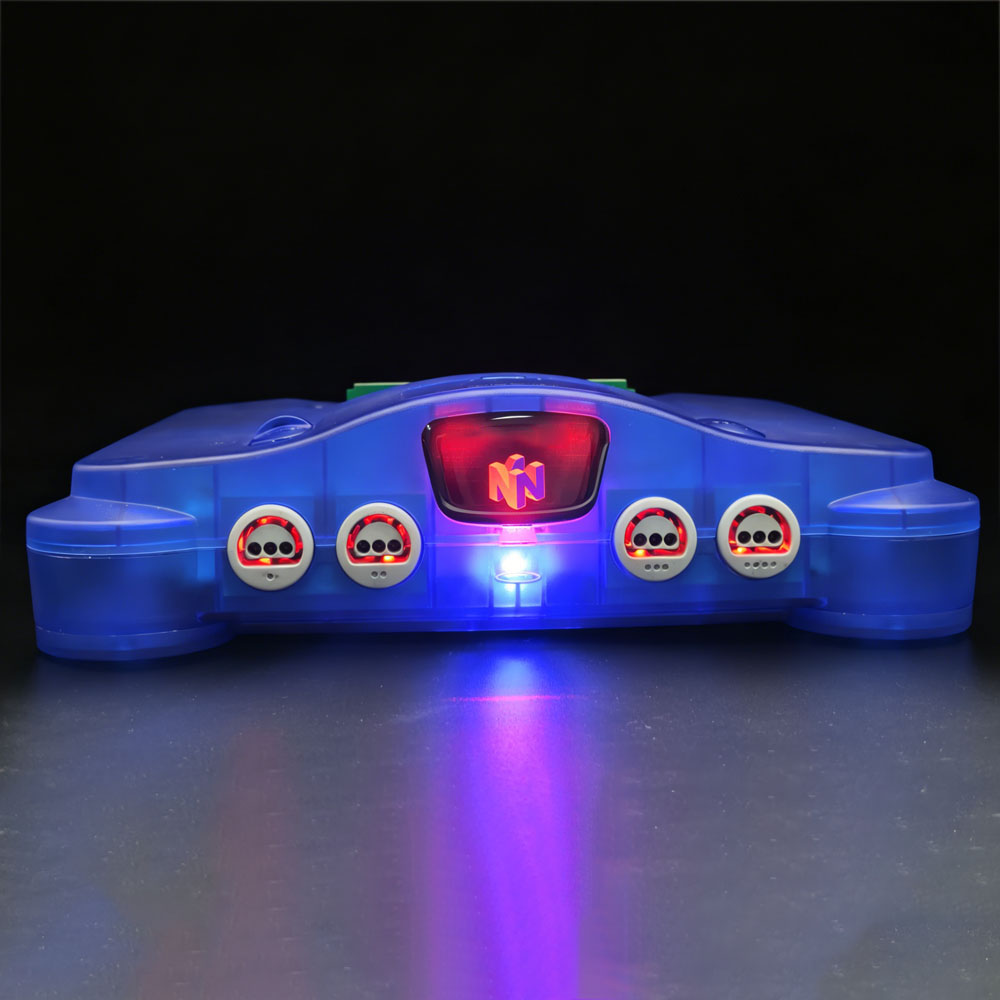

LED color mode operation:
Wireless controller:
Press the “START+L2+R2+D-pad Left” to turn on the LEDs on all four ports. Press the same combination again to return to the previous state.
Press the “START+L2+R2+D-pad Right” to switch the LED color mode.
Original wire controller:
Press the “START+L+R+D-pad Left” to turn on the LEDs on all four ports. Press the same combination again to return to the previous state.
Press the “START+L+R+D-pad Right” to switch the LED color mode.
Package included:
1x iBlueControlMod adapter for N64
Instructions:
