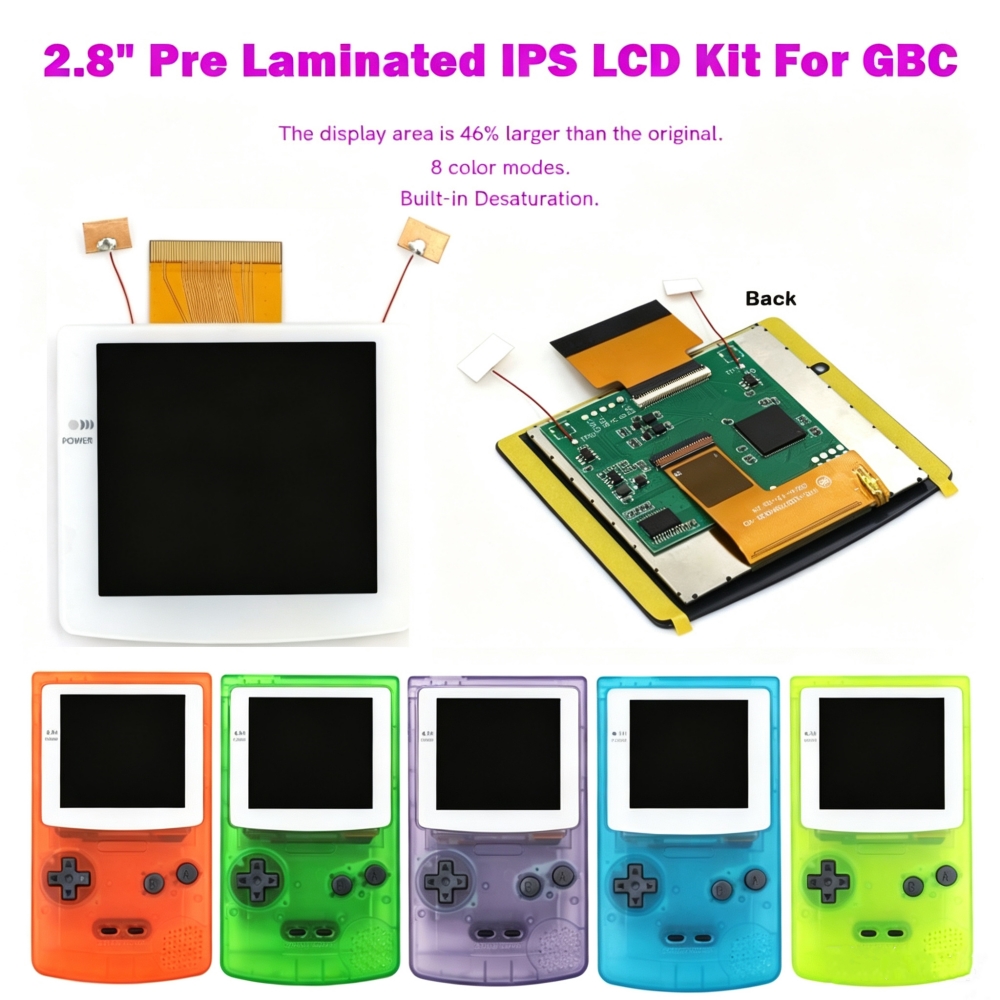

HD Laminated 2.8” Integer Scaling 480×432 Retro Pixel IPS Backlight LCD Screen Kit With Pre-cut Shell For Game Boy Color For GBC

Note: The glass lens has the logo!!!

Description:

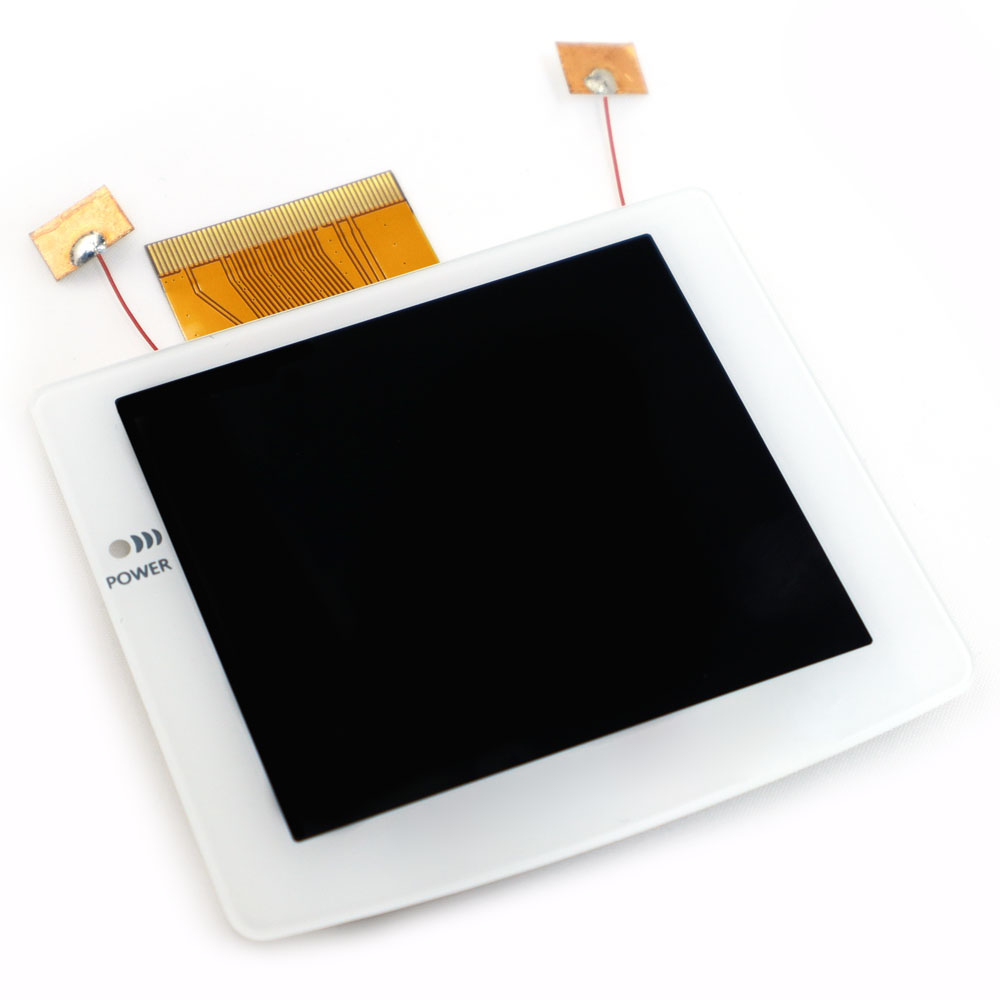

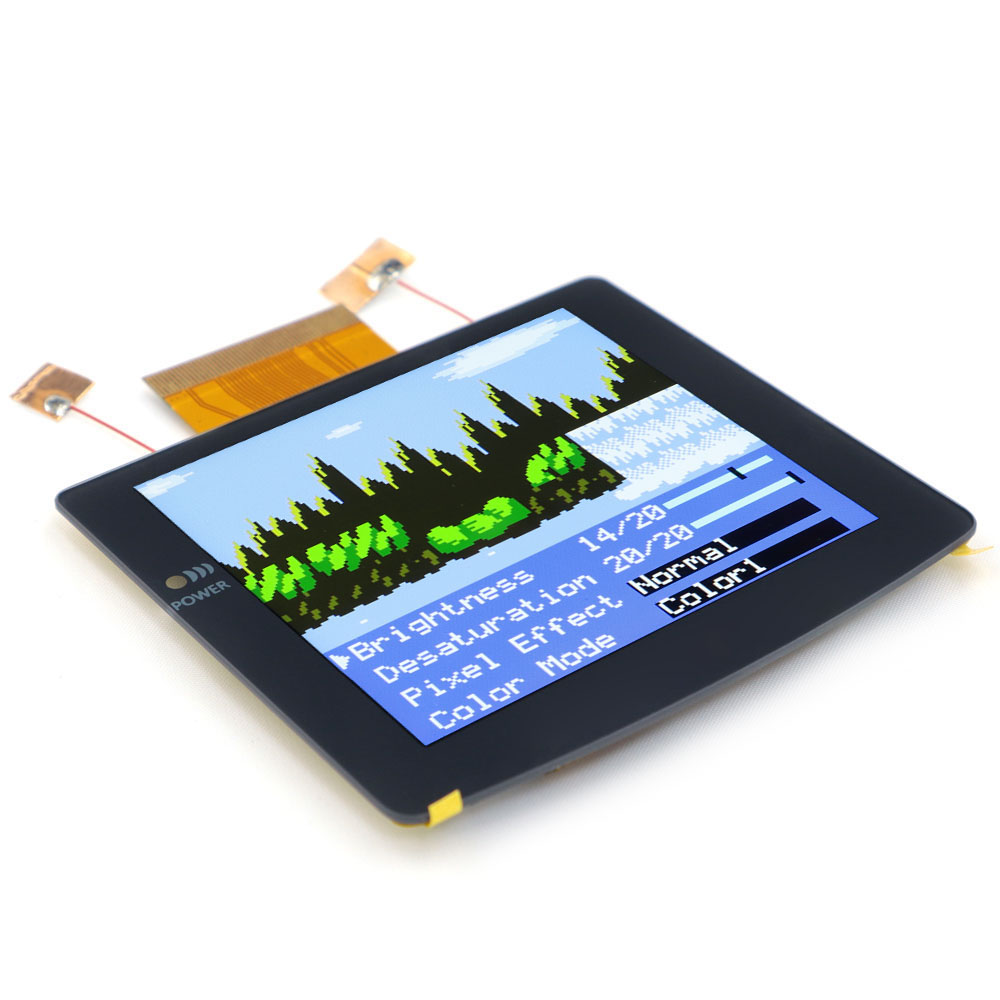

1. This is Pre Laminated Glass Screen IPS LCD. Very easy to install.

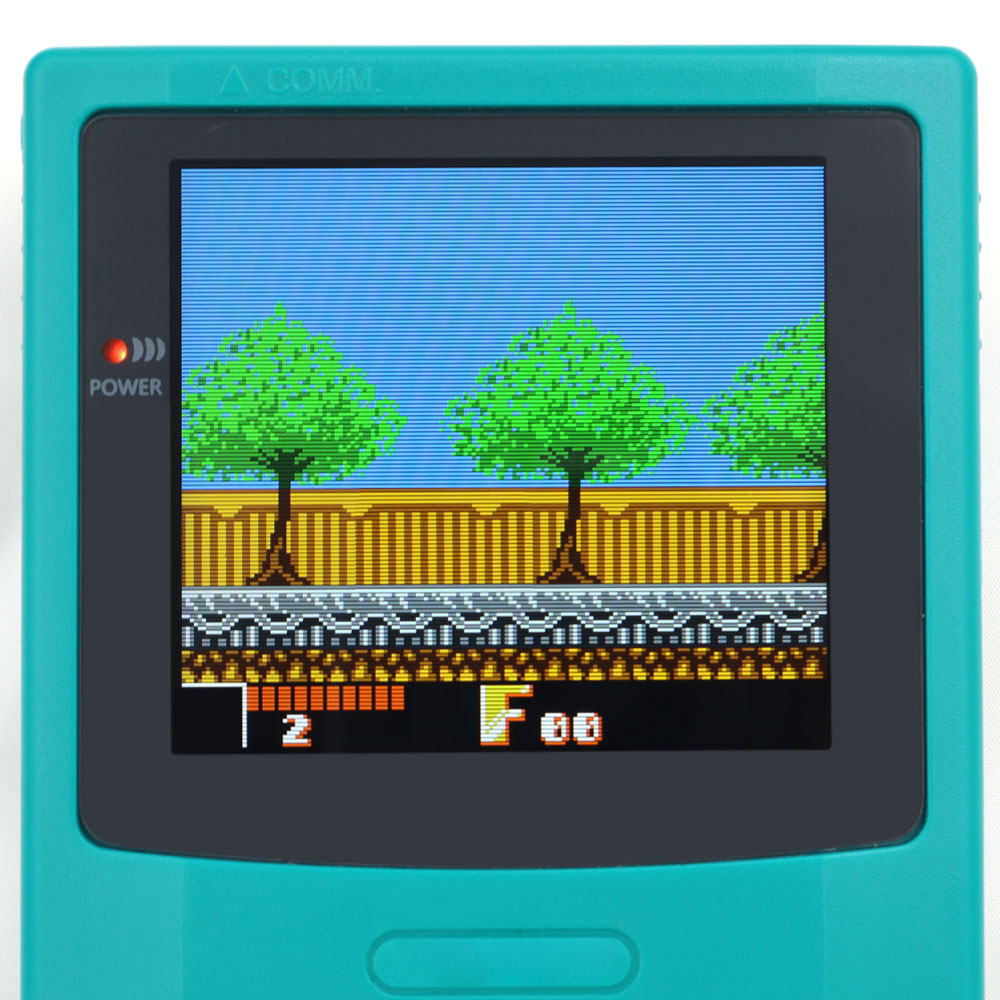

2. 480×432 display resolution. HD LCD. Integer Scaling. 9 pixels to 1 pixel. No any distortions.

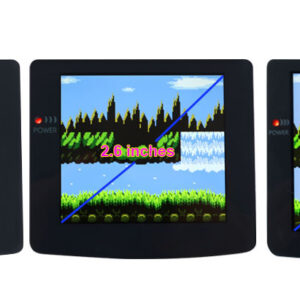

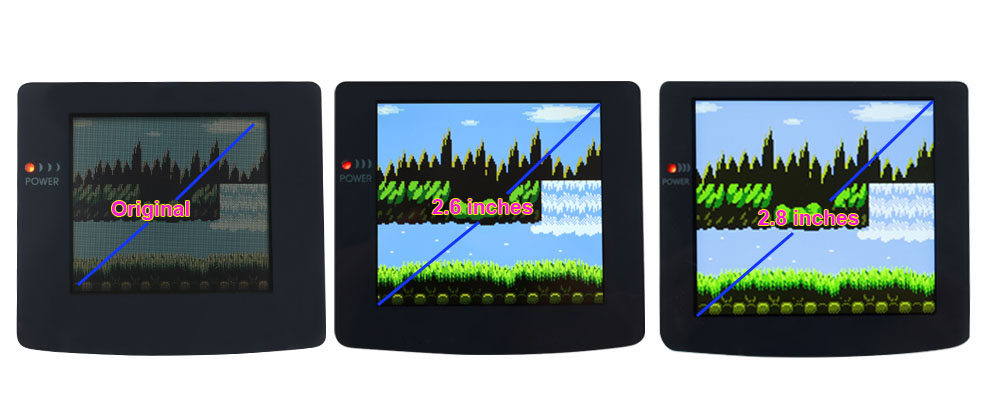

3. 46% larger than the original LCD. The largest IPS LCD for the GBC console.
4. Wide View angle up to 178 degree.

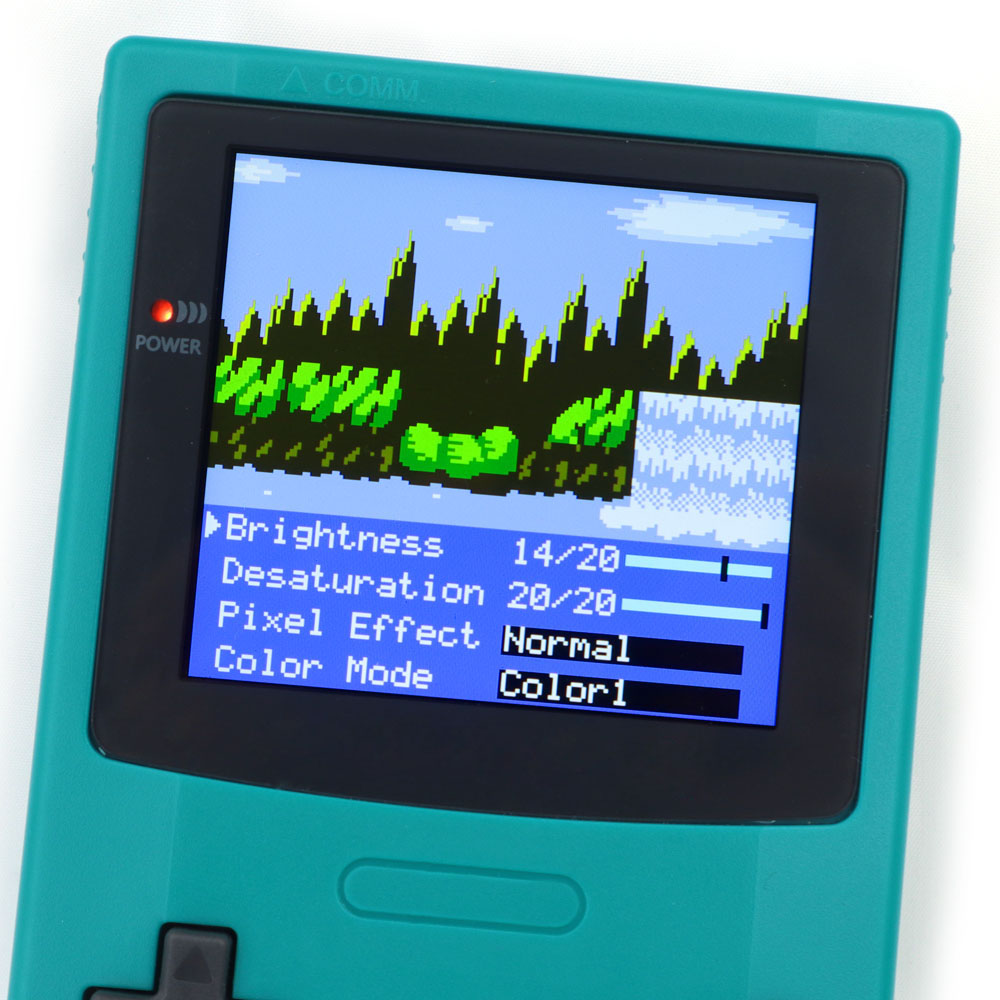

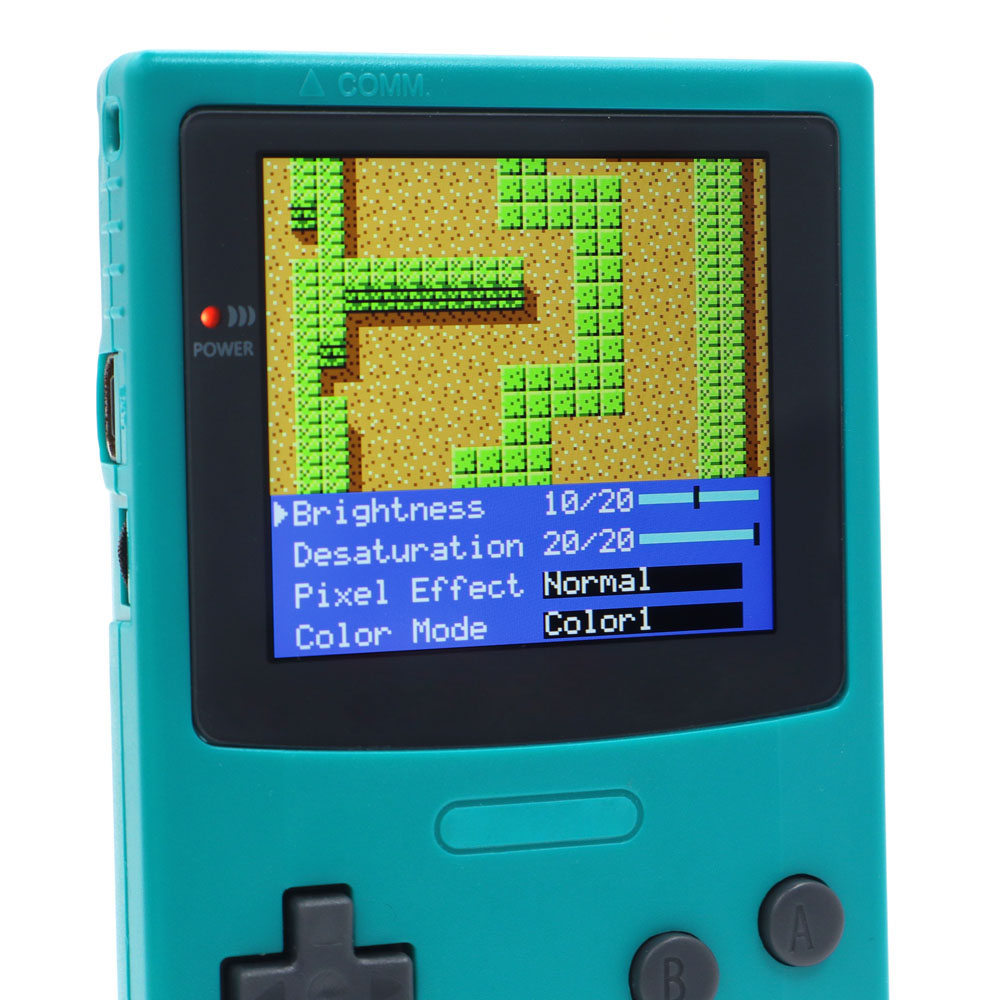

5. Built-in OSD Menu! Support Touch to operate the OSD menu.
6. 20 brightness levels.

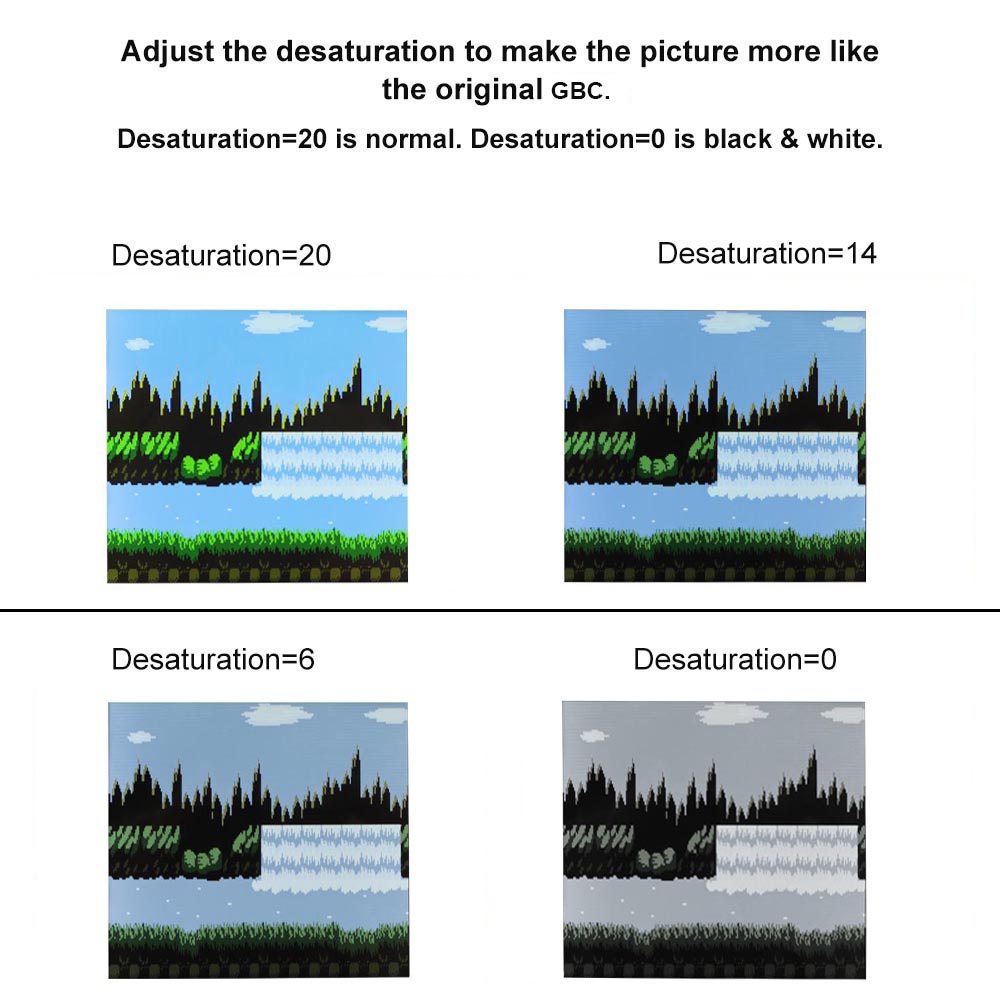

7. Desaturation. This function can make the color of IPS LCD images closer to the original color of GBC games. Note: ‘Desaturation’ can only be adjustable in normal color mode.

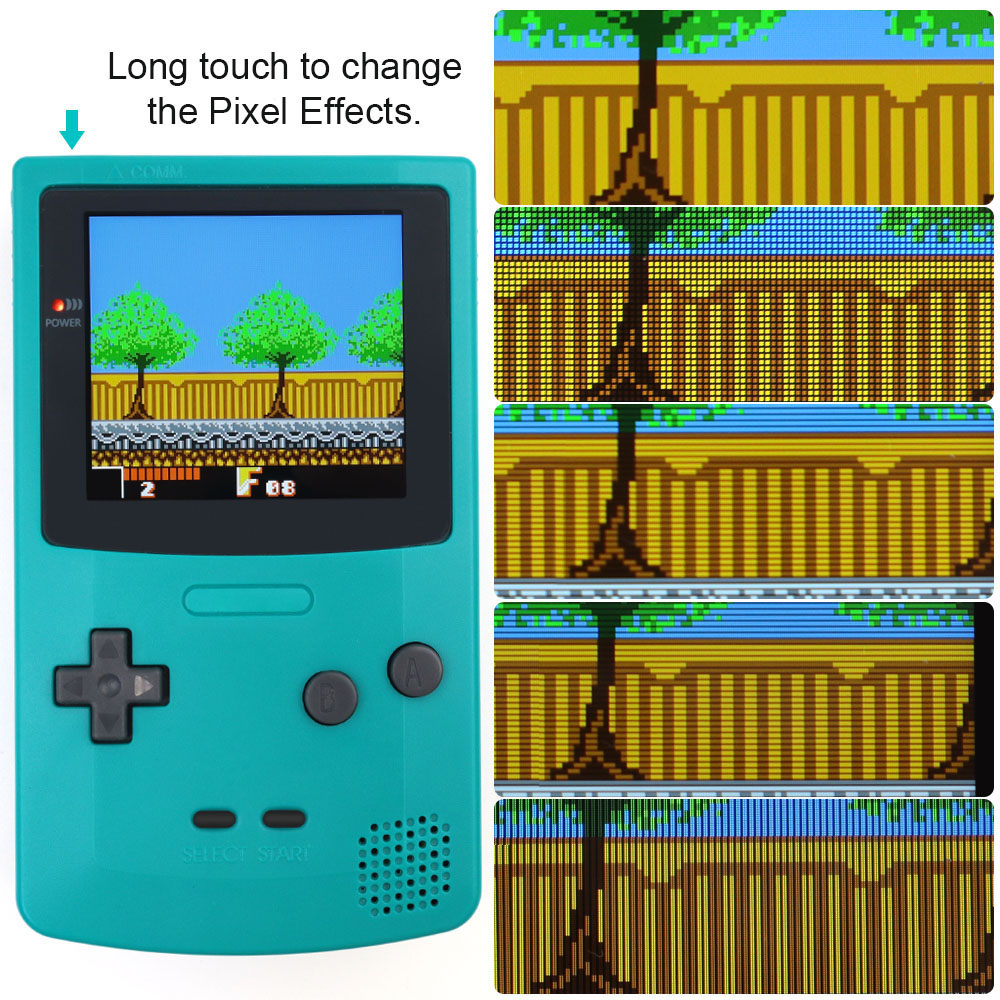

8. Retro Pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2, Scanline 3.

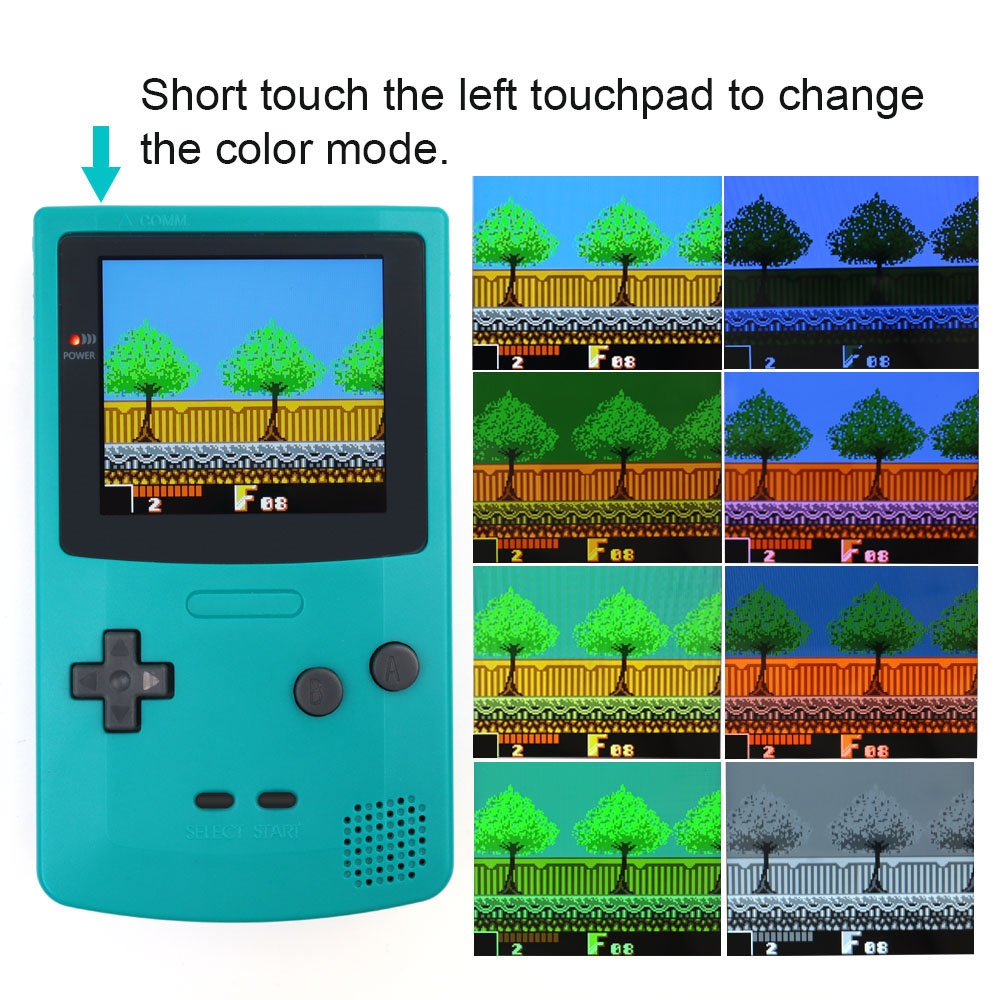

9. Built-in 8 color modes. Each ‘color mode’ can be adjustable.
10. Battery level display On/OFF
11. ‘Touch Shortcut ON/OFF’ function. Set ‘Touch Shortcut’ OFF to avoid auto cycling color modes.
12. FRM On/OFF function (Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

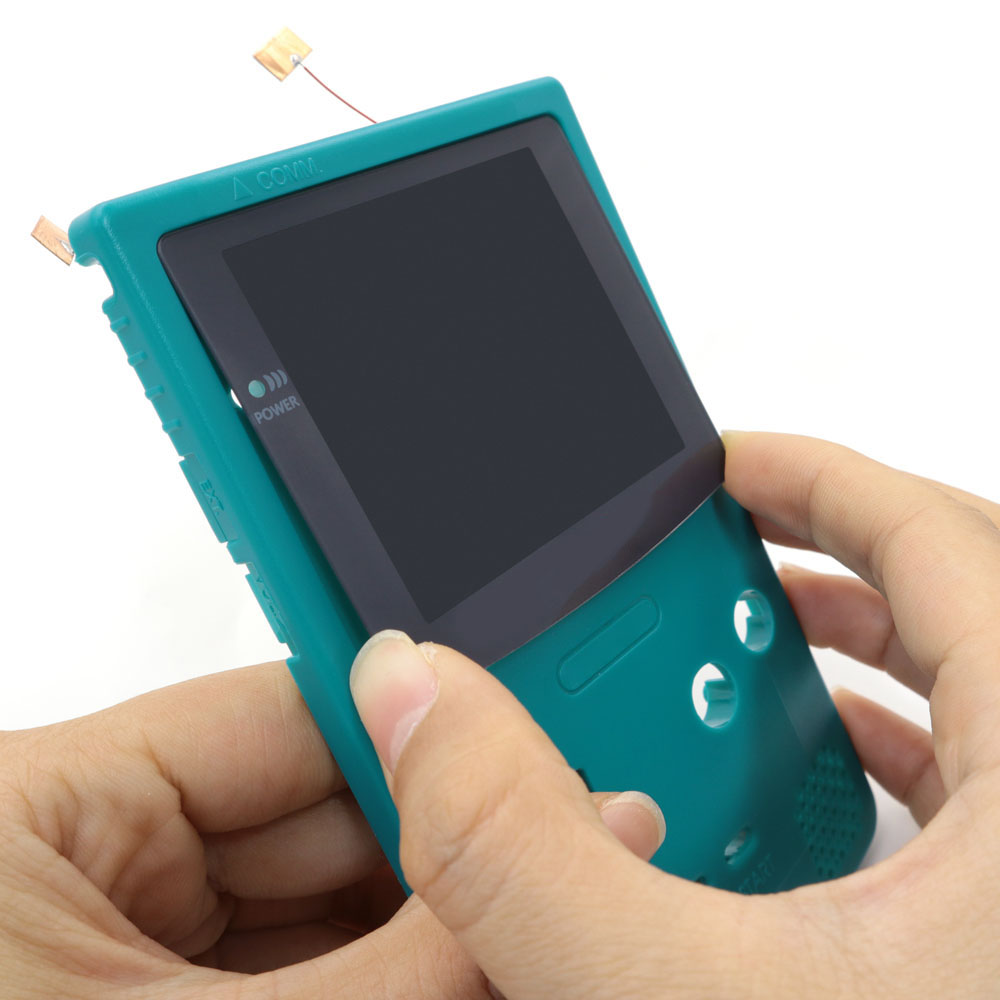

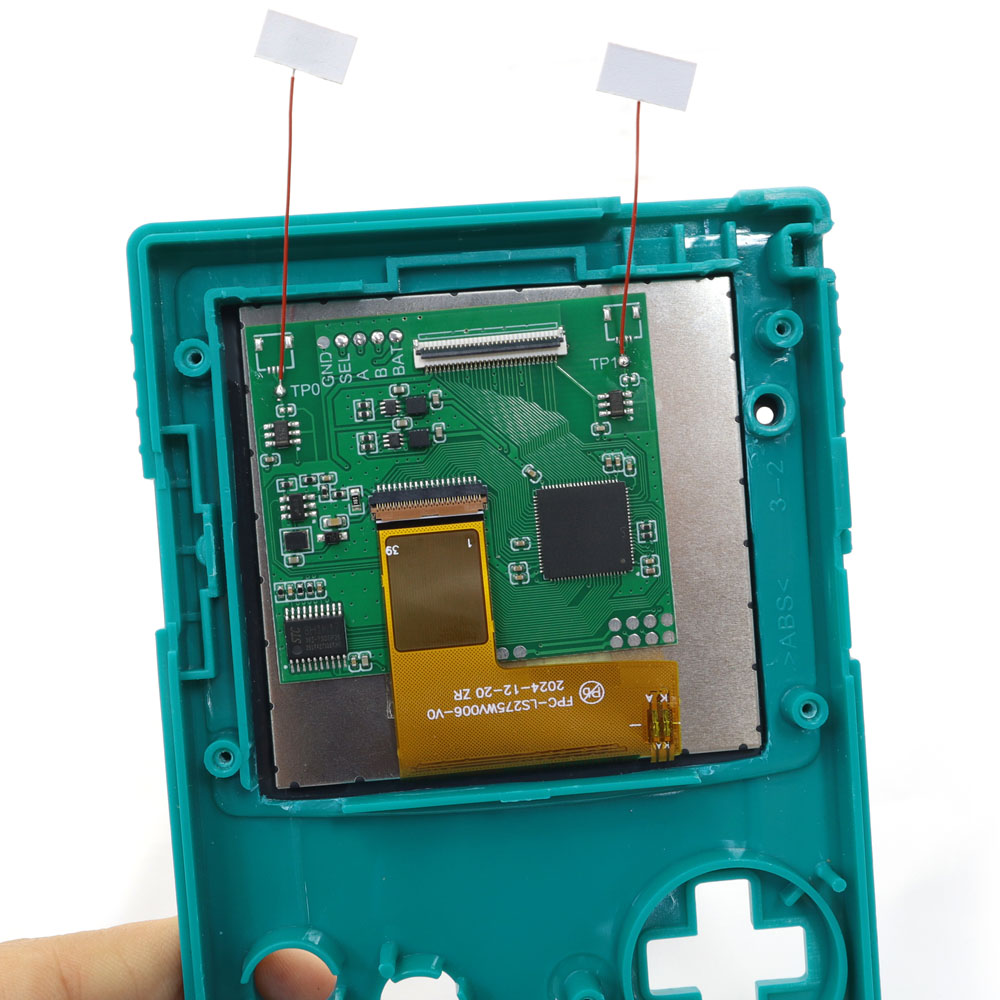

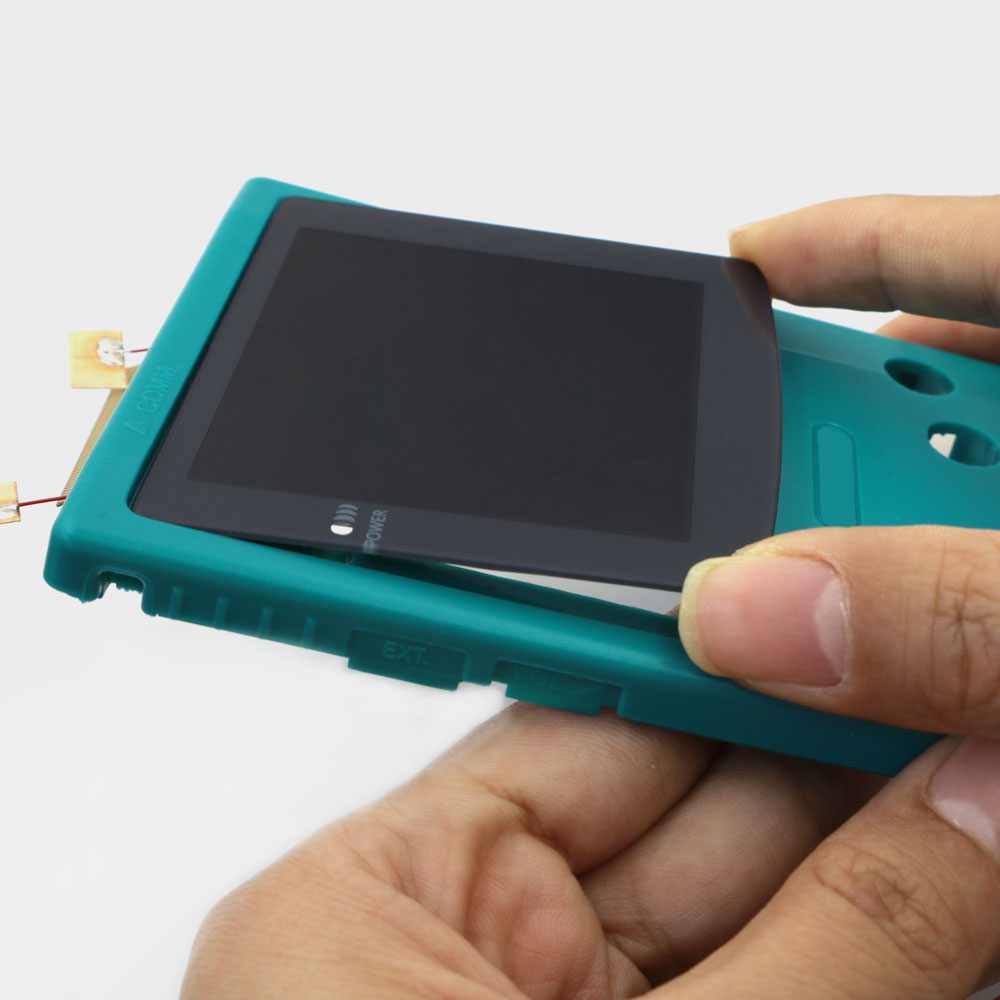

You need to cut the shell case to put in the Laminated IPS LCD if you just buy lcd screen kit. Please contact me after you receive the product. I will send the instruction manual to you.

Or, you can buy the customized shell from this listing if you don’t want to cut the sell case by yourself.

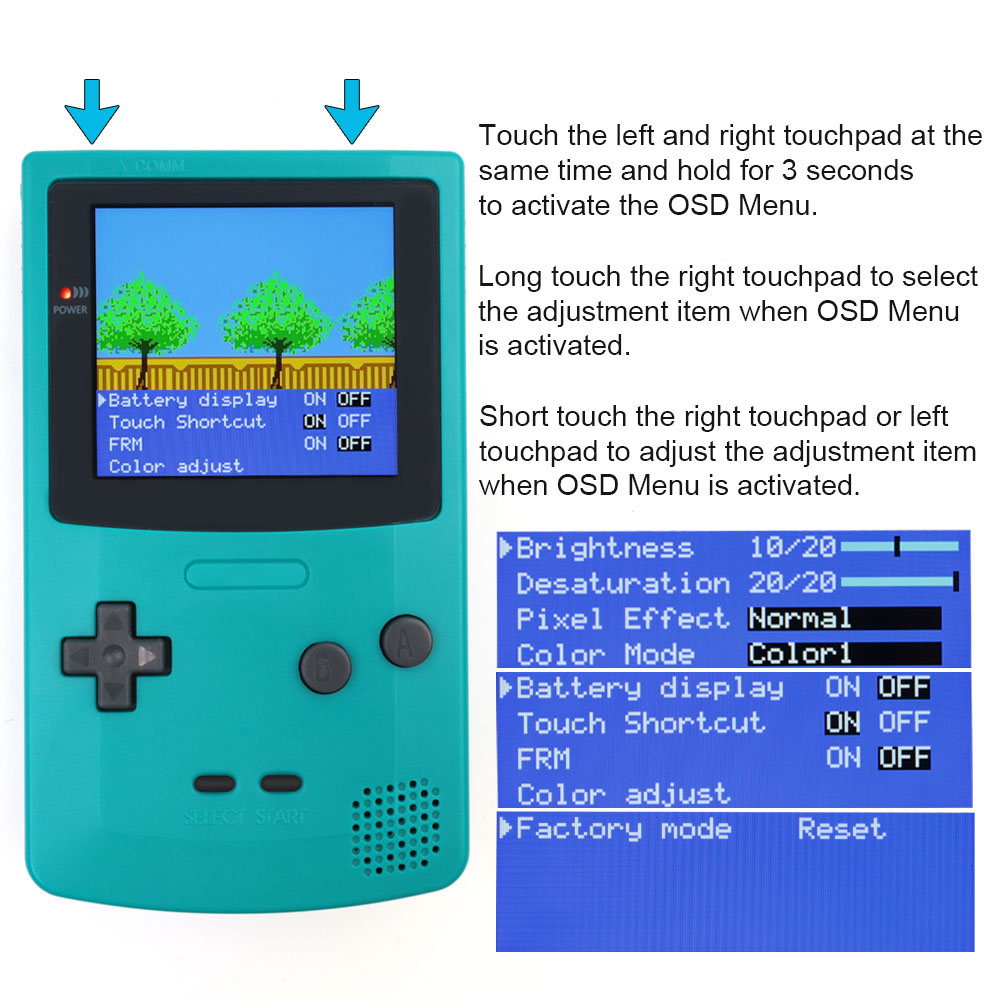

Using touchpad to operate the OSD Menu：

-Touch the two touchpads for 3 seconds to activate the OSD menu.
-Touch and hold the right touchpad for 2 seconds = ‘Enter’ or ‘Exit and save’ when Menu was activated.
-Touch and hold the left touchpad for 2 seconds = ‘Exit without save’ when Menu was activated.
-Short touch the right touchpad = ‘increase’ when Menu was activated.
-Short touch the left touchpad = ‘decrease’ when Menu activated.

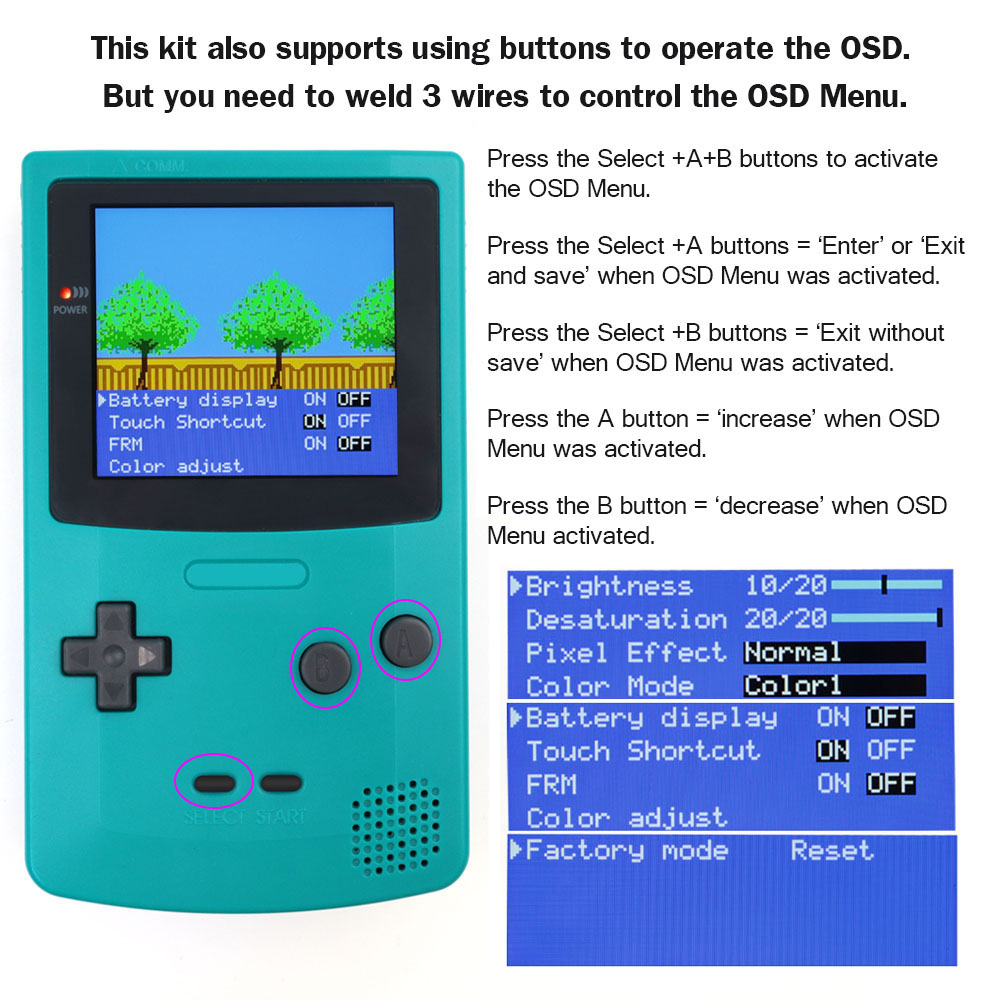

This kit also supports using buttons to operate the OSD. But you need to weld 3 wires to control the OSD Menu:

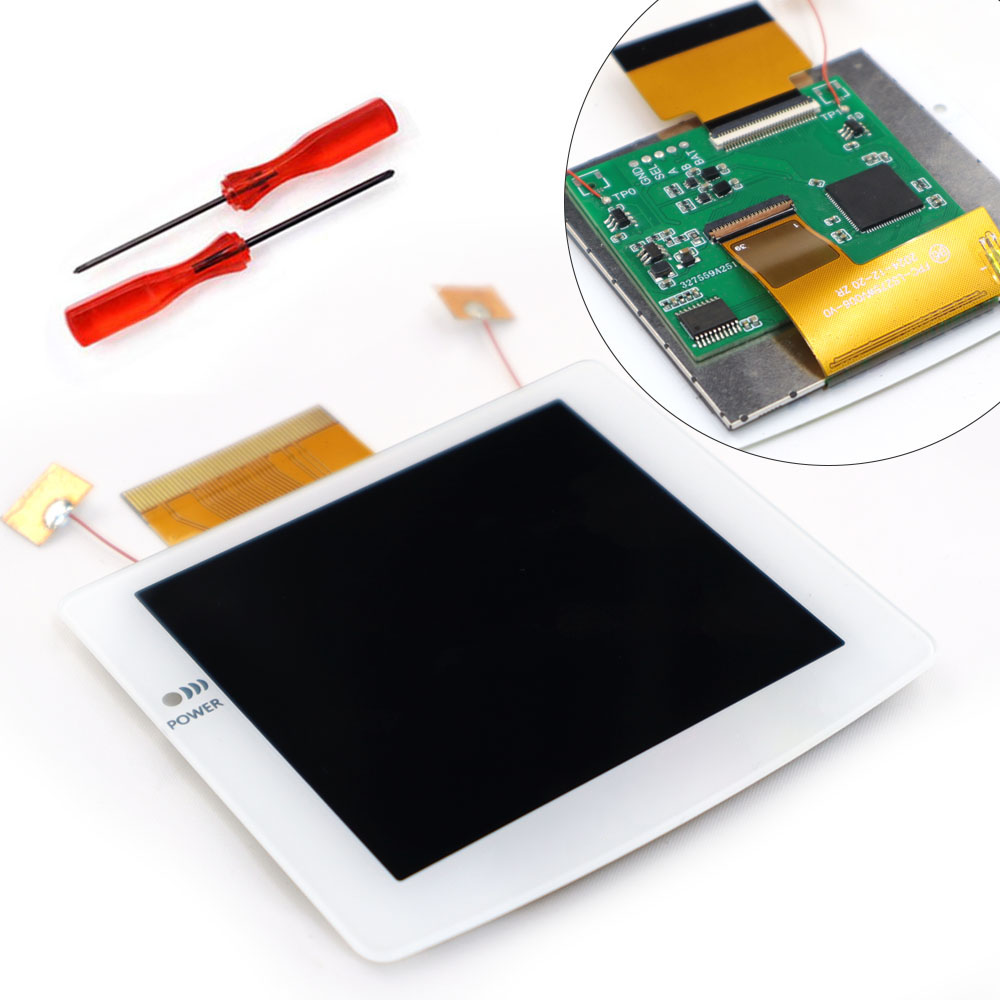

Package included: (only lcd screen kit)

1x IPS LCD screen
1x PCB board
1x flex cable
2x Screwdrivers
4x red wires

Or: (lcd kit with shell case)

1x IPS LCD screen
1x PCB board
1x flex cable
2xScrewdrivers
4x red wires
1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws

 Instructions:
